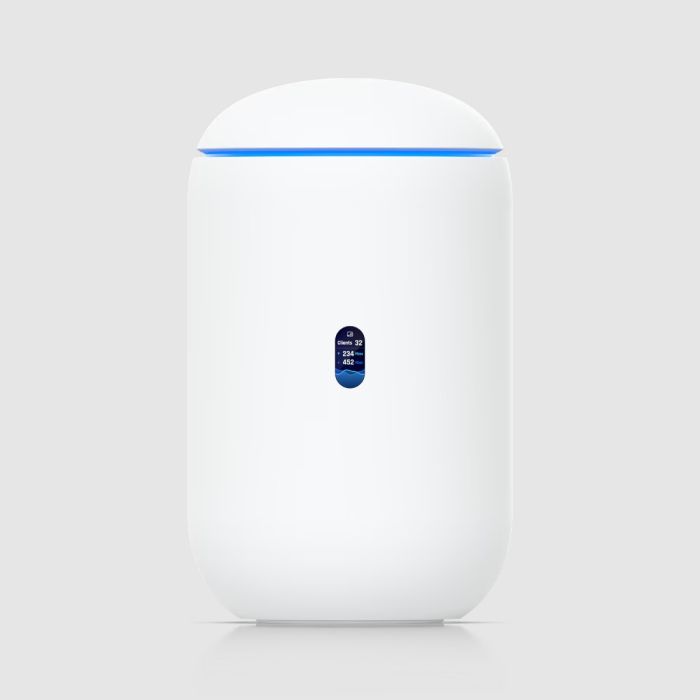

Dream Router 7
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
The Dream Router 7 (UDR 7) is a revolutionary desktop 10G cloud gateway that delivers an all-in-one networking solution for homes and small to medium-sized businesses. It combines a powerful router, integrated WiFi 7 access point, PoE switch, and NVR storage, providing comprehensive UniFi application support in a compact form factor.
Key Features:
- Integrated WiFi 7: Features 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) with 2x2 MIMO on 6 GHz, 5 GHz, and 2.4 GHz bands, offering throughputs up to 5.7 Gbps (6 GHz), 4.3 Gbps (5 GHz), and 688 Mbps (2.4 GHz).
- High-Speed Gateway: Equipped with a 10G SFP+ WAN port and a 2.5 GbE RJ45 WAN port, providing robust internet connectivity.
- Integrated PoE Switch: Includes 4 x 2.5 GbE RJ45 LAN ports, with one supporting PoE output (15.4W budget).
- Comprehensive UniFi Application Support: Runs UniFi Network, Protect, Access, Talk, and Connect, enabling centralized management of your entire UniFi ecosystem.
- Powerful Performance: Manages 30+ UniFi devices and 300+ simultaneous users, driven by a quad-core ARM® Cortex®-A53 1.5 GHz processor and 3 GB of system memory.
- Robust Security & Firewall: Features 2.3 Gbps IDS/IPS throughput, Stateful Firewall, Application-Aware Layer 7 Firewall, DPI & Traffic Identification, Zone-Based Filtering, Content Filtering, Intrusion Prevention (IPS/IDS with 20,000+ signatures via CyberSecure), and Ad Blocking.
- Advanced Routing & VPN: Supports License-Free SD-WAN, Site-to-Site VPN (Site Magic, IPsec, OpenVPN), and multiple VPN Server (Identity Endpoint One-Click VPN, Teleport, WireGuard, OpenVPN, L2TP) and VPN Client (OpenVPN, WireGuard) options.
- Flexible NVR Storage: Includes a pre-installed 64GB microSD card for UniFi Protect NVR storage and an expansion slot for additional microSD capacity.
- Network Management Features: Offers Multi-WAN Load Balancing, Dynamic Routing (OSPF), Advanced QoS, Multicast DNS (mDNS), Advanced NAT, Integrated RADIUS Server, RadSec, UniFi LTE Backup failover, Internet Quality Reporting, Policy-based WAN/VPN Routing, Customizable DHCP Server, IPv6 ISP Support, and IGMP Proxy.
- Compact Design: Desktop form factor with dimensions of Ø110 x 184.1 mm (Ø4.3 x 7.3").
- Informative Display: Features a 0.96" status LCM display.
- Durable & Compliant: Built with a polycarbonate enclosure, NDAA Compliant, and certified by CE, FCC, IC.
- Environmental Resilience: Operates in ambient temperatures from -10 to 40° C (14 to 104° F) and 5 to 95% noncondensing humidity.
- Application Requirements: Requires UniFi Network Version 9.0.108 and later.
