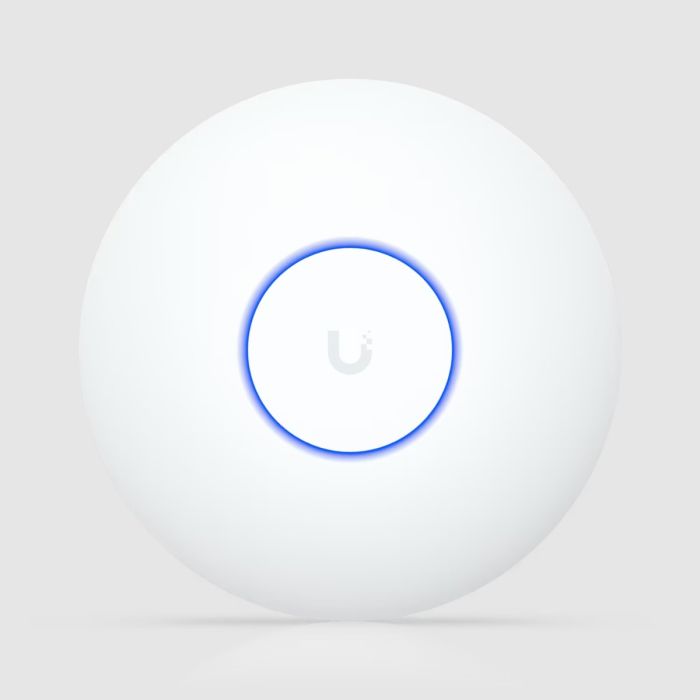

U7 Lite
Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.
The U7 Lite is a compact and efficient WiFi 7 Access Point, designed to deliver high-speed wireless connectivity in various environments. This ceiling-mounted AP provides excellent performance with its advanced features and streamlined design, making it an ideal choice for homes and small to medium-sized businesses seeking next-generation WiFi.
Experience the power of WiFi 7 (802.11be) standard with 4 spatial streams, supporting impressive data rates up to 4.3 Gbps on the 5 GHz band (BW240) and 688 Mbps on 2.4 GHz (BW40). Designed for effective coverage, the U7 Lite can cover an area of 115 m² (1,250 ft²) and support over 200 clients, providing reliable connectivity for numerous devices. It features a robust 2.5 GbE uplink, ensuring ample backhaul for high-speed wireless traffic.
Advanced radio management features include Wireless Meshing, Band Steering, 802.11v BSS Transition Management, 802.11r Fast Roaming, and 82.11k Radio Resource Management (RRM), optimizing client connectivity and network efficiency. For guest access, the U7 Lite supports Passpoint (Hotspot 2.0) and a comprehensive Captive Hotspot Portal with custom branding, voucher, payment, and password authentication options. Enhanced security features like Guest Network Isolation, Private Pre-Shared Key (PPSK), WiFi Speed Limiting, Client Device Isolation, WiFi Schedules, RADIUS over TLS (RadSec), and Dynamic RADIUS-assigned VLAN provide granular control over your network.
The U7 Lite is built for versatile installation, supporting both ceiling and wall mounting with a Lite Mount included. It is powered by PoE, with a maximum power consumption of 13W. Its durable UV-stabilized polycarbonate enclosure and mount ensure reliability in an ambient operating temperature range of -30 to 40° C (-22 to 104° F). This device is NDAA Compliant and holds certifications from CE, FCC, IC, and Anatel. Management requires UniFi Network version 9.0.114 or later, and mobile app versions iOS 10.20.2+ or Android 10.21.7+.
Key Features:
- WiFi Standard: WiFi 7 (802.11be) for next-generation performance.
- Spatial Streams: 4 spatial streams for efficient data handling.
- Compact Design: Dimensions of Ø171.5 x 33 mm (Ø6.8 x 1.3").
- Extensive Coverage: Covers 115 m² (1,250 ft²) and supports 200+ clients.
- High Data Rates: Up to 4.3 Gbps (5 GHz) and 688 Mbps (2.4 GHz).
- 2.5 GbE Uplink: Ensures high-speed network connectivity.
- Flexible Mounting: Supports Ceiling and Wall mounting (Lite Mount included).
- PoE Power: Simplifies installation with Power over Ethernet.
- Advanced Radio Management: Features Wireless Meshing, Band Steering, Fast Roaming (802.11r), BSS Transition Management (802.11v), and RRM (802.11k).
- Comprehensive Guest Management: Includes Passpoint (Hotspot 2.0) and a customizable Captive Hotspot Portal.
- Enhanced Security: Offers Guest Network Isolation, PPSK, WiFi Speed Limiting, Client Device Isolation, WiFi Schedules, RadSec, and Dynamic RADIUS-assigned VLAN.
- Durable Design: UV-stabilized polycarbonate enclosure and mount.
- Wide Operating Temperature: Functions reliably from -30 to 40° C (-22 to 104° F).
- NDAA Compliant: Meets high security and supply chain standards.
- Certifications: CE, FCC, IC, Anatel certified.
- Application Requirements: Managed by UniFi Network version 9.0.114+ (iOS 10.20.2+ / Android 10.21.7+ for mobile app).
