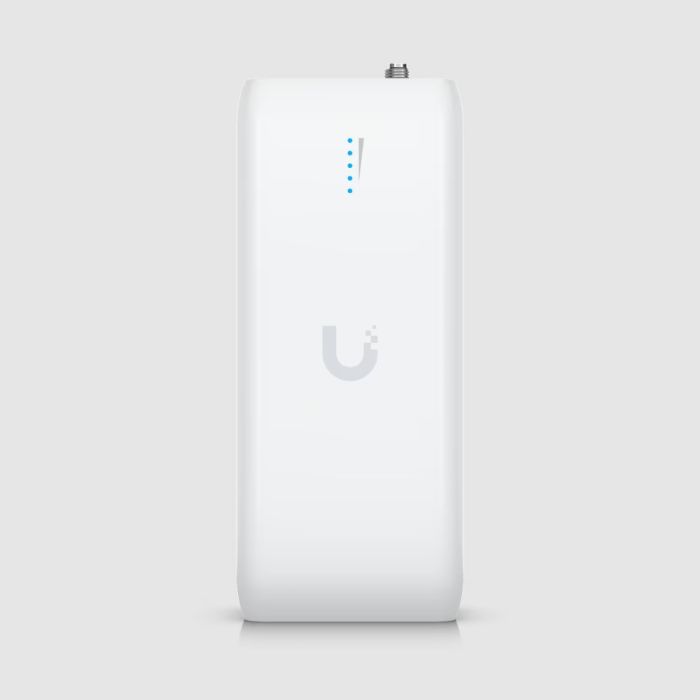

Device Bridge Pro
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
The Device Bridge Pro is a robust 5 GHz wireless bridge designed to extend network connectivity over significant distances or seamlessly integrate into your existing UniFi WiFi system. This device is engineered for reliable outdoor performance, capable of bridging connections across 5+ km, making it ideal for remote buildings, surveillance points, or extending internet access where cabling is impractical.
Note:
This device cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server. A PoE adapter is included, and PoE+ input is required for PoE passthrough functionality.
Key Features:
- Long-Range Wireless Bridge: Establishes reliable 5 GHz wireless links over distances greater than 5 km (3.1 mi), perfect for point-to-point applications.
- UniFi WiFi Uplink: Provides seamless wireless uplink capabilities to your UniFi WiFi network.
- PoE Passthrough: Features PoE output, requiring PoE+ input, to power a secondary device (e.g., a camera or another AP) at the remote end.
- High Performance: Utilizes WiFi 5 (802.11ac) with 2 spatial streams and 2x2 MIMO, achieving a maximum data rate of 867 Mbps (BW80) on the 5 GHz band.
- Integrated High-Gain Antenna: Equipped with an internal 5 GHz antenna offering 19 dBi gain for extended range and strong signal.
- Robust & Weatherproof Design: Boasts an IPX6 weatherproofing rating, UV-resistant polycarbonate enclosure, and stainless steel mount, ensuring durability in harsh outdoor conditions.
- Flexible Mounting: Supports both wall and pole mounting locations, with pole mounting hardware included (supports 0.8–2.1" diameter poles).
- Wide Operating Temperature: Designed to operate reliably in extreme temperatures from -40 to 60° C (-40 to 140° F).
- Gigabit Ethernet Ports: Features two GbE RJ45 ports for versatile network connections.
- Power over Ethernet (PoE): Powered by PoE, with a 48V, 0.32A PoE adapter included.
- NDAA Compliant: Meets stringent NDAA compliance standards.
- Status Indicators: LEDs for system power, Ethernet activity, and four signal strength indicators for easy alignment.
