Used Very Good Icom IC-7200 Portable Radio, HF/6M, 100W with MB-116 Handles S/N:0206933

No free freight
SKU
ZUS-5125
$649.95
Add to Wish List

Sold Out!

Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

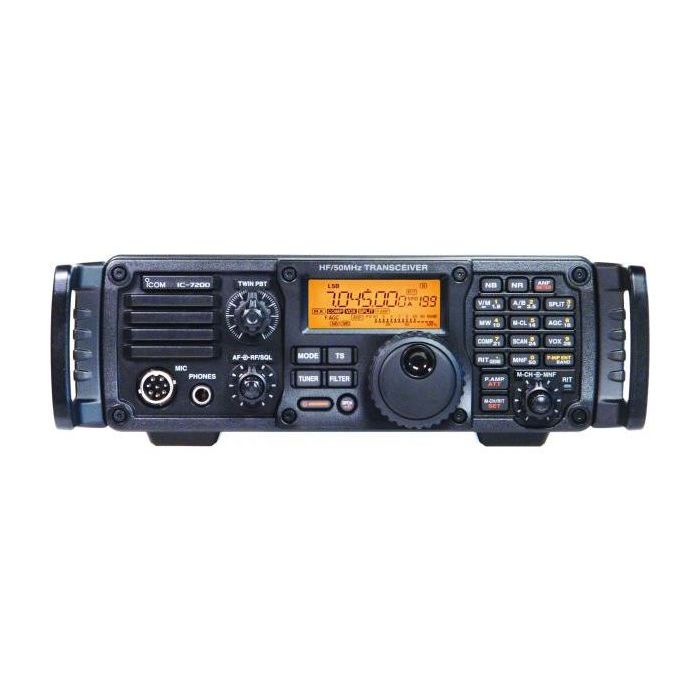

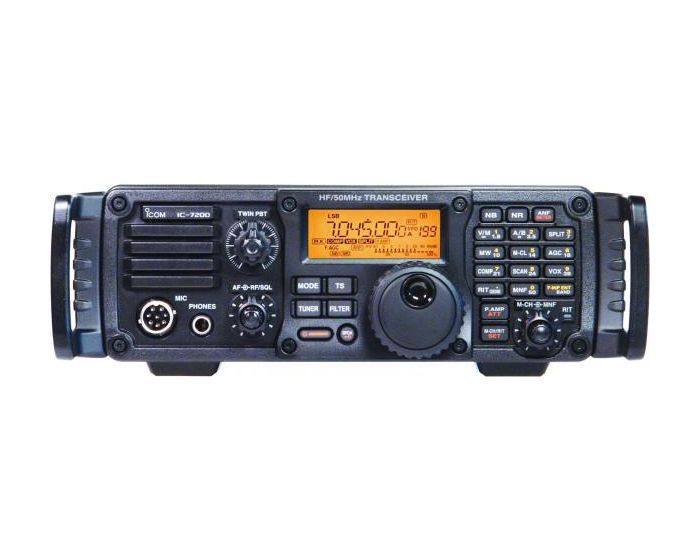

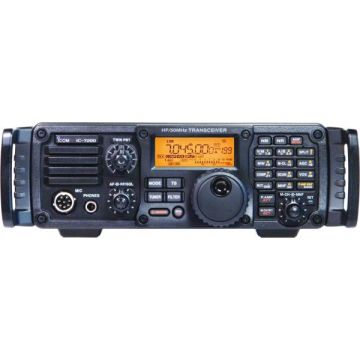

Used Very Good Icom IC-7200 Portable Radio, HF/6M, 100W with MB-116 Handles S/N:0206933. This radio was tested and worked as designed. Box is in great shape and includes the MB-116 handles still in the box.

The Icom IC-7200 is a 100W HF/50MHz transceiver that operates on USB, LSB, CW, RTTY (FSK), AM and requires 22A at 100W. The IC7200 will output 100W on SSB, CW, RTTY and 25W carrier power on AM. The 7200 receieves from 0.030-60.00 MHZ. The Icom IC-7200 has several features including the latest IF DSP technology, AGC loop management, a digital IF filter, digital twin PBT, digital noise reduction, digital noise blanker and a USB port for PC control. Known for its tough design, the IC-7200 includes a rear bumper to protect various connections on the rear panel and waterproof protection technologies used in Icom's marine radios are applied to the buttons and knobs on the front panel to protect against water intrusion.

Frequency coverage

RX

  • 0.030– 60.000 MHz*1

TX

  • 1.800– 1.999 MHz
  • 3.500– 3.999 MHz
  • 5.3305, 5.3465, 5.3665, 5.3715, 5.4035 MHz*2
  • 7.000– 7.300 MHz
  • 10.100–10.150 MHz
  • 14.000– 14.350 MHz
  • 18.068–18.168 MHz
  • 21.000– 21.450 MHz
  • 24.890–24.990 MHz
  • 28.000– 29.700 MHz
  • 50.000–54.000 MHz

*1 Guaranteed range: 0.5–29.7 and 50–54.000 MHz..
*2 USB only

Mode

  • USB, LSB, CW, RTTY (FSK), AM

Number of channels

  • 201 Ch. (199 regular, 2 scan edges)

Antenna connector

  • SO-239 (50Ω)

Power supply requirement:

  • 13.8V DC ±15% (negative ground)

Operating Temperature range

  • -10°C to +60°C; +14°F to +140°F

Frequency stability: Less than ±0.5ppm
Frequency resolution: 1Hz
Power consumption

  • Tx Max. power: 22.0A
  • Max. audio: 2.0A
  • Rx Stand-by: 1.3A

Dimensions (projections not included): 9 1⁄2 x 3 5⁄16 x 11 1⁄16 in.
Weight (approx.): 5.5kg; 12.1 lb

Transmitter
Output power

  • SSB, CW, RTTY
    • 2–100W
  • AM
    • 1-25W*
    • *Carrier power.

Modulation system

  • SSB: Digital PSN modulation
  • AM: Digital low power modulation

Spurious emission
(unwanted emission)

  • Less than -50dB (HF bands)
  • Less than -63dB (50 MHz band)

Carrier suppression: More than 50dB
Unwanted sideband: More than 50dB
Microphone connector: 8-pin connector (600Ω)

Receiver
Receive system: Triple conversion super-heterodyne

Intermediate frequencies

  • 64.455 MHz
  • 455 MHz
  • 15.625 kHz

All stated specifications are subject to change without notice or obligation.
