Yaesu DC PSU 13.8V 30A 120V AC Only

SKU
ZYS-FP-1030A
Rating:
92 % of 100
$229.95
Add to Wish List
Ready to Ship!

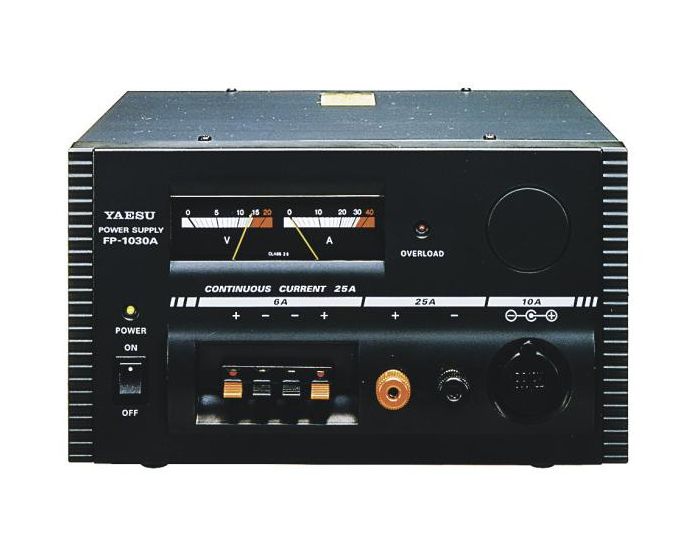

Yaesu DC PSU 13.8V 30A 120V AC Only - FP-1030A

The Yaesu FP-1030A is a regulated DC power supply designed for DC-powered radio equipment, delivering a stable 13.8 Volts DC at up to 25 Amps. It features overload protection with a current foldback circuit and an indicator for overload conditions. Specifically crafted for radio communication equipment, it offers high immunity to Radio Frequency Interference (RFI) for reliable operation. The power supply provides multiple DC output connections, including snap-in and screw-on terminals, along with a cigar-lighter type DC output jack for added versatility in connecting radio equipment. A robust solution, the Yaesu FP-1030A ensures efficient power support for various radio applications.

Purchase your Yaesu DC PSU 13.8V 30A 120V AC Only - FP-1030A from GigaParts today.

UPC:  788026130207

Overload Protection
A current foldback circuit is utilized to prevent damage to the unit from excessive current drain. An "Overload" indicator becomes illuminated when an overload condition exists.

High RFI lmmunity
The FP-1030A is specifically designed for use with radio communication equipment. It therefore includes extensive filtering to provide high immunity from erratic operation which might be caused by Radio Frequency interference (RFl).

Multiple DC Output connections
Besides the two pairs of (6A) snap-in DC connections and the (25A) screw-on DC outputerminal, the FP-1030A features a cigar-lighter type DC output jack for radio equipment equipped with a hatching cigarlighter plug.

Voltage Type: AC 120V
Rated Voltage Range: +-7%
Output Voltage: 13.8V DC (F|XED)
Output Current: 25 A CONTINUOUS
Overload Protection: 27A
Ripple Voltage: BETTER THAN 3mVp-p AT 13.8V, 25 A
Cooling System: THERMOSTATICALLY-CONTROLLED COOLING FAN
Circuit Type: LINEAR SERIES
AC Input Fuse: 8A
Weight: 9.5 kg (20.9 LBS)
Dimensions: 250 (W) x 150 (H) x 240 (D) mm (9.8" x 5.9" x 9.5")
