LOG PERIODIC ANTENNAS: PROVEN SUPERIORITY Antennas that are super performers designed for single band use, yielding great gain, front to back ratio, and SWR with no tuning required. Just power up and make your contact.

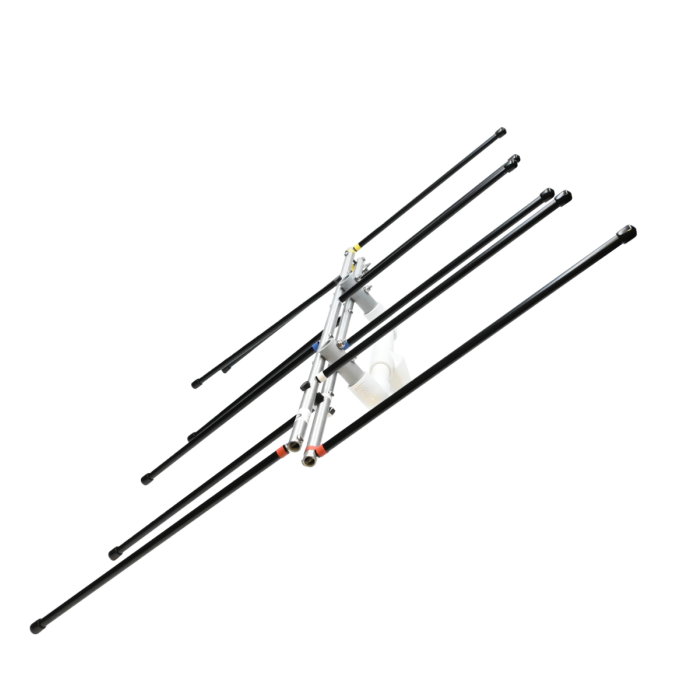

Whether you are operating portable or permanent, you will find the convenience of a 1.25m Log Periodic antenna to be an incredibly convenient and powerful tool in your ham operations. Having the 1.25m band in a compact, two-foot long package, without having to bother with a duplexer is just a real lifesaver to most operating environments. From bouncing signals off of satellites to working simplex two or three counties aways – you cannot go wrong with the Elk 220L6! All Elk 220L6 models come with a handle for handheld operation, making this antenna perfectly set up for satellite, direction finding, and very portable operations.
The feed on all Elk Antennas is from the front of the antenna. Where you connect the feedline is where you point the antenna.
Purchase your Elk 1.25M Directional Log Periodic Antenna at GigaParts today!
Specifications
Weight: 1.4 lbs
Dimensions: 24.5" x 3" x 3"
Boom Length: 24"
Connector Type: UHF Connector
Boom Coating: Uncoated Aluminum
Gain: 7.3 dBd (9.5dBi)
Number of elements: 6
Max Power: 150W
Front-to-Back Ratio: 28+ db
SWR: 1:1 222-225MHz
INSTALLATION + USAGE NOTES:
If used in a permanent installation, use some type of locking compound on the boomthreads.
Use all parts of the band without retuning.
Easy polarity change by twisting mounting assembly.
Makes great RV and portable antenna because of short assembly-disassembly time and light weight.
Super fast assembly, color coded threaded elements screw onto color coded boom. Just match colors.
