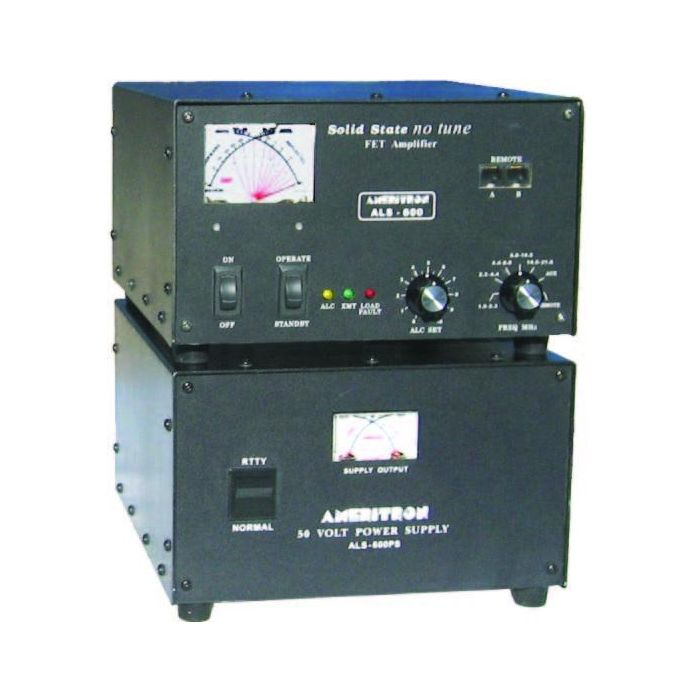

600W Output Solid State Amplifier w /Power Supply on 100/110/120V for US
No tuning, no fuss, no worries -- just turn on and operate ... includes AC power supply, 600 Watts output, continuous 1.5-22 MHz coverage, instant bandswitching, no warm up, no tubes to baby, fully SWR protected, extremely quiet, very compact
- Ameritron's revolutionary ALS-600 is amateur radio's ONLY linear amplifier that uses four rugged TMOS RF power FETs -- gives unequaled no tune solid state performance.
- Includes Ameritron's no tune FET Amplifier and a 120/220 VAC, 50/60 Hz AC power supply for home operation.
- Instant bandswitching, no tuning, no warm up
- Output Power -- 600 Watts PEP, 500 Watts CW
- Continuous Coverage -- 1.5 to 22 MHz; 10/12 Meters with easy-to-install optional kit, $29.95 plus s/h
- SWR Protection -- prevents amplifier damage if you switch to wrong band, use wrong antenna or have high SWR
- Over Power Protection -- if output forward power or reflected power exceeds safe level, output power is automatically reduced to prevent amplifier damage by controlling ALC to exciter.
- Extremely quiet -- low speed, low volume fan is so quiet you'll hardly know it's there, unlike noisy blowers used in other amps.
- Very Compact -- 6 x 9 1/2 x 12 inch amplifier takes up less desktop space than your transceiver and weighs 12 1/2 pounds.
- Illuminated Cross-Needle SWR/Wattmeter -- lets you read SWR, forward and reflected peak power simultaneously
- Operate/Standby Switch -- lets you run "barefoot", but you can instantly switch to full power if you need it.
- Front Panel ALC Control -- exclusive Ameritron feature -- convenient front panel control lets you adjust your output power.
- Transmit, ALC SWR LED indicators -- keeps you informed.
- 12 VDC output jack -- lets you power low current accessories.
- Separate ALS-600PS power supply (included) can be placed conveniently out of the way and plugged into your nearest 120 VAC outlet -- no special wiring needed.
- Made in USA.
- enjoy 600 Watts of no tune solid state power. Call your favorite dealer for your best price, order ALS-600 with power supply.
- Massive choke input filter greatly improves voltage regulations nd reduces peak AC line current.
- Ameritron's exclusive Multi-Voltage Power Transformer lets you compensate for stressful high line voltage and performance robbing low line voltage.
- Step Start Inrush Protection stops damaging inrush currents and extends life of power supply components.
- Illuminated Cross-Needle Meter monitors voltage and current of 50 VDC line.
- Extremely quiet fan.
- Very Compact 6 x 9 1/2 x 12 inches -- can be placed conveniently out-of-way.
- Wired for 120 VAC, supplies 50 VDC at 25 amps to ALS-600 amplifier.
- Also use on 100-130 VAC and 220-250 VAC, 50/60 Hz.
- Draws less than 12 amps at 100 VAC and less than 6 amps at 230 VAC.
- Includes prewired cable to plugin to ALS-600 Amplifier.
