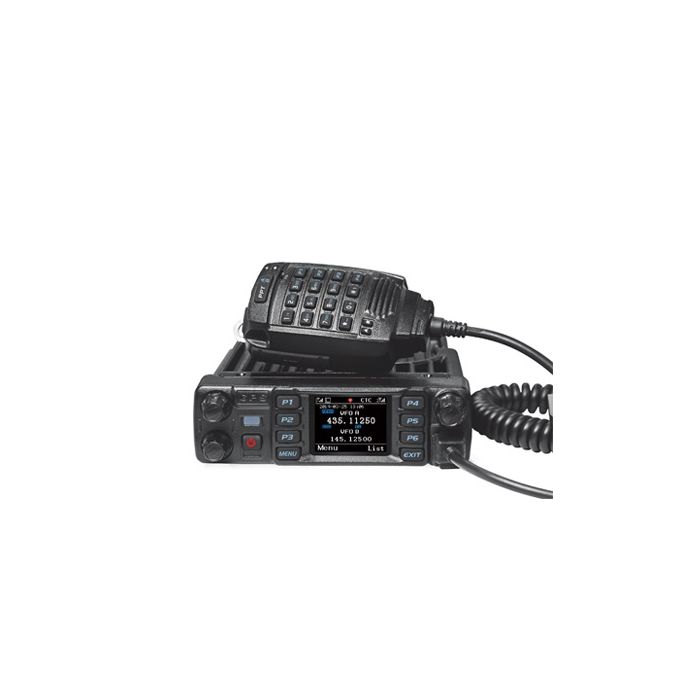

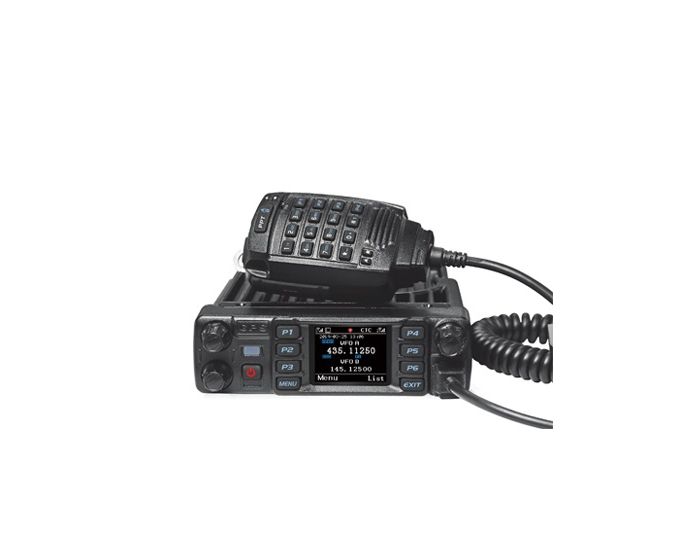

Anytone AT-D578UV III PRO VHF/UHF DMR Mobile Transceiver
- Working Mode: Full duplex on UU, UV, VV,VU. Dual RX(Analog+DMR or Analog+Analog)
- True-2-slot: Provide 2-slot communication which allows for 2 talk paths on 1 frequency; ETSI DMR Tier I and II compliant
- Power: VHF 60W/25W/10W; UHF 50W/25W/10W
- Auto-senses digital or analog reception
- 4000 channels + VFO; 10,000 Talk groups with 200,000 digital contacts
- Support Contact Manager
- Display: 1.77 inch TFT color LCD, dual display; dual PA; dual PTT
- Bandwidth: 12.5K/25K (Analog); 12.5K (DMR);
- Weather Alerts
- VOX Function; Digital Recording and Play
- DTMF/2TONE/5TONE encode and decode
- AES256 digital encryption; Zone selection
- SMS via keyboard
- Crossband repeter function
- Ranging function between radios with GPS
- Roaming function; Talker alias function
- Emergency alarm (with GPS data transmission)
- IP connect to Motorola Repeater
- Duplexer Talk(Optional)
- Call interrupt(Optional)
GENERAL
Frequency Range: 136-174MHz (V) , 400-490MHz (U)
Channel Capacity: 4000 channels
Channel Spacing: 25KHz (Wide Band) 12.5KHz (Narrow Band)
Phase-locked Step: 5KHz, 6.25KHz
Operating Voltage: 13.8V DC ±20%
Frequency Stability: ±2.0ppm
Operating Temperature: -20℃~ +55℃
TRANSMITTER
Power Output
VHF: 50/25/10/5W
UHF: 45/25/10/5W
Modulation limit
±5.0KHz@25KHz (Wide Band)
±2.5KHz@12.5KHz (Narrow Band)
Adjacent Channel Power
≥70dB (Wide Band)
≥60dB (Narrow Band)
Hum & Noise
≥40dB (Wide Band)
≥36dB (Narrow Band)
Spurious Emission
≥70dBc (Wide Band)
≥70dBc (Narrow Band)
4FSK Digital Modulation
12.5KHz（data）7K60FXD
12.5KHz（data+voice）7K60FXE
Audio Distortion: ≤5%
Error rate: ≤3%
RECEIVER
Sensitivity (12dB SINAD)
≤0.25μV (Wide Band)
≤0.35μV (Narrow Band)
Digital Sensitivity
0.3uV/-117.4dBm (BER 5%)
0.7uV/-110dBm (BER 1%)
Adjacent Channel Digital Sensitivity Selectivity
≥70dB (Wide Band)
≥60dB (Narrow Band)
Spurious Emission
≤-57dB (Wide Band)
≤-57dB (Narrow Band)
Spurious Rejection
≥70dB (Wide Band)
≥70dB (Narrow Band)
Blocking: 84db
Hum & Noise
≥45dB (Wide Band)
≥40dB (Narrow Band)
Audio Distortion: ≤5%
Audio Power Output: ≥2W
AnyTone AT-D578UV III Pro Radio
Microphone
Mobile Mounting Bracket
DC Power Cable w/Fuse Holder
USB Programming Cable
Spare Fuses
Screws and Washers
User Manual
