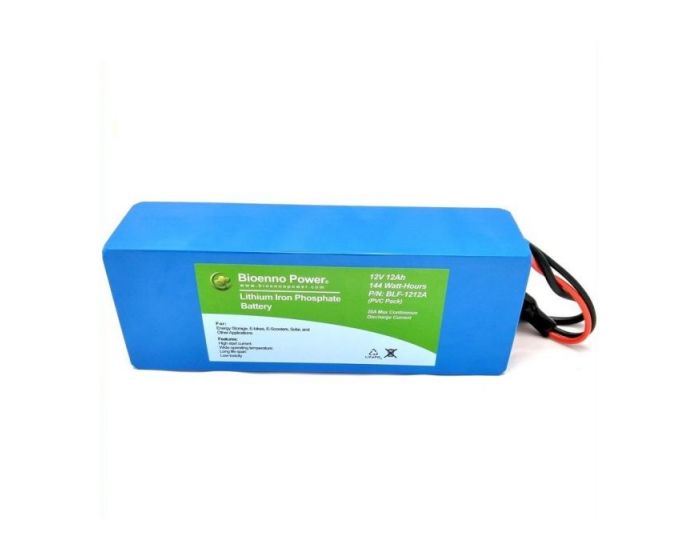

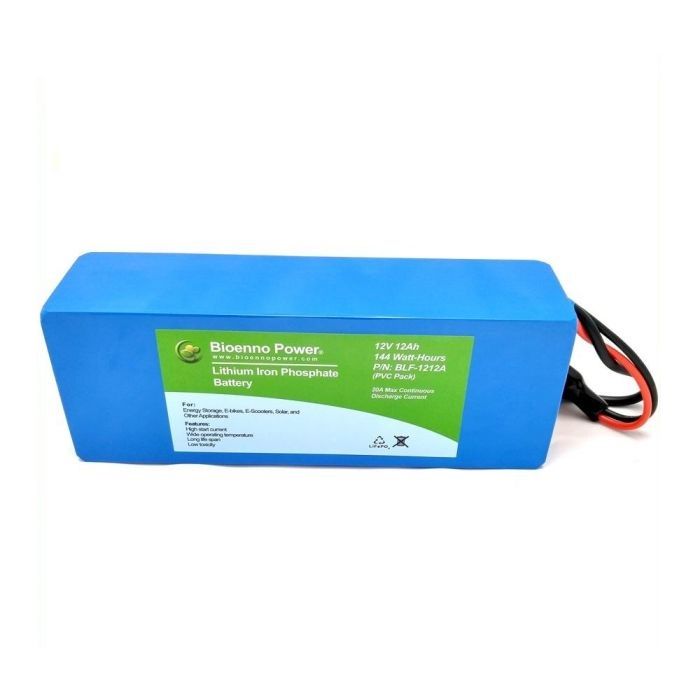

BLF-1212A Battery Specifications
- Voltage: 12V
- Capacity: 12 Ah
- Case Type: PVC Pack
- Charge Connector: DC Plug
- Discharge Connector: Anderson Powerpole
- Maximum Continuous Discharge Current: 20A
- Peak Pulse Current: 40A (2 sec.)
- Max Power Delivered to Load at 12V: 240 Watts (12V x 20A = 240 Watts)
- Dimensions: 8.5 in. x 2.2 in. x 3.1 in. (215 mm x 56 mm x 79 mm)
- Weight: 3.3 lbs. (1.5 kg)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry Available 110VAC/220 VAC Charger
Compatible AC-to-DC Charger Specifications
- Input Voltage: 110VAC/220 VAC
- Output Voltage: 14.6VDC
- Charge Profile: CC/CV (Constant Current / Constant Voltage)
- Current: 2A
- Connector: DC Plug
- Model Number: BPC-1502DC
