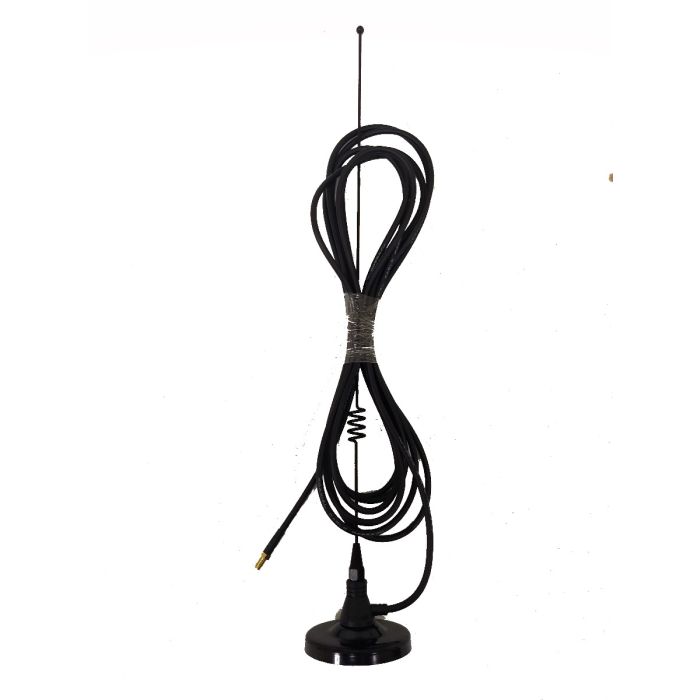

Comet Antennas M-24SJ

MagMount 144/446MHz w/SMA-Female Jack

M-24SJ (coax terminates in an SMA-female connector for the new Chinese made HT’s) 2M/70cm DualBand antenna on a small magnetic mount

Most mag mount antennas require you to pull the entire magnet and antenna of the vehicle for a car wash, to secure it from theft, etc… That typically ends up scratching the mounting location. The M-24 radiating element is threaded onto the magnet. Simply unscrew the whip to lock it away or to allow clearance under parking structures, etc… and leave the magnet in place on the vehicle. Ready to go back on the air?…screw the whip back on.

Gain & Wave:
2M: 1.7dBi
440MHz: 4.1dBi
VSWR: 1.5:1 or less
Max Power: 80 watts
Length: 19.5"
Coax: RG-58A/U, 12 feet
