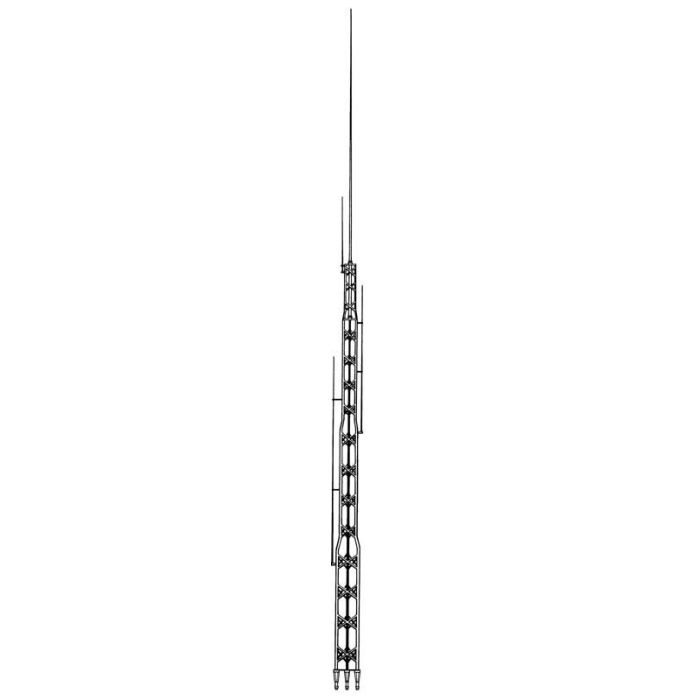

AV-18HT
HY-TOWER, 10/15/20/40/80M, 50FT VERTICAL
|
The AV-18HT features automatic band selection achieved through a unique stub decoupling system which effectively isolates various sections of the antenna so that an electrical 1/4 wavelength (or odd multiple of a 1/4 wavelength) exists on all bands. Approximately 250 kHz bandwidth at 2:1 VVSWR on 80 Meters. With the addition of a base loading coil (LC-160Q) it also provides exceptional 160 Meters performance. Includes all stainless steel hardware and tilt-over base. Unity gain on 20, 40, 80; 2 dB on 10/15 Meters.
| AV-18HT Specifications |
| Electrical Specifications |
Bands |
10, 15, 20, 40, and 80 Meters (optional mod for 160 Meters) |
| Max Power |
1500 Watts PEP |
Input Connector |
SO-239 |
| Mechanical Specifications |
Height |
53 feet |
| Weight |
114 pounds |
| Wind Survival |
75 MPH |
| Recommended Mast Size |
n/a |
|
**DOES NOT QUALIFY FOR FREE FREIGHT**
Please be advised: The shopping cart estimate isn't able to take into account the oversize dimensions of this package and may inaccurately show $0.00. This antenna is drop shipped from MFJ and could take 30 days to assemble and ship. We will notify you of the shipping costs as quickly as possible.
