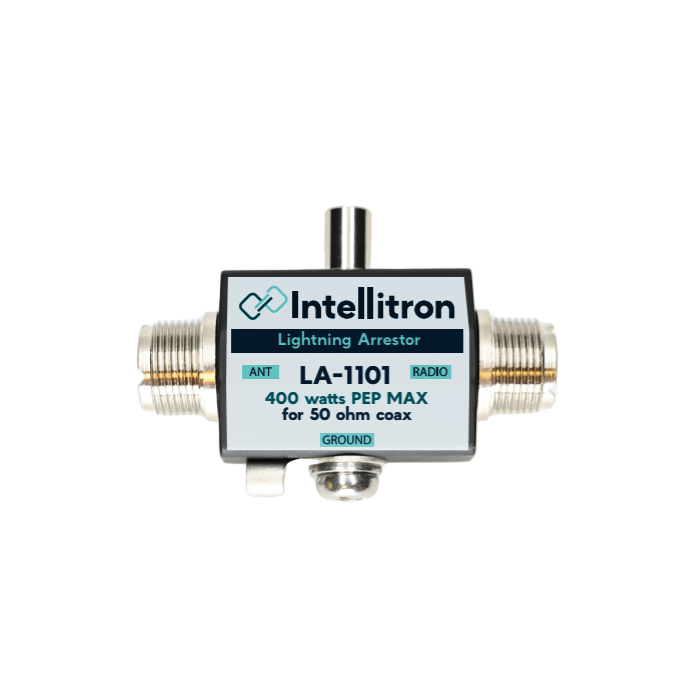

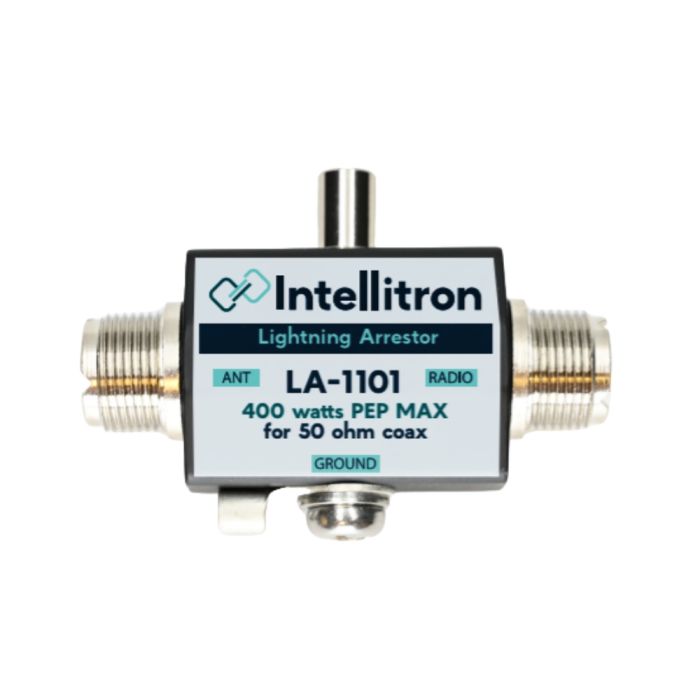

Intellitron LA-1101 Lightning Arrestor 400w 50 Ohm DC-1000MHz SO239

Intellitron LA-1101 400w Lightning Arrestor

Intellitron: Expertly Built, Economically Priced

The Intellitron LA-1101 is engineered to provide superior surge suppression for your coax feedline, safeguarding sensitive radio equipment from the damaging effects of lightning strikes and severe static build-up. Its core strength is its wide-ranging performance, boasting an impressive operating range from DC up to 1000 MHz, ensuring it's compatible with everything from your HF rig to your VHF/UHF gear. This makes it a universal protector for multi-band shacks. Equipped with the common and rugged SO-239 connectors on both ends, installation is quick, simple, and requires no special adapters or tools—just screw it inline between your antenna and your radio.

For operators running significant power, the LA-1101 is built to handle it, rated for a maximum power handling of 400 Watts PEP (Peak Envelope Power), making it suitable for most modern solid-state amplifiers and transceivers. A minimal Insertion Loss of less than 0.1 dB means the protector does its job without significantly degrading your signal quality on transmit or receive. Critically, the unit features a high-quality gas discharge tube (GDT) that acts as the primary defense, shunting powerful transient energy safely to ground and quickly resetting for continuous protection. The arrestor is designed with a 50 Ohm impedance, perfectly matching standard amateur radio coaxial cable and equipment, which minimizes SWR and maintains optimal power transfer. Finally, its durable, weather-resistant chassis is built to withstand outdoor mounting near the antenna mast or entry point, providing the first line of defense exactly where it's needed most.

Features

• Wide Frequency Range: DC to 1000 MHz provides comprehensive protection for HF, VHF, and UHF operations.
• Robust Power Handling: Rated for 400 Watts PEP, accommodating most amateur radio amplifiers and transceivers.
• Standard SO-239 Connectors: Allows for simple, direct inline installation with common coax feedlines.
• Gas Discharge Tube (GDT) Technology: The key protective element provides fast, powerful, and resettable surge suppression.
• Durable, Weather-Resistant Housing: Built for reliable outdoor installation at the feedline entry point.

Specifications

• Maximum Power Handling: 400 Watts PEP
• Operating Frequency Range: DC - 1000 MHz
• Impedance: 50 Ohms
• Insertion Loss: ≤0.1 dB
• Connector Type: SO-239 (UHF Female)

Don't leave your expensive ham radio equipment vulnerable to the next thunderstorm. Protect your investment with the essential Intellitron LA-1101 Lightning Arrestor. Click to order from GigaParts.com now and ground your peace of mind!

UPC Code:  810106910338

NOTE: It's important to note that while a lightning arrestor like the LA-1101 can offer protection, it may not guarantee complete immunity against a direct lightning strike. Users should follow best practices for grounding and take additional precautions to minimize the risk of damage during severe weather events.
