Kenwood TH-D75A 5W 144/220/430MHz Tri-Band Handheld Transceiver with DSTAR

Name: Kenwood TH-D75A 5W 144/220/430MHz Tri-Band Handheld Transceiver with DSTAR
Brand: Kenwood
SKU: ZKW-TH-D75A
Price: 639.95 USD
Availability: InStock

Kenwood TH-D75A 144/220/430MHz Triband Handheld Transceiver

SKU: ZKW-TH-D75A

Availability:

In stock

We'll Let You Know When It's Back On The Shelf

Thank you for your interest in this item.

Please note: Once you receive word that this item is available, it's up to you to act! An email notification guarantees neither inventory nor price. But don't worry: should you miss out on the first shipment, you can always request another notification.

$639.95

SAVE $50.00

Regular Price: $689.95

Used & Open-Box: from $575.29

Free Shipping

Must Have Accessories

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links. Press to skip carousel

GigaParts MARS Mod Level 8

$59.00

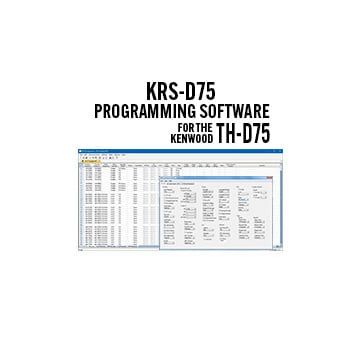

RT Systems Software Only for Kenwood TH-D75

$34.95

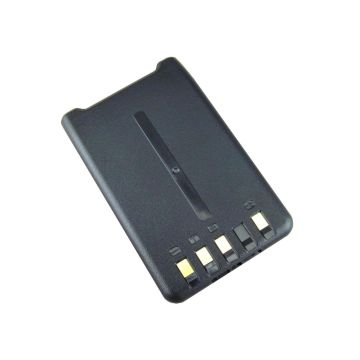

Kenwood KNB-75LAM 1,820mAh Li-ion Battery Pack

$109.95

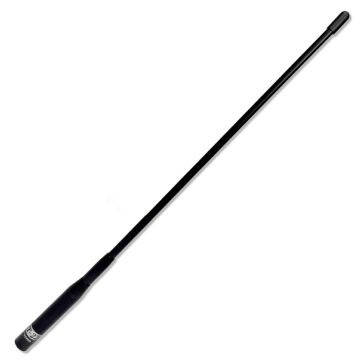

Comet Antennas HT-224

$39.49

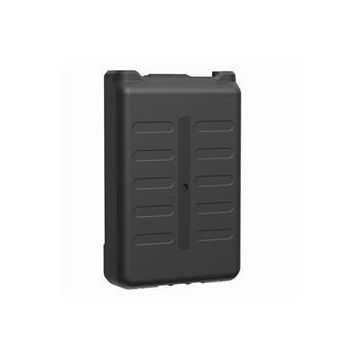

Kenwood KBP-9 AAA Battery Case for the TH-D74/TH-D75

$49.95

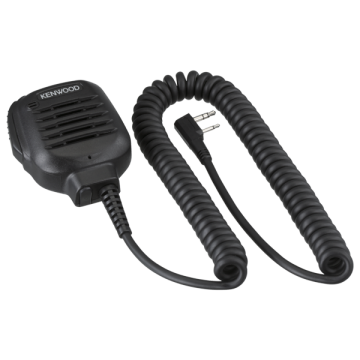

KMC-45D Kenwood Mic for TH-D74A and TH-D75A

$84.95

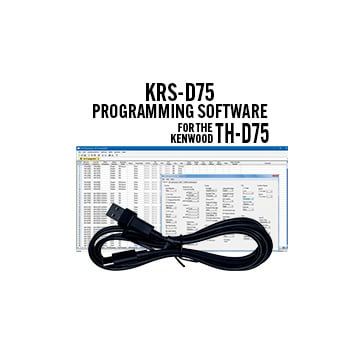

RT Systems Software & USB Cable Kit for Kenwood TH-D75

$49.95

Description

Kenwood TH-D75A 144/220/430MHz TRIBANDER

144 / 220 / 430 MHz Tribander. KENWOOD’s multiband transceiver: Innovative APRS and DIGITAL voice functions expand the excitement.

The Kenwood TH-D75A Tri-Band Handheld Transceivers represent a significant advancement in amateur radio technology, offering enhanced features for a superior user experience. Building on the success of its predecessor, the TH-D74, this model introduces simultaneous reception of two D-STAR signals, Reflector Terminal Mode for D-Star reflector access, improved voice guidance, integrated GPS, digipeater functions, and an APRS Standalone Digipeater. The TH-D75A prioritizes usability with features like a USB Type-C port for serial communications, audio in/out, and battery charging. Bluetooth headset PTT support adds hands-free operation convenience. The transceiver's ergonomic design ensures comfort and intuitive operation, catering to the evolving needs of modern amateur radio operators.

Dual Band FM Transceiver with Built-in GPS

The Kenwood TH-D75A is a powerful and versatile dual band FM transceiver that is perfect for amateur radio enthusiasts of all experience levels. It features a built-in GPS module that allows for location tracking and APRS messaging, making it a great choice for outdoor activities. The TH-D75A also supports D-STAR digital voice and data, providing you with clear and reliable communication.

Key Features

Dual band FM transceiver (VHF/UHF)
Built-in GPS module for location tracking and APRS messaging
D-STAR digital voice and data support
Large, backlit LCD display for easy viewing in all conditions
Rugged and water-resistant construction
Long battery life

Whether you are a seasoned amateur radio operator or just getting started, the Kenwood TH-D75A is a great choice for your communication needs.

Purchase your Kenwood TH-D75A 144/220/430MHz D-STAR APRS Handheld Transceiver from GigaParts today!

UPC Code: 019048238818

Features

Compatible with the APRS communication protocol, which allows real-time two-way data transmission by using packet communications. Various types of communication are possible, such as GPS positional information sharing, text messaging, and communicating via the ISS and other satellites. In addition, full-fledged APRS operation is made possible through a unique standalone digipeater function that sets APRS-veteran KENWOOD apart.
Station list, object functions
QSY function
Text messaging
Standalone digipeater function
KISS mode TNC
APRS Menu Settings
Wideband and multimode reception
Supports D-STAR, the amateur radio digital communications protocol, which provides both voice and data modes. From local to overseas QSOs can be enjoyed in a variety of modes, including simplex, single repeater, and gateway communications over a network of repeaters. Newly supported Reflector Terminal mode and simultaneous reception of two digital voice signals provide additional flexibility to D-STAR operations.
DV fast data mode
Simple operation in DR (D-STAR Repeater) mode
Setting via the digital function menu
Reflector Terminal mode
Simultaneous reception of two digital voice channels
Easily updated repeater list
Built-in GPS module and patch antenna
Standard compatibility on a rich interface
Powerful voice guidance
More convenience with free PC software
IF output mode
KENWOOD custom-tuned sound quality

Click here for the Kenwood TH-D75A User Manual

Click here for the Kenwood TH-D75A Brochure

Specifications

Frequency Range:

Band-A -TX: 144 - 148, 222 - 225, 430 - 450 MHz
RX: 136 - 174, 216 - 260, 410 - 470 MHz
Band-B RX: 0.1 - 76, 76 - 108 MHz (WFM)

Number of Channels: 1,000

RF Power Output: Battery 7.4VDC / DC-In 13.8VDC

Hi – 5W / 5W
Mid – 2W / 2W
L – 05W / 05W
EL – 0.05W / 0.05W

Operating Voltage:

DC-In: 11.0 – 15.9VDC (STD: 13.8VDC)
Battery: 6.0 – 9.6VDC (STD: 7.4VDC)

Audio Output: At 7.4VDC, 10% distortion, INT: 400mW / 8 Ohms

Microphone Impedance: 2 kΩ

Approx. Battery Life

Single RX, Battery saver on,
TX: RX: Stdby 6: 6: 48 sec., GPS/BT off
- With KNB-75LA (Li-Ion)
  - H: 6h
  - M: 8h
  - L: 12h
  - EL: 15h

Includes

Kenwood TH-D75A
Antenna
7.4V |1820mAh Li-ion Battery Pack (KNB-75LA)
AC Adapter / Charger
Belt Clip
Instruction Manual
