Messi and Paoloni UltraFlex 7 Coax Cable

Messi and Paoloni UltraFlex 7 Coax Cable: Outperforming Larger Cables with Extraordinary Flexibility

Messi and Paoloni UltraFlex 7 Coax Cable is a compact yet high-performance solution, designed to outclass larger cables like RG213/U and RG8 despite its smaller 7.3mm (.287") dimension. This unique cable offers extraordinary flexibility, making it ideal for applications requiring tight bends and dynamic movement, such as with rotor antennas.

UltraFlex 7 combines the practicality and manageability of smaller cables with the robust performance typically found in 10mm coax. It's perfectly suited for portable use, CB radio, modem 4G/LTE, patch cords, and jumpers (for lab setups, amplifiers, etc.). Its excellent signal extension capabilities also make it a prime choice for Wi-Fi, 2G, 5G Router, and Hotspot connections. Its reliability and performance have earned it the distinction of being selected as the official coax for the World Radiosport Team Championship (WRTC) in 2018 and 2022.

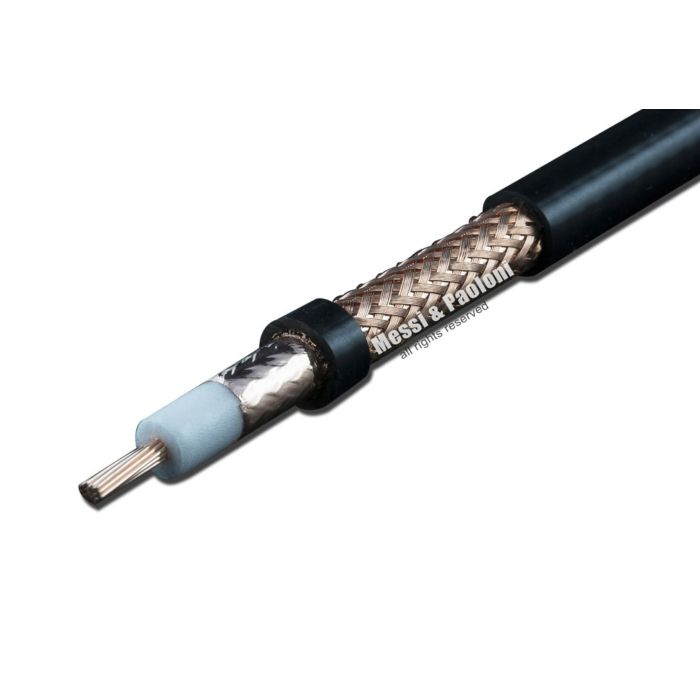

The cable's robust construction features a UV-resistant black PVC jacket (overall Ø 7.3mm ± 0.15) for durability in outdoor environments (note: PVC sheaths are not suitable for direct burial). The inner conductor is made of 19x0.38mm copper wires (overall Ø 1.9mm ± 0.15), providing both excellent conductivity and the flexibility needed for demanding installations. The dielectric is a triple-layer, high-pressure physical injection foamed polyethylene (overall Ø 5mm ± 0.05), contributing to its impressive 83% velocity ratio and low capacitance of 75 pF/m.

Superior shielding is a hallmark of UltraFlex 7. It incorporates a 100% screening copper foil (with an applied PE-layer to prevent cracking due to short radius bends) and a reactive braid with 83% screening from 144 copper wires. This braid is produced on advanced 24-spool machines (compared to standard 16-spool), resulting in 50% more crossovers. This design grants exceptional Screening Attenuation (SA) and allows the braid to react like a spring to twisting and bending. The combined shielding achieves a Screening Efficiency (SA) of >105 dB from 100-2000 MHz, earning it a Screening Class A++.

With an impedance of 50 Ohm ± 3 at 200Mhz and a maximum peak power handling of 8,000 Watts, UltraFlex 7 can support significant power levels. It offers a tight minimum bending radius of 68mm (2.68 in) for up to 15 bends and 34mm (1.34 in) for a single choke bend, providing remarkable adaptability for various installation scenarios. The cable operates reliably across a wide temperature range from -40°C to +60°C (-40°F to +140°F).

Key Features:

• Outclasses Larger Cables: Superior performance despite its smaller 7.3mm dimension compared to RG213/U and RG8.
• Extraordinary Flexibility: Designed for tight bendings and rotor antennas.
• Lighter and More Manageable: Combines portability with the performance of larger coax.
• Official Coax of WRTC 2018 and 2022.
• UV-Resistant Black PVC Jacket: Durable for outdoor use (not for direct burial).
• Triple-Layer Shielding:
  • 100% Screening Copper Foil.
  • Reactive Braid with 83% screening (144 copper wires, 24-spool manufacturing for superior SA).
  • Screening Efficiency (SA) >105 dB (100-2000 MHz), Class A++.
• High Pressure Physical Injection Foamed Polyethylene Dielectric (Triple Layer).
• Stranded Copper Inner Conductor (19x0.38mm).
• 50 Ohm Impedance.
• Maximum Peak Power: 8,000 Watts.
• Wide Temperature Range: -40°C to +60°C.
• Versatile Applications: Perfect for portable use, CB radio, modem 4G/LTE, patch cords, jumpers, Wi-Fi, Router 2G/5G, Hotspot.

Electrical Data Highlights:

• Impedance @200Mhz: 50 Ohm ± 3
• Minimum Bending Radius: Up to 15 bends: 68mm (2.68 in); single bend (choke): 34mm (1.34 in)
• Temperature: -40°C to +60°C (-40°F to +140°F)
• Capacitance: 75 pF/m ± 2 (22.9 pF/ft ± 2)
• Velocity Factor: 83%
• Inner Conductor Resistance: 7.3 Ohm/Km (2.2 Ohm/1000ft)
• Outer Conductor Resistance: 9.8 Ohm/Km (3.0 Ohm/1000ft)
• Net Weight (100m): 6.9 Kg (4.6 lb)
• Maximum Peak Power: 8,000 WATT

Messi and Paoloni UltraFlex 7 Coax Cable is an exceptional choice for amateur radio operators and communication professionals who require a high-performance, flexible, and manageable coaxial cable that punches above its weight class.
