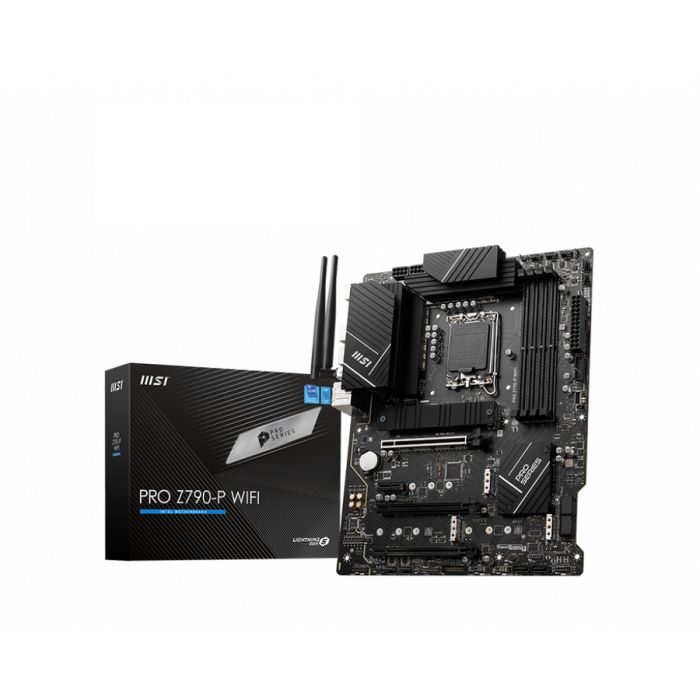

MSI Z790-P WIFI DDR5 ATX Desktop Motherboard - PROZ790PWIFI

Name: MSI Z790-P WIFI DDR5 ATX Desktop Motherboard - PROZ790PWIFI
Brand: MSI
SKU: MB1542
Price: 199.99 USD
Availability: InStock

SKU: MB1542

Availability:

In stock

$199.99

VIP Price

After Mail-In Rebate

Free Shipping

Description

Features

Specifications

Includes

Product Specifications
General
Operating System	Support for Windows® 11 64-bit, Windows® 10 64-bit
Manufacturer Number	PRO Z790-P WIFI
Product Condition	New
CPU & Chipset
CPU	Supports Intel® Core™ 14th, 13th and 12th Gen Processors, Intel® Pentium® Gold, Celeron® Processor and Intel Processor 300(T)
Processor Socket	LGA1700
Chipset	Intel® Z790 Chipset
CPU Socket	LGA1700
Form Factor	ATX Form Factor
Memory
Memory	4 x DDR5 memory slots, supporting up to 128GB
Memory Support	7000+(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC) 5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7200+ MHz 1DPC 2R Max speed up to 6600+ MHz 2DPC 1R Max speed up to 6400+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Network & Audio
LAN	1 x Intel® 2.5Gbps LAN
Wireless LAN	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth	Supports Bluetooth® 5.3, FIPS, FISMA
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage
Multi-GPU	-
Storage	4 x M.2 Gen4 x4 64Gbps slots 6 x SATA 6Gbps ports
Onboard Graphics	1 x HDMI™ 1 x DisplayPort Support HDMI™ 2.1, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
I/O & Expansion
I/O (Rear)	Keyboard / Mouse DisplayPort USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button USB 2.0 HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A)
Expansion Slots	3 x PCI-E x16 slot 1 x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
USB (Front)	4 x USB 3.2 Gen1 Type A 1 x USB 3.2 Gen2 Type C 4 x USB 2.0
USB (Rear)	2 x USB 3.2 Gen1 Type A 1 x USB 3.2 Gen2 Type A 1 x USB 3.2 Gen2x2 Type C 4 x USB 2.0
TYPE-C PORT	1 x USB 3.2 Gen 2x2 20Gbps (Type-C)
Internal Connectors	1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x CPU Fan 1 x Pump Fan 6 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x TBT connector (JTBT, supports RTD3) 1 x Tuning Controller connector(JDASH) 2 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 4 x USB 3.2 Gen1 Type A 1 x USB 3.2 Gen2 Type C
Dimensions & Warranty
Dimensions	12.00" x 9.60"
Manufacturer Warranty	3 Year
