Powerwerx DB-750X Dual Band VHF/UHF 750 Channel Commercial Mobile Radio
Dual band VHF/UHF, 750 channel commercial transceiver with 10 memory banks. Freq. range: 136-174, 400-490 MHz. 50W VHF, 40W UHF power output, Single Receive or True Dual Receive (V+V, U+U, V+U), Optional Remote Head Mounting Kit. Part 90 certified.

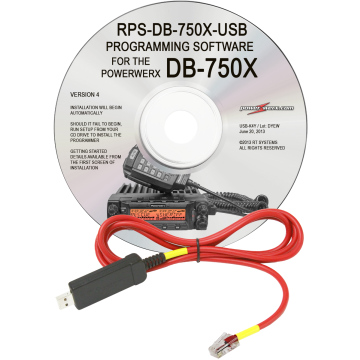

All of the features you want at an affordable price. The newest mobile added to the Powerwerx lineup features Narrow band transmit (2.5 KHz) except on the Amateur bands (selectable Wide or Narrow RX), true dual-band receive (V+V, U+U, V+U, U+V), Wide RX/TX 136-174/400-490 MHz, AM aircraft Receive 108-136 MHz and user selectable multi-colored LCD display. Since this is a Commercial Land Mobile Multi-band radio, the DB-750X ships keyboard locked. The RPS-DB750X-USB programming software kit is required to initially unlock and program this radio before use.
Ideal for Fire, Police, FEMA, CAP, security patrols, business communications, schools, construction crews, universities, and other organizations that have FCC licensed frequencies. Includes 2.5 KHz channel step for FCC 2013 narrowband compliance.
DB-750X Model Features
2.5 step for FCC 2013 narrowband compliance
750 memory channels
10 Memory Banks (with bank linking)
7 Character Alpha-Numeric Display
Dual Receive Operation w/ separate Volume Controls
Narrow band (2.5 KHz) operation for Land Mobile frequencies (FCC Part 90)
Wide band (5.0 KHz) operation for Amateur frequencies

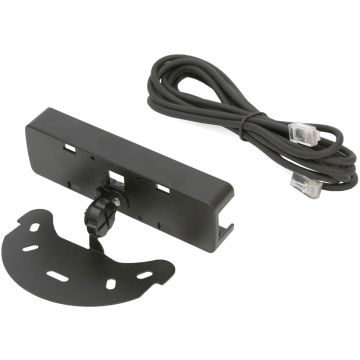

Optional Base Station Configuration
FCC Approval
The DB-750X is Part 90 certified for commercial use. CE & FCC Part 90 certified.
Powerwerx Warranty Policy
12 month limited warranty on the radio against defects in materials and workmanship.
Standard Accessories Included with Every Radio:
Dual band transceiver w/ removable control head
DTMF Microphone
DC Power Cable
Mobile Mounting Bracket (w/ mounting screws)
English user manual
Features
True Dual band Receive (VHF+UHF, VHF+VHF, UHF+UHF)
7 Character Dual alpha numeric, backlit display
4 Selectable high/low power settings per band
(VHF: 50/20/10/5W) (UHF: 40/25/10/5W)
Single or Dual Receive/Display Modes
User selectable multi-colored LCD display
750 Memory Channels w/ 10 Banks
FCC 2013 Narrowband compliant (2.5 kHz)
Power on display: show battery voltage
Built-in CTCSS / DCS per channel
Programmable Time Out Timer (TOT)
Selectable step sizes of 2.5, 5, 6.25, 10, 12.5, 25 kHz
Multiple scan modes including priority scan
Frequency Receive Range
VHF: 108-136 MHz (AM)
VHF: 136-174 MHz (FM Wide or Narrow)
VHF: 220-260 MHz (FM Wide or Narrow)
UHF: 350-490 MHz (FM Wide or Narrow)
Frequency Transmit Range
VHF: 136-143.995 MHz (FM Narrow)
VHF: 144-147.995 (FM Wide or Narrow)
VHF: 148-174 MHz (FM Narrow)
UHF: 400-429.995 MHz (FM Narrow)
UHF: 430-449.995 MHz (FM Wide or Narrow)
UHF: 450-469.995 MHz (FM Narrow)
UHF: 470-490 MHz (FM Wide or Narrow)
Memory Channels - 750 channels
Operating Voltage - 13.8 VDC
Operating Temperature -- -22°F to 140°F (-30°C to +60°C)
Dimensions (W x H x D) - 5.5 x 1.6 x 8.4 inches (140 x 42 x 211mm)
Weight - 40.9 ounces (1159.5 grams)
RF Carrier Power - VHF: 50/20/10/5W, UHF: 40/25/10/5W
