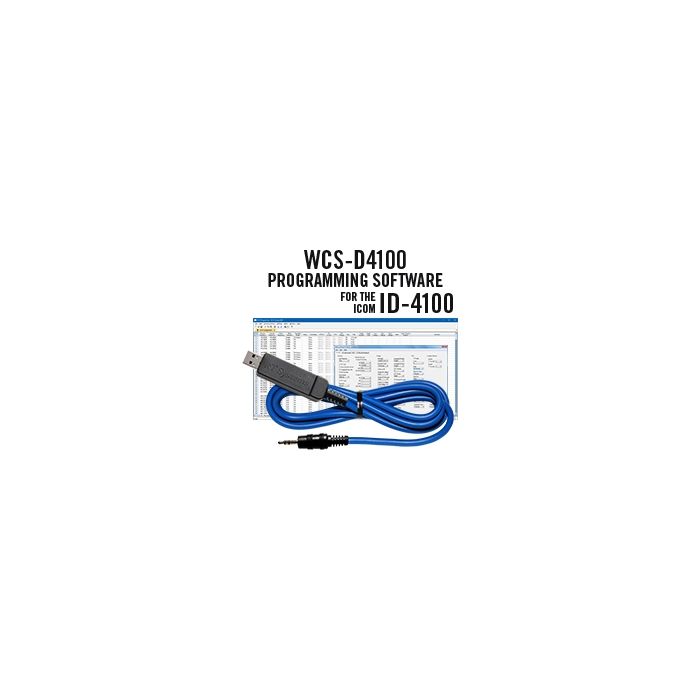

WCS-D4100 Programming Software and USB-29A cable for the Icom ID-4100

• Spreadsheet layout with many point and click options.
• "Read" the current configuration from the radio for editing or start from scratch in a new file.
• The programmer has copy and paste of memory channel information between files.
• Column editing for changing several channels with minimal typing.
• An easy interface to RFinder-Worldwide Repeater Directory, Radio Reference, or Repeater Book to get repeater information for your location, a travel route, or a vacation spot. Repeater details available for locations in and outside the US. (separate purchase or subscription may be required)
• Other built-in frequency lists for easy memory channel entries (check File|External data in the programmer before you spend time on internet searches for frequencies. You may find just what you need!)
• Copy and paste spreadsheet or website data.
• Much more than just memory channel programming with settings for other radio menu items.

USB-29A

The USB-29A cable (blue) programs the radio. It connects to the radio through the 3.5mm speaker jack. If there are two speaker jacks, it is usually SP2. Check your manual. It will specify which speaker port is used for cloning or programming. That's the one to use.

The USB-29A cable is generally more dependable for programming since the radio does not put other data out through the speaker jack. However, you cannot have a speaker attached to the other speaker jack while programming.

The USB-29A cable can be used to program many of the Icom handhelds and mobiles as well as radios from other manufacturers. It is one of the more "universal" programming cables in the RT Systems line.
