Yaesu G-800DXA Medium Duty Rotator - 450 DG 16 SQ. FT.

Medium Duty - 450 Degree Turning Radio w/Pre-set 16 Sq. Ft. (Rotor Diameter 7 1/2in, Rotor Height 12 1/2in, Mast Diameter 1 1/2 - 2 1/2in)

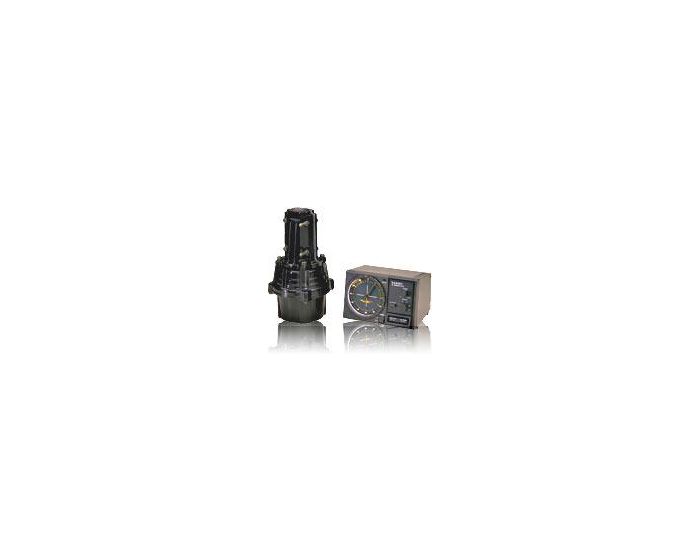

The Yaesu G-800DXA is a weatherproof antenna rotator featuring a Wind Load of 16 Sq. Ft. and a Vertical Load of 440 lbs. This antenna rotator is made of Melamine Coated Die-Cast Aluminum and is permanently lubricated. The G-800DXA is great for rotation of moderately sized triband or monoband HF arrays. The G-800DXA also includes a Preset feature.

Specifications:

-Wind Load: 2m
-K-Factor: 180
-Stationary Torque: 4,000kg/cm
-Rotation Torque: 1,100 - 600kg/cm
-Max. Vert. Load: 200kg
-Max. Vert. Intermittent Load: 800kg
-Backlash: 1°
-Mast Size: 38 - 63 Ø
-360° Rotation Time: 40 - 100sec.
-Rotator Diameter x Height: 186Ø X 300
-Weight: 3.5kg
-Cable Requirement: 6
