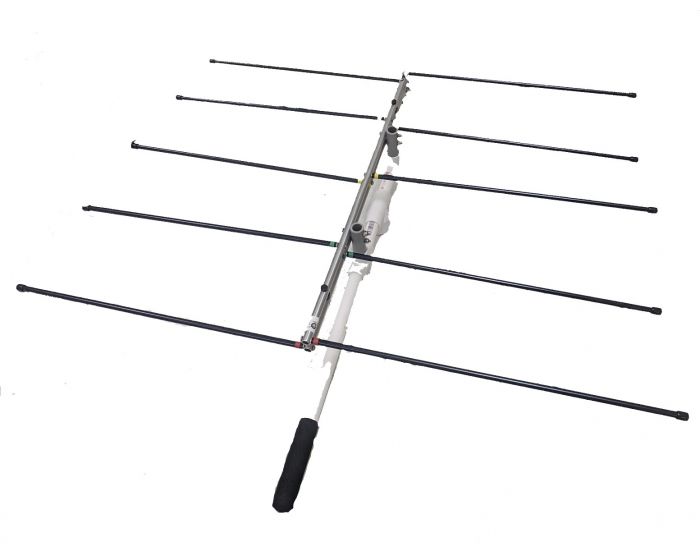

Elk Antennas 2M/70cm VHF/UHF Dual-Band Log Periodic Handheld Directional Antenna - 2M/440L5

SKU
ZEL-2M-440-L5
$137.95
Add to Wish List
Ready to Ship!

Elk Antennas 2M/70cm VHF/UHF Dual-Band Log Periodic Handheld Directional Antenna - 2M/440L5

Antennas that are super performers designed for single band use, yielding great gain, front to back ratio, and SWR with no tuning required. Just power up and make your contact.

Whether you are operating portable or permanent, you will find the convenience of a dual-band Log Periodic antenna to be an incredibly convenient and powerful tool in your ham operations. Having both 2 Meter and 70 cm Bands in a compact, two-foot long package, without having to bother with a duplexer is just a real lifesaver to most operating environments. From bouncing signals off of satellites to working simplex two or three counties aways – you cannot go wrong with the Elk 2M/440L5! All Elk 2M/440L5 models come with a handle for handheld operation, making this antenna perfectly set up for satellite, direction finding, and very portable operations.

Purchase your Elk 2M/440L5 Dual Band Log Periodic Antenna at GigaParts today!

The feed on all Elk Antennas is from the front of the antenna.  Where you connect the feedline is where you point the antenna.

  • Dimensions:  24.5" × 3" × 3"
  • Weight:  1.4 lbs
  • Boom Length: 24"
  • Number of elements: 5
  • Connector Type:  UHF Connector
  • Boom Coating:  Black Powder-Coated Booms
  • 2m Gain: 6.6 dB (8.7 dBi)
  • 70cm Gain: 7 db (9 dBi)
  • Max Power: 200W on 2m, 100W on 70cm
  • Front-to-Back Ratio: 20+ db
  • SWR: 1:1 144-148MHz and 430-450MHz



INSTALLATION + USAGE NOTES:
  • If used in a permanent installation, use some type of locking compound on the boomthreads.
  • Use all parts of the band without retuning.
  • Easy polarity change by twisting mounting assembly.
  • Makes great RV and portable antenna because of short assembly-disassembly time and light weight.
  • Super fast assembly, color coded threaded elements screw onto color coded boom. Just match colors.
