Adafruit Perma Proto Bonnet Mini Kit 3203

Design your own Bonnet or pHAT, attach custom circuitry and otherwise dress your Pi Zero with this prototyping Bonnet kit!

This Perma-Proto inspired plug in daughter board has a grid of 0.1" prototyping soldering holes for attaching chips, resistors, LED, potentiometers and more. The holes are connected underneath with traces to mimic the solderless breadboards with which you're familiar. There are also long power strips for +3V, +5V and Ground connections to the Pi. Near the top we break out nearly every pin you could want to connect to the Pi (#26 didn't quite make the cut, GPIO #0 and GPIO #1 are wired to the HAT EEPROM and not available on the breakout pad row).

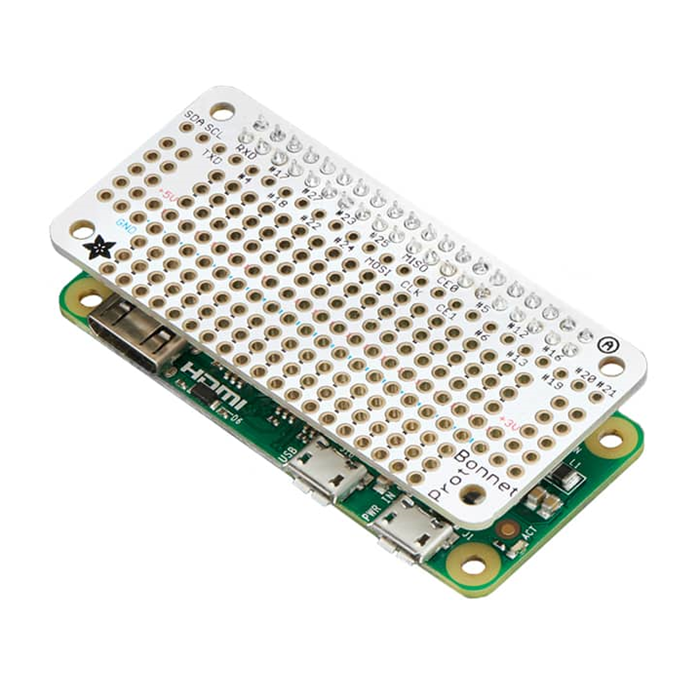

The Perma-Proto Bonnet comes with a printed circuit board and a single 2x20 GPIO Header for Raspberry Pi to put your Perma-Proto on top of your Raspberry Pi Zero (like a nice little bonnet...). This design does not include an EEPROM, so you can 'stack' it with other Bonnets and pHATs without worrying about an EEPROM address collision.

This bonnet is designed for use with Raspberry Pi Zero but you can put on top of any Raspberry Pi with a 2x20 connector, it will just not stick out as far.

• Product Dimensions: 65.1mm x 30.1mm x 1.5mm / 2.6" x 1.2" x 0.1"
• Product Weight: 5.3g / 0.2oz
