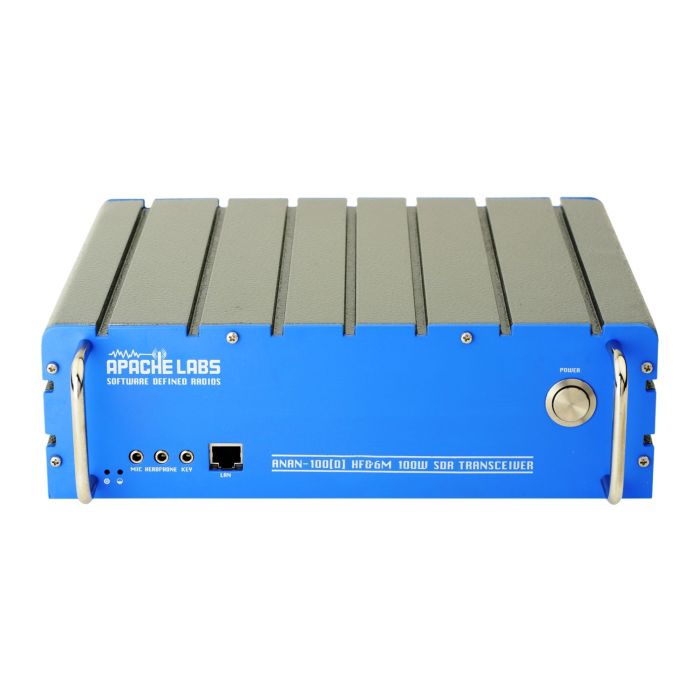

Apache Labs ANAN-100D SDR

The Heart of the ANAN-100D is the Angelia SDR:

ANGELIA is a state-of-the-art soft core uP 4th generation DDC/DUC, Hermes-like, transceiver
board that incorporates an Altera Cyclone IV FPGA and dual LTC2208 ADCs. The large FPGA and
dual ADCs permit exceptional versatility and performance. The FPGA is large enough to allow
on-board, soft-core processing, if desired, and the dual ADCs allow true coherent receiver
operations.

Adaptive Predistortion for a Super Clean transmitter on the ANAN



The quest for a clean transmitter requires one to either operate in very inefficient Class A mode (at reduced efficiency and power outputs) or invest in a 50v Mosfet design which provides a 10dB improvement in IMD in the best case scenario.

The ANANs has been designed from the ground up to use modern digital predistortion algorithms to mitigate and reduce the IMD created in the transmitter, 50dB IMD3 has been achieved using Dr Warren Pratt’s (NR0V) revolutionary new WDSP engine which implements adaptive predistortion (PureSignal) winner of the 2014 ARRL Technical Innovation Award.

Exceptional transmitter output linearity has been achieved, the results are astounding and far superior to any other Amateur radio transceiver available in the market today.



Diversity Reception



The ANAN-100D and the ANAN-200D can be used for Polarization diversity operations (using two ADCs) to remove QRM and noise far more efficiently than any noise blanker can, Diversity reception is also used to mitigate Faraday Rotation effects and to remove polarization misalignment effects during Rx.

Diversity Reception, Courtesy Nige G7CNF



Software Support

THE ANAN SDRs WILL WORK ON A MULTITUDE OF SOFTWARE PLATFORMS

SUCH AS :



  • The OpenHPSDR flavours of PowerSDR
  • cuSDR
  • Kiss Konsole
  • GNURADIO- OpenHPSDR
  • John Melton's (G0ORX/N6LYT) android
  • application for The OpenHPSDR hardware
  • GHPSDR3, GHPSDR3-QT




Frequently Asked Questions

Q. Is an Apache Labs radio right for me?
A. The Apache Labs software defined radios are built and designed for highly technical operators with a moderate amount of computer and networking experience -- not "appliance users." They are on the cutting edge of radio technology and the radios are continuously improved through user feedback. An Apache Labs radio is right for you if: 1) you are looking for the highest performance and latest technology; 2) you are an experienced radio operator with computer experience; 3) you're willing to work through the resources provided by the Apache Labs community at Yahoo Groups; and 4) you understand the nature of cutting edge technology includes frequent firmware updates and hardware revisions to stay on the cutting edge and to address issues as they are uncovered.

Q. Are Apache Labs radios warrantied and supported just like any other ham radio?
A. No. To begin with, the Apache Labs warranty is 2 years -- twice as long as most radio manufacturers. Also, since there's really no interface for this radio aside from third party software, there's not a whole lot to "support." There is a US service center for Apache Labs products should something fail, but most of the time user issues can be resolved with advice from the community, software patches, or firmware updates.
Click here for GigaParts' warranty for Apache Labs products.

Q. What's the difference between the ANAN-100D and the ANAN-200D?
A. Here are some of the significant differences:

  1. The 200D has a jumperless motherboard, so features and options are software selectable on the 200D where the 100D uses internal jumpers.
  2. The 200D's Cyclone IV EP4CGX150 FPGA sports 150,000 Logic Elements vs the 100D's 115,000 logic elements, leaving room for future expansion.
  3. The 200D has a predistortion feedback network built in, so you save the trouble of adding your own external loop
  4. The 200D uses a more precise 100PPB reference clock
  5. The 200D uses the Orion platform but only uses 2 at this time.(Although the Orion card supports three, a future item.)
  6. Future projects are in the works for multiple computers being able to utilize the 200D at the same time.

Q. What's difference between the ANAN-100D and the ANAN-200D?
A. Here are some of the significant differences:

  1. The 200D has a jumperless motherboard, so features and options are software selectable on the 200D where the 100D uses internal jumpers.
  2. The 200D's Cyclone IV EP4CGX150 FPGA sports 150,000 Logic Elements vs the 100D's 115,000 logic elements, leaving room for future expansion.
  3. The 200D has a predistortion feedback network built in, so you save the trouble of adding your own external loop
  4. The 200D uses a more precise 100PPB reference clock
  5. The 200D uses the Orion platform but only uses 2 at this time.(Although the Orion card supports      three, a future item.)
  6. Future projects are in the works for multiple computers being able to utilize the 200D at the same time.


Q. I'm not getting full power on all bands with my ANAN radio. What's wrong?
A. Here are some tips:

  1. The power output should be measured using an external watt meter terminated into a 50 ohm dummy load.
  2. The power output should be measured using the Tune function and with Tune drive at 100%
  3. Older supplies may have high frequency noise which may trick the voltmeter into not noticing the voltage drop during load.
  4. The gain per band PA calibration will need to be done to achieve 100W on all bands
  5. Check your voltage. Full TX power could draw nearly 35 amps and some power supplies, although rated for that much power may have a voltage drop below 13.8V that reduces the maximum power output of the radio.
Highlights:

  • 100W RD100HHF1 Based 160M - 6M rugged Linear amplifier Rugged Extruded aluminium housing, Weight: 4.5Kgs approx, Dimensions: 265.5mm (W) x 220mm (D) x 80mm (H)
  • Combination of 7 LPF and 5 HPF Banks for front end Filtering (User Configurable as well)
  • 6M LNA
  • Dual Phase Synchronous LTC2208 16 Bit ADCs
  • Large 115K (EP4CE115) Cyclone IV FPGA
  • Supports 7 High performance Independent Receivers on a single ADC Supports 2 Coherent Receivers using independent ADCs/antennas for beam forming/diversity
  • FPGA has enough space to add on multiple soft core processors for standalone operation
  • Onboard 128MB Flash
  • Onboard 32Mbit Synchronous RAM
