Chameleon CHA RXL Receive Only Loop Antenna

SKU
ZCH-CHA-RXL
$509.99
Add to Wish List
Ready to Ship!
Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

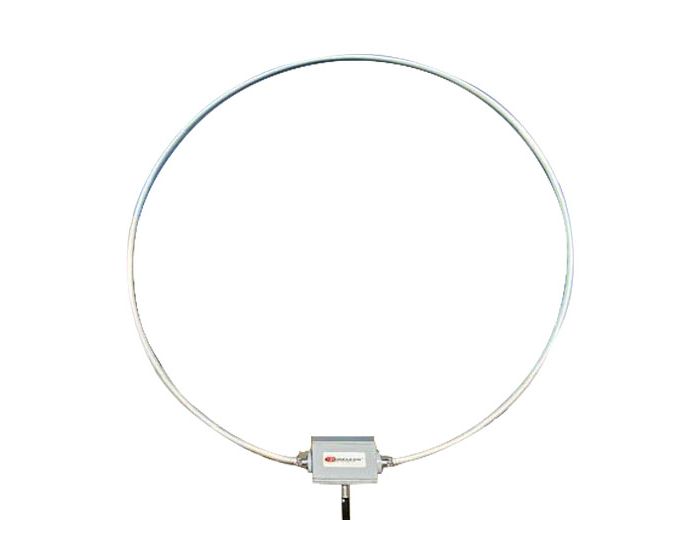

Chameleon CHA RXL Receive Only Loop Antenna



The CHA RXL is a new design high-performance Low Frequency (LF), Medium Frequency (MF), and High Frequency (HF) receive-only loop antenna that can be permanently mounted outside on a mast or used on a camera tripod next to an RV or on an apartment balcony. It's broadband design is ideal for Software Defined Radios (SDRs), panadapters, hams wanting a small low-noise receive-only antenna, shortwave listeners (SWLs), AM broadcast band listeners, and anybody needing a small receive antenna.



Some of the key features of the CHA RXL are:

  • Wideband design – LF / MF / HF
  • Highly directional
  • Balanced input preamplifier to eliminate environmental noise and ground loops
  • Receives on new 2200m and 630m ham bands
  • Flexible mounting and power options
  • Stealthy – Navy gray loop fades into the background sky.



Receive loops are very quiet and highly directional. With the built-in preamplifier, the CHA RXL will enable clearer reception than many large horizontal wire or vertical antennas. The CHA RXL covers all frequencies between 137.5 KHz and 30.0 MHz. Become a WSPR Reporting Station on the new 2200 and 630 meter bands and join the fun!



Loop Amplifier Specifications:

  • Frequency: 135.7 KHz – 30.0 MHz continuous
  • Power: 12V DC (120V AC wall adapter included USA ONLY)
  • Size: 36 in. Loop
  • Weight: 7 lbs.
  • Mount: Mast or Camera Tripod
  • Operating voltage: 12-14 VDC – Polarity Protected, Over-Voltage protection 15.5V – 20V (sustained voltage above 18V may damage the preamp)
  • Gain: 25 dB @ 2.5 MHz, 12.5 dB @ 30 MHz (see graph)
  • Noise Figure: < 5 dB
  • P1dB: >0 dBm relative to the output
  • OIP3: > +20 dBm
  • Input (no damage): +20 dBm
  • RF Power Applied to the Output: 0.25W maximum (do not transmit into the pre-amp)



Bias-T Specifications:

  • Operating Voltage: 12-14 VDC – Polarity Protected, Overvoltage protection 15.5V – 20V (sustained operation above 18V may trip the resettable fuse)
  • Maximum Current: 300 mA max.
  • Insertion Loss: < 0.25 dB @ 30 MHz
  • VSWR: < 1.3:1 @ 30 MHz



The antenna system consists of:

1 X 36" Loop

1 X Tuning Box

1 X 12V Power Supply (USA ONLY)

1 X T-BIAS

1 X "L" Bracket & Hardware

1 X Table Top Rubber Feet
