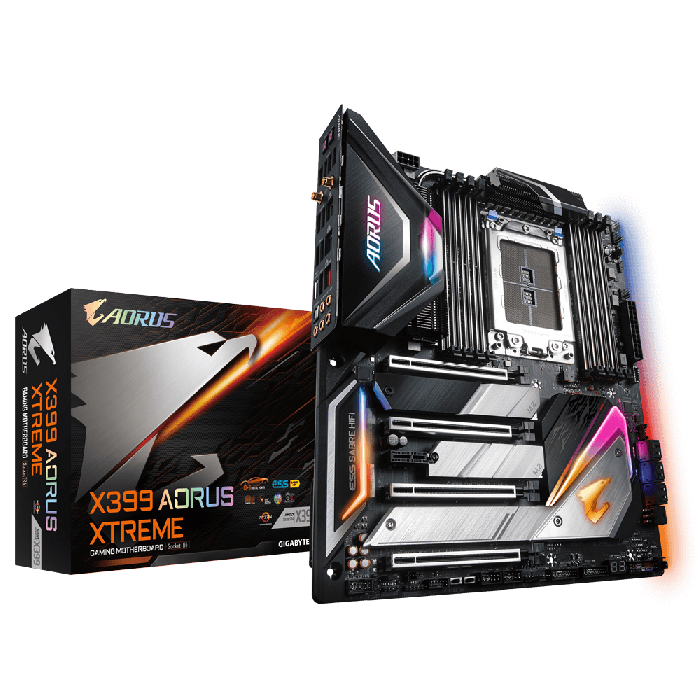

Gigabyte X399 AORUS XTREME E-ATX Motherboard

$399.29
Gigabyte X399 AORUS XTREME E-ATX Motherboard SKU: MB1251

$399.29

Free Shipping!

No Longer Available

Check Store Stock

Huntsville Store:

Las Vegas:

GIGABYTE X399 AORUS EXTREME Motherboard with 10+3 IR Digital PWM, Dual Intel® GbE LAN + AQUANTIA® 10GbE BASE-T LAN, Triple M.2 with Triple Thermal Guard, ALC1220-VB + ESS 9118 Audio, Intel® Dual Band 802.11ac WIFI, NanoCarbon Base Plated and I/O Shield Armor

  • Supports AMD 2nd Generation Ryzen™ Threadripper™ and 1st Generation Ryzen™ Threadripper™ Processors
  • Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs, Up to 3600MHz+(OC)/ 3466MHz+(OC)
  • Server-Class Digital Power PWM Design & Ultra Durable™ Solid Pin Power Connectors
  • Cutting-edge Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
  • 4-Way Graphics Support with Dual Armor and Ultra Durable™ Design
  • Triple Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Triple Thermal Guard
  • Dual Intel GbE LAN with cFosSpeed Internet Accelerator + AQUANTIA® 10GbE BASE-T LAN
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with ESS 9118 SABRE HiFi DAC
  • Intel® Dual Band 802.11ac WIFI + Bluetooth 4.2
  • RGB FUSION with Multi-Zone Digital LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Precise Digital USB Fuse Design for Stronger Protection
  • Ultra Durable™ NanoCarbon Base Plate & I/O Shield Armor
  • Rear Power/Reset/Clear CMOS Buttons
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • Supports AMD 2nd Generation Ryzen™ Threadripper™ and 1st Generation Ryzen™ Threadripper™ Processors
  • Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs, Up to 3600MHz+(OC)/ 3466MHz+(OC)
  • Server-Class Digital Power PWM Design & Ultra Durable™ Solid Pin Power Connectors
  • Cutting-edge Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
  • 4-Way Graphics Support with Dual Armor and Ultra Durable™ Design
  • Triple Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Triple Thermal Guard
  • Dual Intel GbE LAN with cFosSpeed Internet Accelerator + AQUANTIA® 10GbE BASE-T LAN
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with ESS 9118 SABRE HiFi DAC
  • Intel® Dual Band 802.11ac WIFI + Bluetooth 4.2
  • RGB FUSION with Multi-Zone Digital LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Precise Digital USB Fuse Design for Stronger Protection
  • Ultra Durable™ NanoCarbon Base Plate & I/O Shield Armor
  • Rear Power/Reset/Clear CMOS Buttons
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • Mfr Part Number: X399 AORUS XTREME
  • CPU: Socket TR4
    • Supports AMD Ryzen ThreadRipper Processor
  • Chipset: AMD X399
  • Memory: 8x DDR4-3600+(OC)/ 3466+(OC)/ 2933/ 2667/ 2400/ 2133 MHz Slots, Quad Channel, ECC, non-ECC, Unbuffered, Max Capacity of 128GB
  • Slots: 4x PCI-Express 3.0 x16 Slots (two run at x8), 1x PCI-Express 2.0 x1 Slot
  • Multi-Graphics: Support for AMD Quad-GPU & 4-Way/ 3-Way/ 2-Way CrossFireX and NVIDIA Quad-GPU & 4-Way/ 3-Way/ 2-Way SLI Technology
  • Storage:
    • SATA: 6x SATA3 Ports, Support RAID 0, 1, 10
    • M.2: 3x M.2 Ports (w/ M Key), two support type 2260/ 2280/ 22110 SATA & PCIe 3.0 x4/x2 SSD, one supports type 2242/ 2260/ 2280 SATA & PCIe 3.0 x4/x2 SSD
  • Audio: Realtek ALC1220-VB 7.1-Channel High Definition Audio CODEC
  • LAN: Dual Intel Gigabit Ethernet Controllers, Aquantia GbE LAN, Dual Band 802.11a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
  • Ports: 3x USB 3.1 Gen 2 Ports (1 Type-A rear, 1 Type-C rear, 1 Type-C via header), 12x USB 3.1 Gen 1 Ports (8 rear, 4 via headers), 4x USB 2.0/1.1 Ports (via headers), 3x RJ45 LAN Ports, 2x SMA Antenna Connectors (2T2R), 1x Optical S/PDIF OUT Port, Audio I/O Jacks
  • Power Connector: 1x 24-pin ATX Main Power Connector, 2x 8-pin ATX 12V Power Connector, 1x OC PEG Power Connector
  • Form Factor: EATX, 30.5 x 26.9 cm
