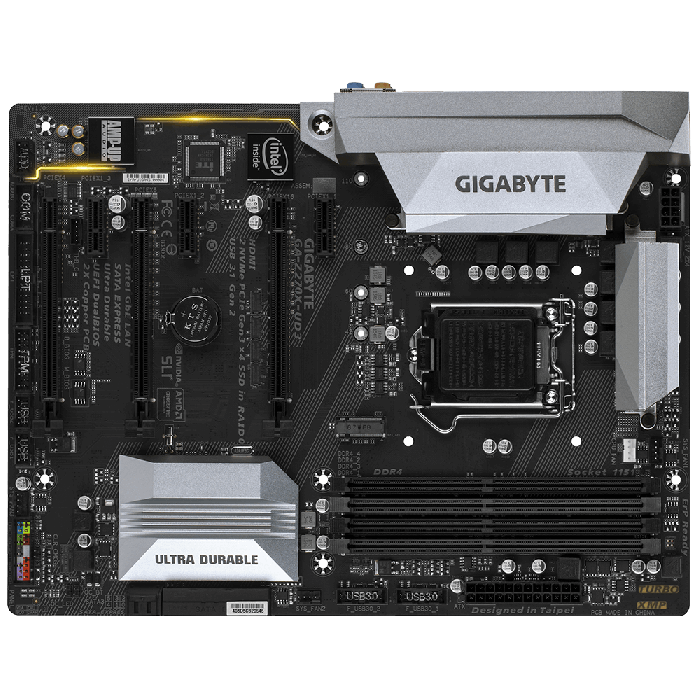

GIGABYTE Z270X-UD3,HDMI,ALC1220,LAN,ATX

GIGABYTE Z270X-UD3,HDMI,ALC1220,LAN,ATX

• Supports 7th/ 6th Generation Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Fast USB 3.1 Gen 2 with USB Type-C™ and Type-A
• 2-Way SLI™ & 3-Way CrossFire™ Multi-Graphics Support
• Dual NVMe PCIe SSDs in RAID 0 Support
• Intel® Optane™ Memory Ready
• Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
• ALC1220 120dB SNR HD Audio with Smart Headphone Amp
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• Intel® GbE LAN with cFosSpeed Internet Accelerator Software
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
• 2X Copper PCB Design
• Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
• GIGABYTE UEFI DualBIOS™
• APP Center Including EasyTune™ and Cloud Station™ Utilities

CPU

Support for 7th and 6th generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

Intel® Z270 Express Chipset

Memory

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR4 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics            Integrated Graphics Processor-Intel® HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz

* Support for HDMI 1.4 version.

Maximum shared memory of 1 GB

Audio

Realtek® ALC1220 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Intel® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x8 (PCIEX8)

* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

3 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Multi-Graphics Technology

Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies

Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies

Storage Interface             Chipset:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)

1 x SATA Express connector

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

USB        Chipset+ASMedia® ASM2142 USB 3.1 Gen 2 Controller:

1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support

1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

ŠŠ Chipset:

10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)

4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x M.2 Socket 3 connector

1 x SATA Express connector

6 x SATA 6Gb/s connectors

1 x CPU fan header

3 x system fan headers

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

2 x USB 3.1 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header

1 x Thunderbolt™ add-in card connector

1 x serial port header

1 x parallel port header

1 x Clear CMOS jumper

Back Panel Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x HDMI port

1 x USB Type-C™ port, with USB 3.1 Gen 2 support

1 x USB 3.1 Gen 2 Type-A port (red)

6 x USB 3.1 Gen 1 ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

2 x 64 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

3D OSD

@BIOS

Ambient LED

AutoGreen

BIOS Setup

Color Temperature

Cloud Station

EasyTune

Easy RAID

Fast Boot

Game Boost

ON/OFF Charge

Platform Power Management

Smart Backup

Smart Keyboard

Smart TimeLock

System Information Viewer

USB Blocker

V-Tuner

Support for 3TB+ Unlock

Support for Q-Flash

Support for Xpress Install

Bundle Software

Norton® Internet Security (OEM version)

Intel® Optane™ Memory Ready

cFosSpeed

Operating System

Windows® 10 64-bit (for 7th Generation Intel® Processors)

Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)

* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Form Factor

ATX Form Factor; 30.5cm x 22.5cm
