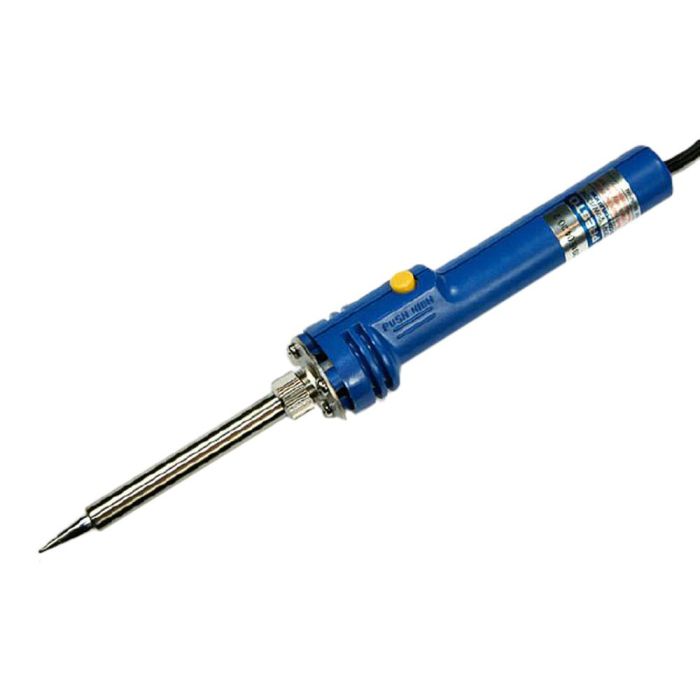

PRESTO 980 Pencil-Style Soldering Iron
The Hakko Presto iron is a 20W light-duty iron with a boost feature allowing the user to increase power to 130W for occasional heavy-duty applications.
The HAKKO Presto irons are light-duty soldering irons with a difference — there’s a (yellow) switch allowing the user to kick up the power for occasional heavy-duty applications.
The iron delivers **20W** power normally, but when quick heat-up is needed, or when a large amount of energy is temporarily required (such as soldering relays or connectors) the yellow switch allows for **130W of power**.
Two styles are available: **pencil** and **pistol**.
- Part Number: 980-V12/P (pencil-style)
- Part Number: 981-V12/P (pistol-style)
| Feature |
Specification |
| Part No. |
980-V12 |
| Type |
Pen |
| Input Voltage |
120V AC, 50/60 Hz |
| Power Consumption |
Approx. 20W |
| Operating Temperature |
Approx. 440°C (824°F) |
| Boost Temperature1 |
Approx. 630°C (1166°F) |
| Maximum Repetitive Boost Temperature2 |
Approx. 700°C (1292°F) |
| Total Length |
205 mm |
| Weight |
48 g |
1 Tip temperature after using the boost feature for 30 seconds.
2 Tip temperature after two to three repetitive uses of the boost feature for 30 seconds with an interval of 40 seconds between each boost.
Note: Continuous operation of the iron using the boost feature is not recommended and may cause damage to your iron.
