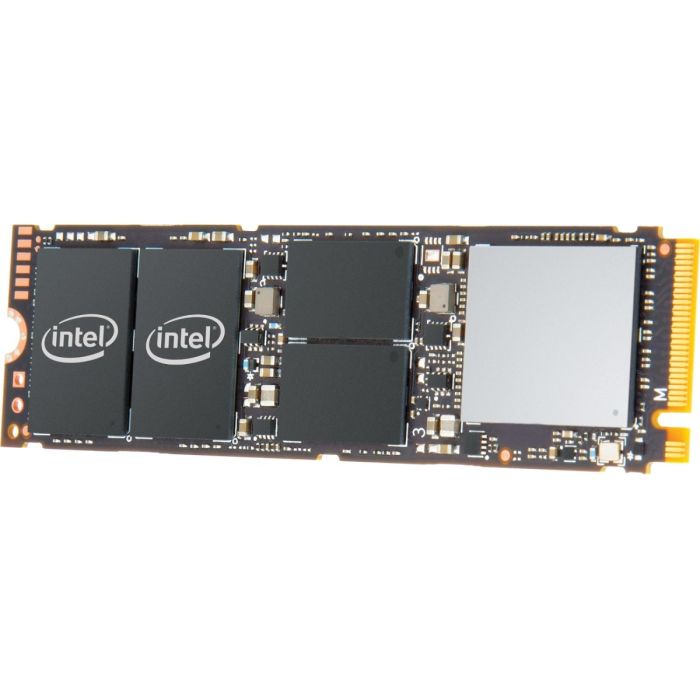

Intel 760p 128GB M.2 NVMe PCI-e x4 Solid State Drive SSDPEKKW128G8XT
Intel 760p 128GB M.2 NVMe PCI-e x4 Solid State Drive
Accelerate your PC performance with the optimal PCIe* bandwidth of the Intel® SSD 760p Series.
The Intel® SSD 760p Series combines PCIe* performance, versatile capacities, and high-quality Intel® 3D NAND technology to deliver twice capacity, twice the
performance, and up to 50% of the power consumption1 than its previous generation – the Intel® SSD 600p Series.
The Intel SSD 760p features an M.2 thin profile with PCIe Gen3 x4, NVMe* interfaces, and is ideal for a wide range of devices from desktops to laptops. The SSD is backed by a five-year limited warranty and Intel’s world-class quality leadership.
Performance to Handle Multiple Tasks
The SSD 760p is designed to effortlessly manage demanding consumer client
applications and easily handle intense multi-tasking.
The SSD 760p accelerates platform performance with sequential reads of up to 3,230 megabytes, sequential writes of up to 1625 megabytes per second (MB/s), and random read and write input/output operations per second (IOPS) of up to 340K and 275K, respectively.2
The SSD 760p enables PC users to experience enhanced efficiency with the applications they care about, and up to 6x better performance2 than SATA SSDs.
3D NAND Delivers Up to 2TB Capacity
The SSD 760p is part of the Intel® 3D NAND SSD family of products. Built on Intel® 3D NAND Technology, these SSDs are designed to transform the economics of storage. The SSD 760p offers capacity points up to 1TB on single-sided M.2, and up to 2TB on double-sided M.2, enabling system designers the flexibility to design for thin/light systems or to provide space for other components.
The combination of Intel® 3D NAND technology and PCIe enables Intel® SSDs to push the limits of performance and value.
Performance at Lower Power
The SSD 760p provides extended battery life through low power modes. It reduces idle consumption by >90% compared to a typical hard disk drive, reducing power consumption from watts to milliwatts.3 When coupled with an 8th generation Intel® Core™ processor-based platform, the advanced power mode settings reduce active and idle power consumption by up to 50% versus the prior generation device (SSD 600p Series).1
Quality & Reliability You Can Trust
The SSD 760p is backed by Intel’s five-year limited warranty, including Intel’s world- class post sales customer support. The SSD 760p also supports AES 256-bit self- encryption to provide protection of critical data stored on the device.
|Model Name||Intel® Solid State Drive 760p Series|
|Capacity (GB)||128GB, 256GB, 512GB, 1TB (all single-sided) ; 2TB (double-sided)|
|NAND Flash Memory||64-layer, TLC, Intel® 3D NAND Technology|
|Bandwidth||Sequential Read||Sequential Write (up to)4||Random Read||Random Write|
|(up to)4||(up to)4||(up to)4|
|3230 MB/s||1625 MB/s||340K IOPS||275K IOPS|
|Interface||PCIe* Gen3 x4, NVMe*|
|Form Factor, Height and Weight||Form Factor||Height/Weight|
|M.2 (80mm)||Up to 2.38mm / up to 10 grams|
|Life Expectancy5||1.6 million hours Mean Time Between Failure (MTBF)|
|Power Consumption||Active: 50mW Typical||Idle: 25mW Typical||L1.2 Sleep: 3mW Typical|
|Operating Temperature||0̊ C to 70̊ C|
|RoHS Compliance||Meets the requirements of European Union (EU) RoHS Compliance Directives|
|Software Tools||Intel® Solid State Drive Toolbox with Intel® SSD Optimizer at www.intel.com/go/ssdtoolbox|
