Open Box Apache Labs ANAN-8000DLE SN:8000DLE0103

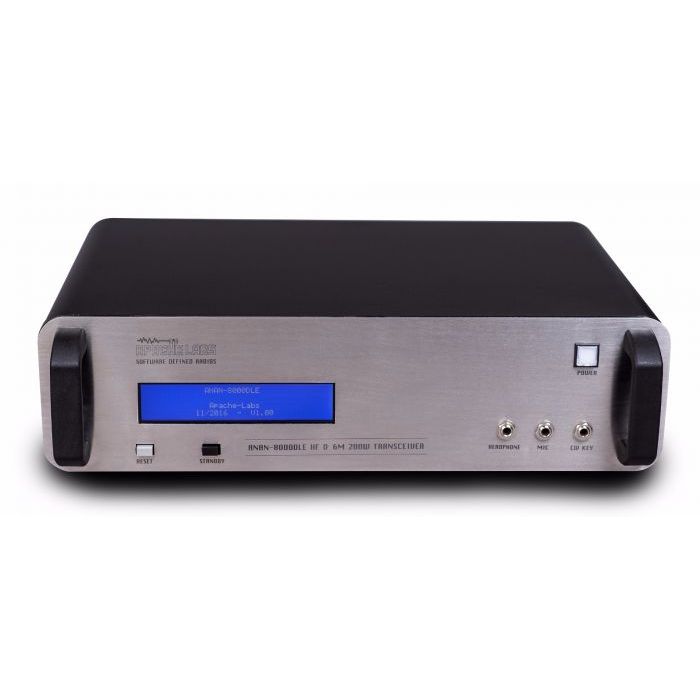

Open Box Apache Labs ANAN-8000DLE
This Apache Labs ANAN-8000DLE was opened by one of our employee's to display at a trade show. It has been powered on, but never hooked to an antenna. It includes all original packaging and presents as new -- the tape seal is the only thing that makes it indistinguishable from brand new!
The ANAN-8000DLE HF & 6M 200W SDR Transceiver meets and exceeds the requirements of even the most discerning Amateur Radio Operator. It is based on the work of the OpenHPSDR community.
Keeping in mind various new cutting edge technologies, they have been implemented into the radio. It has been re-designed from scratch; the design successes of the previous generation's hardware has been improved in this new implementation.
The ANAN-8000DLE uses an entirely new redesigned transmit chain, preserving PureSignal (Predistortion) and the result is astounding IMD performance. The typical transmit IMD distortion is about a 1000 times lower than that achieved by a typical modern transceiver available today. It is the world’s first Amateur Radio transceiver to use a 50v LDMOS device in the finals.
The ANAN-8000DLE includes two phase synchronous front ends to enable Diversity reception.
An internal four phase low noise boost supply is used to convert 13.8v to 50v for the finals. This enables the user to have the flexibility of using industry standard 13.8v DC as well as battery power whilst at the same time the radio provides all the advantages of the 50v LDMOS amplifier.
The front panel Display is microprocessor driven and displays all critical parameters such as Forward and Reflected Power, SWR, Current, Voltage, and Temperature. The microprocessor also provides real time protection for all these parameters.
Please note that output on HF bands may well exceed 200Ws, it is recommended that the User cap the output at 200Ws, on 6M it is normal to have maximum output between 175-200W.
- Architecture: Direct Sampling DDC/DUC Transceiver
- Interface: Ethernet
- Phase Noise (Clock): -149dB @ 10Khz
- TCXO Stability (Typical): /- .1 PPM
- Modes: CW, SSB, NFM, AM, Digital
- Antenna Ports: Three SO-239 50 ohms Software Configurable Ports, One BNC for RX2
- Frequency Resolution: 1 Hz
- 13.8v DC @ 35A, 3A Receive/35A Transmit
- 12Kg (approx. Weight)
- Dimensions: 483MM (L) x 123MM (H) x 320MM (D) (Not including extrusions)
- Stainless Steel Chassis and Aluminum Heatsink
- Receiver Architecture: Direct Down Conversion
- Dual 16 bit Phase Synchronous ADCs
- Independent filter banks for each ADC
- 10/6M LNAs
- Frequency Coverage: 9Khz to 60Mhz
- Attenuator: 1-30dB step attenuator
- Reciprocal Mixing Dynamic Range (RMDR): 116dB @ 2Khz
- Receiver Phase noise: -149dB @ 10Khz
- Image rejection: 100dB
- Hardware support for 7 independent receivers assignable to either ADC
- Transmitter Architecture: Direct Up Conversion
- DAC Resolution: 16 bit
- RF Output Power: 1-200W SSB, CW, FM, RTTY, Digital; 1-50W AM
- IMD: IMD3 typically -72dB @ 200W output on 20M
- Harmonics: Typically better than -50dBc on HF and -60dBc on 6M
- Carrier and Opposite Sideband Suppression: Better than -80dBc
- Transverter IF Output: 0db to 15dB
- RCA Line In, Line Out, PTT in, PTT Out
- DB9 Seven Software configurable Open Collector Outputs
- BNC XVTR TX Out, 10Mhz Reference Input
- 6.25mm Barrel Mic, CW Key, Headphones and Speaker Outputs
- SMA PureSignal (Predistortion) Loop Input and Output
- RJ45 Ethernet LAN Connector
