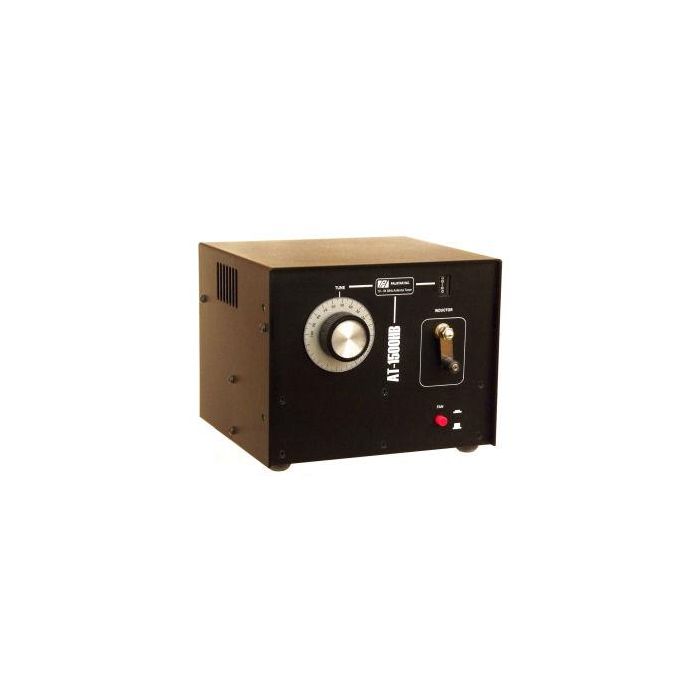

RF Matching Network - A Fan cooled, High-pass network with shunt variable inductor (8 uH) and differential capacitor (240 pF x 2). Frequency range is from 6Mhz to 54Mhz.
- Network Configuration: High-pass network with shunt variable inductor (8 uH) and differential capacitor (240 pF x 2), Fan cooled.
- Frequency Range: 6Mhz to 54Mhz
- RF Power Rating: Up to 1500 Watts single tone carrier, 100% duty cycle with fan on
- Connectors: SO239 or Optional N type
- Case: .090" Iridite-treated aluminum; powder coated front panel and top cover
- DC Power (inductor cooling fan): 12VDC @ 200mA; standard 3pin Amphenol type connector
- Dimensions: 9.25" W x 8" H x 9.5" D
