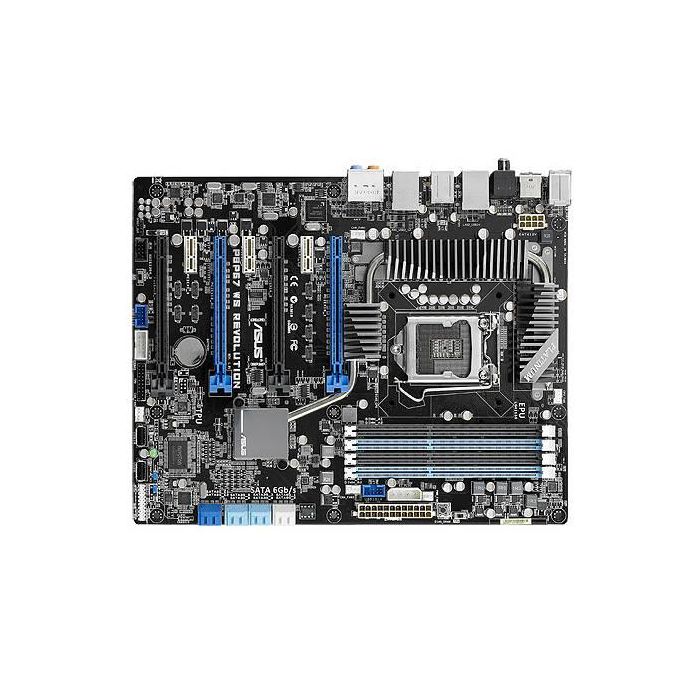

ASUS P8P67 WS REVOLUTION REV 3

Refurbished - Asus P8P67 WS REVOLUTION   LGA1155/ Intel P67 B3/ DDR3/ Quad CrossFireX & 3-Way SLI/ SATA3&USB3.0/ A&GbE/ ATX Motherboard

Specifications:

• Mfr Part Number: P8P67 WS REVOLUTION
• CPU: LGA1155
  • Supports 2nd and 3rd Generation Intel Core i7/ i5/ i3 Processors
  • Supports Intel E3-1200/12x5 v2 Processors
  • Supports Intel E3-1200/12x5 Processors
  • Supports Intel 32 nm CPU
  • Supports Intel Turbo Boost Technology 2.0
  • Supports IV Bridge CPU
• Chipset: Intel P67 (B3) / NVIDIA NF200
• Memory: 4x DDR3-2133OC/1866OC/1600/1333/1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 4x PCI-Express 2.0 x16 Slots (three run at x8), 3x PCI-Express 2.0 x1 Slots
• Multi-Graphics: Supports AMD Quad-GPU CrossFireX and 3-Way SLI Technology
• SATA: 4x SATA2 Ports, Support RAID 0/ 1/ 5/ 10; 4x SATA3 Ports, Two Support RAID 0/ 1/ 5/ 10, Two Support RAID 0/ 1
• Audio: Realtek ALC889 8-Channel High Definition Audio CODEC
• LAN: Integrated Intel 82574L and Intel 82579 Gigabit Ethernet Controllers
• Ports: 14x USB 2.0 Ports (8 rear, 6 at mid-board), 2x USB 3.0 Ports, 1x PS/2 Keyboard/Mouse Combo Port, 2x IEEE 1394a Ports (1 rear, 1 via header), 1x Coaxial S/PDIF Out, 1x Optical S/PDIF Out, 2x RJ45 LAN Ports, Audio I/O Jacks
• Power Connector: 1x 24pin EATX Power Connector, 1x 8pin ATX 12V Power Connector, 1x 4pin EZ_PLUG Power Connector
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.5 cm
