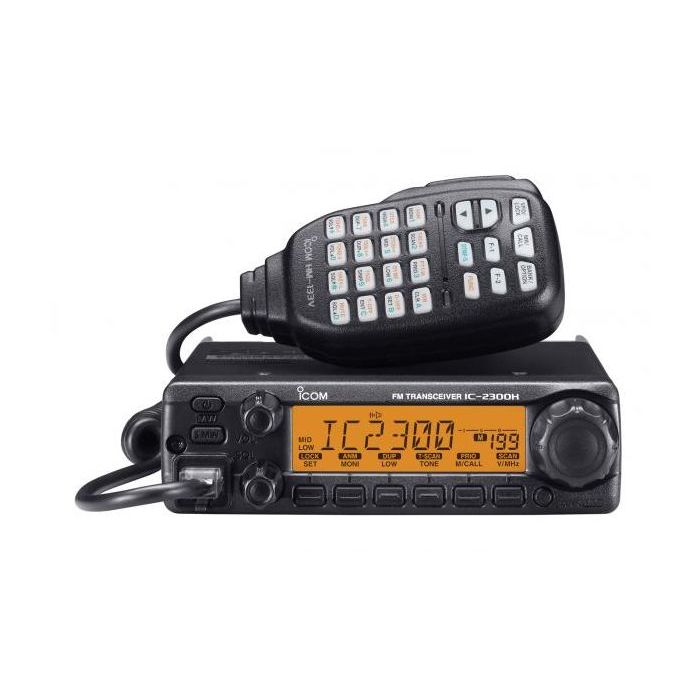

Store Demo Icom IC-2300H 2m 65w Mobiel Transceiver S/N: 05004024
Tested and works as designed
NOTE: Just the radio, no original box/microphone/power cable or manual....just the radio
The IC-2300H is the update model of the popular IC-2200H. The IC-2300H retains the same basic features from the IC-2200H; powerful 65W output power, simple-to-use user interface, built-in CTCSS and DTCS encoder/decoder, etc. While keeping those basic features, the IC-2300H is packed in to a smaller body (in depth) than the IC-2200H.
So Many Features
Stable 65W of output
Similar user interface retained from the IC-2200H
Proven durability – Tested to the latest MIL-STD-810 G Specifications
207 Alpha-Numeric memory channels
Built-in CTCSS and DTCS encoder/decoder
Stable 65W of output power
The IC-2300H can generate 65W of output power. The rugged aluminum diecast chassis provides effective heat dissipation and keeps RF output even during high duty cycle continuous transmission. Output power is selectable in 4-steps (65/25/10/5W*). * Depending on version.
Simple operation retained from the 2200H
The IC-2300H retains the basic panel layout and its user interface from the IC-2200H. Current IC-2200H users will be comfortably familiar with the IC-2300H operation. The bottom of the display indicates the available functions of the front panel buttons directly below the display.
Selectable LCD backlight color
The IC-2300H has a 70.6×20 mm LCD display with 6 large alphanumeric characters offering a good viewing angle suitable for mobile operation. The backlight color of the display is selectable from amber, yellow and green for your visual enjoyment.
A total of 207 memory channels
The IC-2300H has a total of 207 memory channels, including 200 regular channels, 6 scan edges and 1 call channel. The channel name is programmable with 6 characters for easy recognition.
Built-in CTCSS and DTCS encoder/decoder
The CTCSS and DTCS tones are built-in for quiet stand-by and repeater access. The tone scan function detects the sub-audible tone that is used for repeater access. The pocket beep function gives you an audible and visual indicator of an incoming call.
Tested to the MIL-STD 810 G specifications
The IC-2300H is built tough to protect from a rough road. It has been tested to and has passed the latest MIL-STD 810 G specifications including shock, vibration and temperature tests.
Multiple scan functions
Full scan
Programmed scan
Memory scan
Bank scan
Bank link scan (DMS)
Skip scan
Priority scan
Tone scan
Other features
Power supply voltage display
4.5W (typical) loud audio
Reduced depth dimensions
DTMF autodial
Time-out timer
Repeater lockout
Automatic power off
S-meter squelch
Wide/narrow channel setting
Volume up/down function added to the remote control microphone, HM-133V
Weather channel receive and weather alert function (USA version only)
Automatic repeater function (USA version only)
Selectable squelch delay from short and long
Squelch attenuator reduces suppression from string signals
PC to transceiver cloning and transceiver to transceiver cloning capability
