World’s first constant F/2.8 in APS-C ultra wide-angle zoom lens category, now available in Canon RF mount!

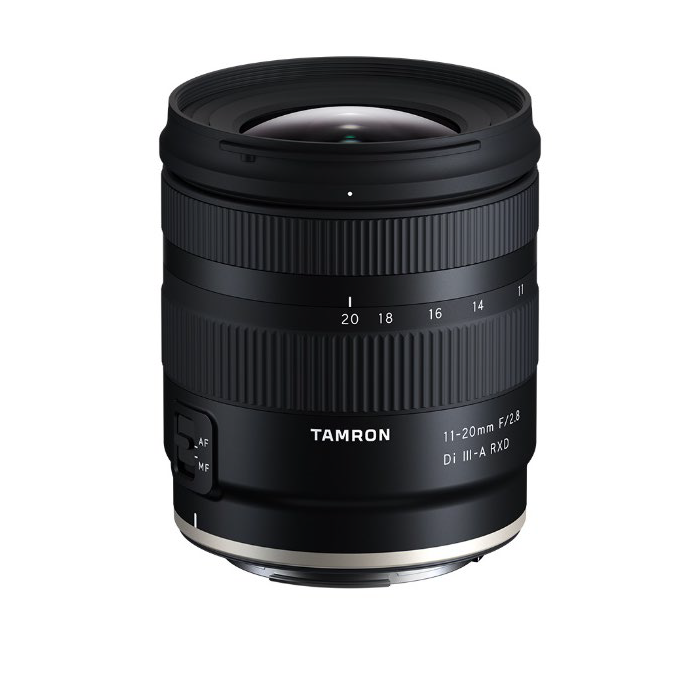

Offering the unprecedented brightness of constant F2.8 and outstanding portability, the 11-20mm F/2.8 Di III-A RXD (Model B060) is a fast-aperture ultra wide-angle zoom lens that covers a full-frame equivalent of 17.6ｍｍ-32ｍｍ, from ultra wide to semi-wide angle.
This lens is designed for those who want to achieve the following: an expression of bokeh that can't be achieved with an F4 zoom, image with minimum noise that captured in low light conditions which APS-C cameras struggle with, and a compact and lightweight lens for comfortable use in both still photography and video shooting with a small tripod or gimbal.
This lens fulfills these desires by offering new expressions in various shooting scenes; from landscape of dynamic perspective at 11mm to snapshots and group shots at 20mm.
The 11-20mm F2.8 is a fast-aperture zoom lens covering a focal length range from ultra wide-angle 11mm to 20mm, with a maximum aperture of F2.8 across its full range of focal lengths. With a surprisingly compact and lightweight design for a fast ultra wide-angle zoom, the lens feels well balanced when attached to a compact APS-C mirrorless camera body, making it ideal for daily use. Despite its small, lightweight design, the lens delivers high-level imaging power with its uncompromising optical design.
Wide macro shooting is possible at 11mm with an MOD of 0.15m (5.9") and maximum magnification ratio of 1:4. Its stunning close-range shooting performance enables creative use of perspective at the wide end. The lens also incorporates an AF drive system with an RXD (Rapid-eXtra-silent stepping Drive) stepping motor unit that is remarkably quiet. The 11-20mm accurately captures not only still images but also video. It is highly practical, with Moisture-Resistant Construction, Fluorine Coating, and other features designed for outdoor shooting, letting users easily enjoy the high image quality of this ultra wide-angle fast -aperture F2.8 lens under a range of conditions.
Key Features
- Fast-aperture ultra wide-angle zoom lens
- Compact size, just 84.2mm (3.3") long and 340g (12oz)
- Outstanding optical performance
- MOD of 0.15m (5.9") and maximum magnification ratio of 1:4
- High performance autofocus system for both still and video use
- The CANON RF mount includes an AF/MF switch.
- Connector Port for users to easily update the lens to the latest firmware via TAMRON Lens Utility™ software.
- Moisture-Resistant Construction and BBAR-G2 and Fluorine Coating
- Ø67mm filter size, same as most other TAMRON lenses for mirrorless cameras
Design
- Compact and lightweight size to match mirrorless APS-C camera bodies. Ideal lens for shooting video using a gimbal.
- 67mm filter diameter
- Physical Lens Diameter – 2.87” (73mm)
- Length – 3.3” (84.2mm) at 20mm position; 3.89” (99mm) at 11mm position
- Weight – 12 oz. (340g)
- Combined weight with Canon APS-C body of as little as 25.22 oz (715g)
Moisture-Resistant Construction
- 9 seals and gaskets throughout the lens, including front element and lens mount
- Fluorine coating on front element to repel water and oil, making lens surface easier to clean and less vulnerable to the damaging effects of dirt, dust, moisture, and fingerprints.
- 7-blade circular aperture
- Pleasing bokeh and circular defocused point light sources
Other Features
- AF/MF switch (only on Canon RF mount)
- Tamron Lens Utility - Proprietary software tool TAMRON Lens Utility for lens function customization (only on Canon RF mount)
- This lens is compatible with the TAMRON Lens Utility. TAMRON Lens Utility can be operated using computer on Android app by connecting the lens from its Connector Port via a USB-C cable (sold separately). Users can update the firmware through the lens – noTAP-in Console required.
Optical Design
- 12 elements in 10 groups
- One XLD (Extra Low Dispersion) lens element and two GM (molded glass aspherical) lens elements are used to achieve extremely high resolution from center.
- Two LD (Low Dispersion) lens elements suppress chromatic aberrations.
- Utilizes camera body correction capability to achieve even greater contrast and higher resolution.
- Outstanding Optical Performance
- RXD Focusing System
- Equipped with RXD (Rapid eXtra-silent stepping Drive).
- The stepping motor used is an actuator that can control the motor’s rotation angle accurately without speed-reduction gears, and can directly actuate the focusing lens element, which is good for silent shooting and provides great AF performance for videography
- Close Focusing
- Minimum Operating Distance (MOD) of
- 5.9” (0.15m) at 11mm
- 9.4” (0.24m) at 20mm
- Maximum magnification ratio
- 1:4 at 11mm
- 1:7.6 at 20mm
Feature Compatibility
Fully compatible with Canon’s main camera-specific features and functions
This lens is right for you if you are...
- A user who is interested in fast, ultra-wide angle zoom
- A mid-level user who desires to have a more compact/lightweight wide-angle zoom
UPC: 725211600039
