TYT MD-380G (NO GPS)
Huntsville:
Las Vegas:
Distribution Center:
TYT MD-380G 400-480MHz 5W UHF DMR Digital Radio Handheld Transceiver (without GPS)
This version of the MD-380G does NOT include GPS. If you would like the MD-380G with GPS, click HERE.
The TYT MD-380G is an excellent value if you are looking for a way to get into DMR. The MD380G offers 5W of output power with lower output settings available. It is compatible with Mototrbo Tier 1 and 2. This UHF DMR radio has a frequency range of 400-480MHz. It features 1000 channels, remote kill/stun/activate, voice prompt, a color LCD, built-in CTCSS/DCS, priority scan, DTMF decoding and encoding, private call, group call and all call in digital mode. In the box with the TYT MD-380G you will find a standard stubby antenna, a high gain antenna, ear-piece, a 2000mAh Li-ion battery, belt clip, charging cradle, wall adapter, user manual, programming cable and software. Be sure to purchase your TYT MD-380G from GigaParts today!
**Use of "MD-380 Tools" software will void your warranty.**
- Emergency Call
- Short Text Message via Keypad
- Quick Text Messages
- Manual Dial
- Remote Monitor
- Remote Check
- Remote Disable/Enable
- Enhanced Encryption
- Private/Group/All Call
- Lone Worker
- Power On Password
- Programming Password
- Zone Selection
- Date/Time Programmable
- Remote Kill/Stun/Activate
- Voice Prompt
- Power-On Protection
- Color LCD Display
- Text Messages in Digital Mode
- Encryption Function
- Built-in CTCSS/DCS
- Up to 1000 Channels
- Priority Scan
- Complying with digital protocol ETSI TS 102 361-1, -2, -3
- Compatible with MotoTRBO Tier I & II
- DTMF decoding and encoding
- Updated Software available for new features
- Private Call, Group Call, All Call in Digital Mode
- Operate in both Digital and Analogue mode, allows easy migration from Analog to Digital
- Provide clearer voice communications in digital mode, throughout the coverage area
| General: | |
| Frequency Range | UHF:400-480MHz |
| Channel | 1000 Channels |
| Channel spacing | 12.5KHZ |
| Operating voltage | 7.4v |
| Battery type | Li-ion |
| Operating temperature | -30℃+60℃ |
| Store temperature | -40℃+85℃ |
| Antenna Impedence | 50Ω |
| Audio output power | ≤1000mW@16Ω |
| Battery capacity | 2000mAh standard Li-ion battery |
| Dimension(H*W*D) | 131*61*36mm |
| Weight | 258g |
| Transmitter: | |
| Output power | High: ≤5W(HI) / Low: ≤1W(Low) |
| Frequency stability | +/-1.0ppm |
| Adjacent channel Power | ≤-60dB |
| Free time slot power | TDMA: ≤57dBm |
| Hum and Noise | -40dB @ 12.5KHZ |
| Spurious Radiation | Antenna:9KHz-1GHz≤-36dBm |
| 1GHz-12.75GHz ≤-30dBm | |
| FM modulation mode | 12.5KHZ:11K0F3E |
| 4FSK digital mode | 12.5KHZ(data only):7K60FXD |
| 12.5KHZ(data+voice):7K60FXE | |
| Modulation Maximum Deviation | 2.5KHZ@12.5KHZ |
| Nonactive slot power | -57dBm |
| Digital protocol | ETSITS102 361-1 -2 -3 |
| Vocoder type | AMBE+2TM |
| Audio response | +1dB~-3dB |
| Modulation BER(Bit error rate) | ≤5% |
| Receiver: | |
| Analog sensibility | 0.35uV/-116dBm(20dB SINAD) / 0.22 uV/-120dBm(Type) |
| Digital sensibility | 0.3 uV/-117.4dBm(BER 5%) / 0.22 uV/-110dBm(BER 1%) |
| Co-channel Rejection | ≥-12dB |
| Spurious response | TIA603C: 75dB ETSI: 70dB |
| Adjacent channel selectivity | TIA603C: 65dB ETSI: 60dB |
| Rated audio power | 1W |
| Audio response | =1dB~-3dB |
| Rated audio distortion | 3%(Type) |
| Spurious radiation | Antenna:9KHz-1GHz ≤-57dBm / 1GHz-12.75GHz ≤-47dBm |

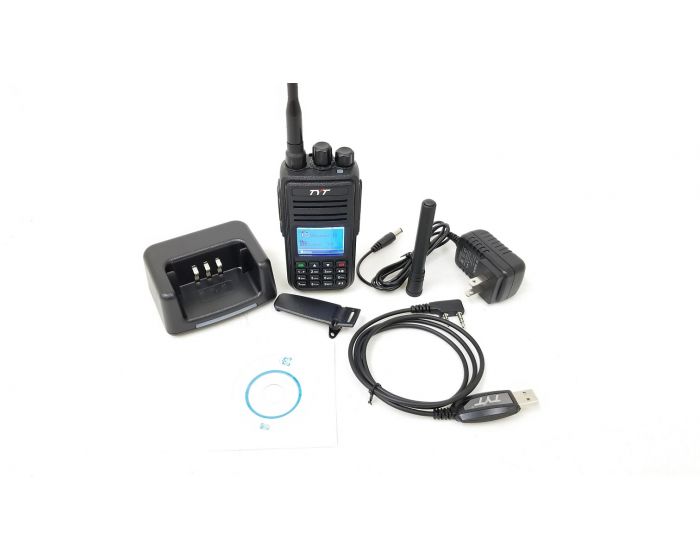

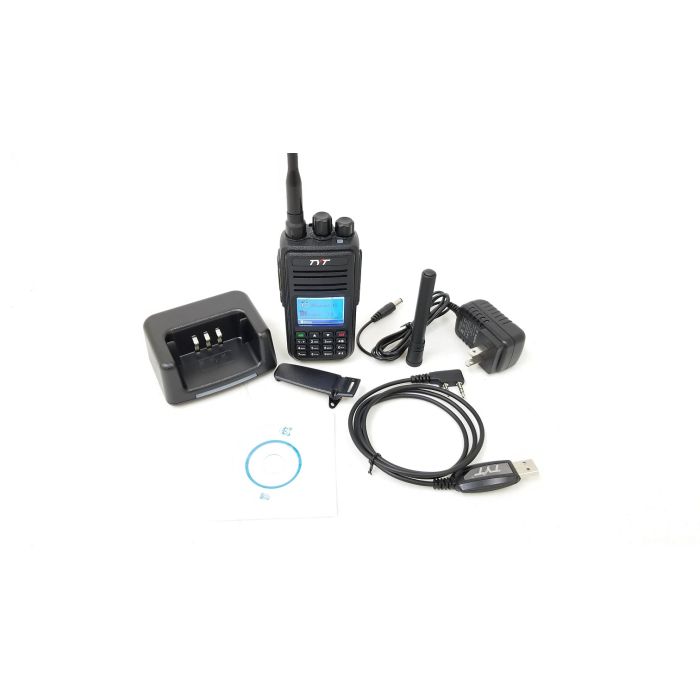

- TYT MD-380G Transceiver (without GPS)
- Antenna
- Li-ion Battery
- Belt Clip
- Charger
- Wall Adapter
- User Manual
- Programming Software
- Programming Cable
