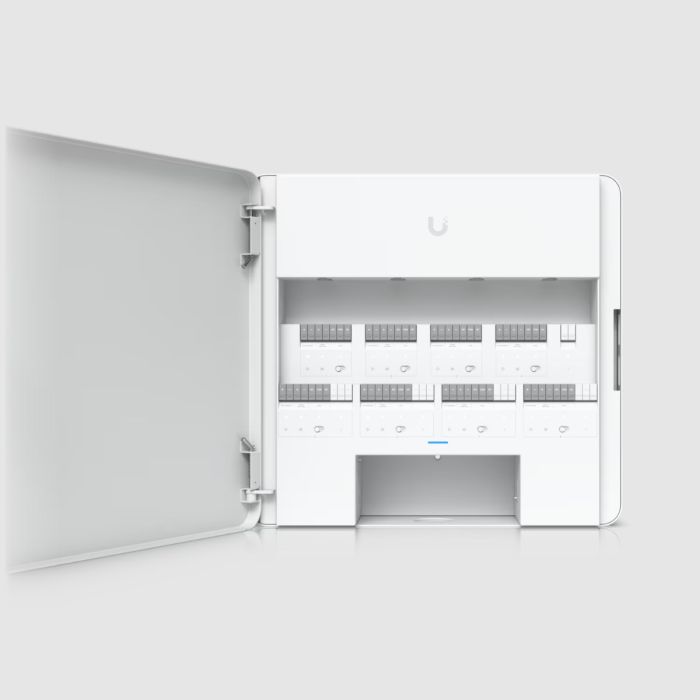

Enterprise Access Hub
Enterprise-grade access hub with entry and exit control up to eight doors and battery backup support.
The Enterprise Access Hub is a robust, enterprise-grade solution designed to provide comprehensive entry and exit control for up to eight doors. Ideal for large-scale deployments, this hub integrates seamlessly with the UniFi Access application and features critical battery backup support to ensure continuous operation during power outages.
Key Features:
- Multi-Door Control: Manages access control for up to eight doors simultaneously, making it suitable for larger premises.
- Battery Backup Support: Features power input for 32–48V DC lead-acid batteries (Max. 7.5A @32V), providing essential backup during power interruptions.
- Extensive Input Terminals: Includes eight inputs for door exit requests, eight for door position sensors, and one for emergency events.
- Versatile Relay Outputs: Offers eight lock terminals (12V or Dry) and four AUX terminals (Dry only) for advanced setups like chimes, sirens, or door openers.
- PoE Output for Devices: Provides eight PoE outputs (15.4W max per port, 60W total) to power connected UniFi Access Readers and other PoE devices.
- Gigabit Networking: Equipped with ten 10/100/1000 Base-T networking interfaces for high-speed data communication.
- Universal Power Input: Supports universal AC input (100–240V AC, Max. 4.4A, 50/60 Hz) for global compatibility.
- Robust & Secure Design: Features an SGCC steel housing with a polycarbonate cover and is designed for indoor use.
- UL 294 & NDAA Compliant: Meets UL 294 Level I standards (Destructive attack, Line security, Endurance, Standby power) and is NDAA compliant, ensuring high security and reliability.
- Wide Operating Range: Operates reliably in ambient temperatures from 0 to 40° C (32 to 104° F) and 5 to 95% noncondensing humidity.
- Optimized Cable Lengths: Provides recommended maximum cable lengths for various electric and magnetic locks (UA-Lock-Electric, UA-Lock-Magnetic-540kg, UA-Lock-Magnetic-270kg, and other locks).
- Management: Managed via the UniFi Access application.
- Certifications: Holds CE, FCC, IC, UL 294, and CAN/ULC-60839-11-1 certifications.
- Factory Reset Button: Includes a button for easy device reset.
