4.3" LCD Display with Composite Input for Raspberry Pi

The display is very easy to use - simply connect 4.5-15VDC to the red and black wires, then connect a composite video source to the yellow and black wire. Voila, a television display! There's a little button to adjust the LED back-light brightness (5 levels) - there is no other adjustment available but we found that the color and contrast look great right out of the box.

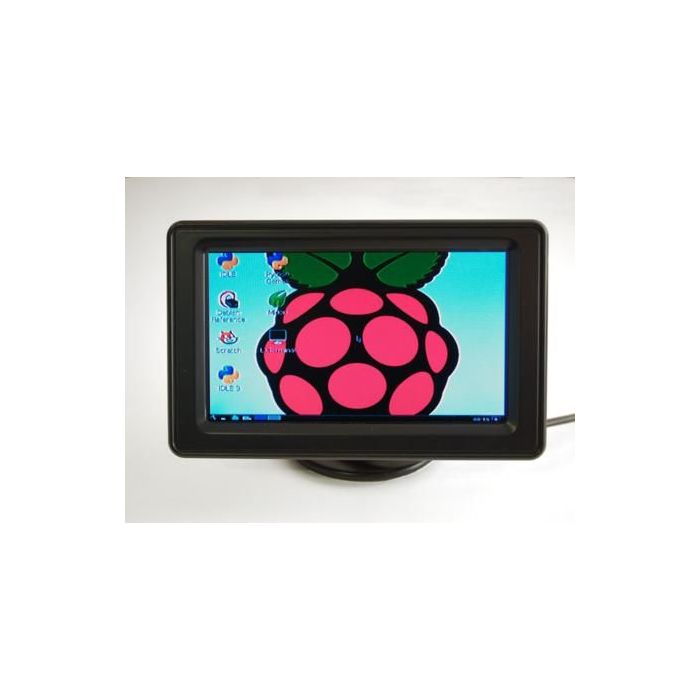

To demonstrate it, photos were taken with the display connected to a Raspberry Pi, but it will also work connected to any analog composite-video output such as a YBox or Propeller w/Video out. It will not work with a device that only outputs VGA, HDMI or any other digital video signal.

A power adapter is not included you will want a 9VDC 1 Amp or 12VDC 1 Amp adapter,  Even though the display specifies 12VDC it works from 5V to 12V DC without problems.

Please note, these miniature displays are very delicate and require care to avoid ripping the delicate flex connector. These are best used by electronics geeks who have experience and are comfortable working with delicate electronic components. WE CANNOT REPLACE DAMAGED DISPLAYS if you are not careful and rip the flex connector!

Features

  • Power with 5-12VDC only, ~2.5W power draw
  • Internal buck converter, 220mA power draw at 12V, 420mA at 5V
  • Visible display dimensions: 97.41mm x 56.10mm
  • Selectable 16:9 or 4:3 ratio via menu
  • Resolution: 480 x RGB x 272
  • Brightness: 300cd/m2
  • Contrast: 350:1
  • Display plastic case dimensions: 122.65mm x 77.6mm
  • Weight (including power cable): 148.64g
