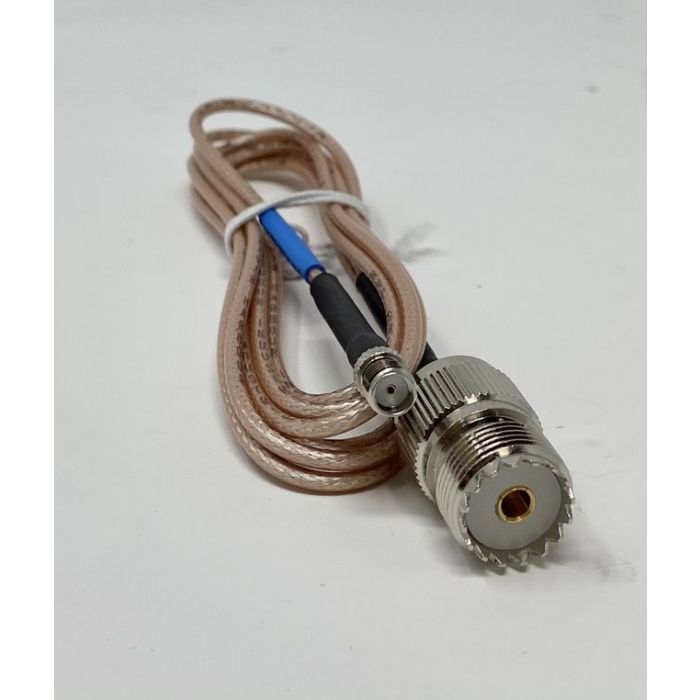

6ft ABR316 Jumper with SMA-F to SO-239 - 23316-SF-SO-6

Name: 6ft ABR316 Jumper with SMA-F to SO-239 - 23316-SF-SO-6
Brand: ABR Industries
SKU: ZAB-23316-SF-SO-6
Price: 30.56 USD
Availability: InStock

SKU: ZAB-23316-SF-SO-6

Availability:

In stock

$30.56

VIP Price

After Mail-In Rebate

SAVE $5.39

Regular Price: $35.95

Description

Specifications

Model Number / Part Number: ABR315/23316

Description: 50 Ohm RG-316/U Teflon

Suitable application: RF Communication / Government

Physical Characteristics

Center Awg	26ga (0.018")
Stranding	1 Solid
Conductor Material	Silver
Dielectric Material	PTFE
Nominal Diameter	0.060"
Braid Awg	36
Braid Coverage	95%
Final Jacket Material	FEP
Overall Jacket	0.102"
Final Jacket Color	Tan

Nominal Attenuation

Impedence	50 Ohms
Capacitance	29.4 pF/foot
Velocity of Prop	69%

Attenuation / Average Power

Frequency (MHz)	Nom db/100	Average Power (KW)
30	4.3	1.09
50	5.6	0.84
150	9.8	0.48
220	11.9	0.39
450	17.2	0.27
900	24.7	0.18
1500	32.3	0.14
1800	35.5	0.13
2000	37.6	0.12
2500	42.4	0.10
5800	66.9	0.06
8000	80.0	0.05
