bhi Compact in-line DSP Noise Cancelling Module
Compact mono/stereo DSP noise canceling unit ideal for portable use!
Improve your listening experience with the bhi Compact In-Line module!
Compact portable DSP noise canceling unit

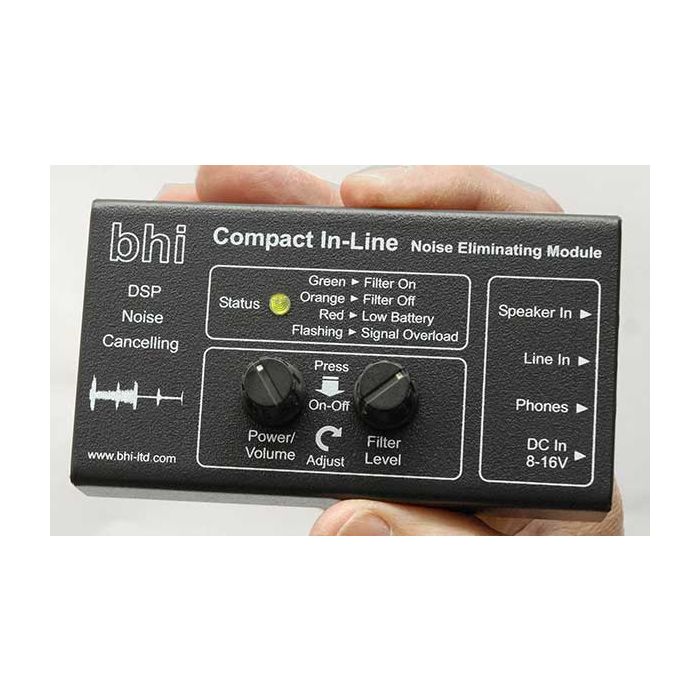

Thebhi Compact In-Line module measures just 125 x 70 x 37 mm is ideal for a base station or portable use. The unit includes the latestbhi DSP noise-canceling technology and is suitable for use on all radios and receivers and software defined radios (SDR), which includes Elecraft and FlexRadio products.
Compact In-Line connections
The Compact In-Line module can be powered from a 12V DC power supply or by two AA alkaline or NiMH batteries. Input connections are made via the separate 3.5mm speaker level and line level audio input sockets. The output socket can drive a pair of stereo headphones, a mono loudspeaker or a pair of powered stereo speakers.
Simple operation
All the Compact In-Line functions are controlled via the two rotary pushbutton controls on the unit. They are easily adjusted to suit your current noisy conditions. The “Power/Volume” control switches the unit on and off and adjusts the audio volume. The “Filter Level” control allows to adjust the filter level in real time and turn the filter on and off. You can also select between mono and stereo mode with the two rotary controls.
- Compact handheld DSP noise-canceling module
- Latest bhi DSP noise-canceling technology
- Processed speech clearer and more intelligible
- Easy to use controls for all functions
- Use with mono, stereo or two separate audio channel inputs
- Ideal for portable use, DXing, and special event stations
- Use with headphones,a passive speaker or powered speakers
- Over 40 hours battery life with 2 x AA alkaline or AA NiMH batteries
Power Supply:
External supply: 8 to 16V (nominally 30mA, max 350mA peak)
Reverse polarity protected
Internal batteries: Type: AA x 2 (Alkaline or NiMh recommended)
Reverse polarity protected
Low battery indication threshold: 2.1V ±0.1V
Low battery indication: LED colour changes to red.
End-of-life threshold: <1.5V
Life: 40 hours typical (Alkaline or 2500mAH NiMh).
Auto power-off: 60 minutes if input signal < 60mVpk-pk
Auto power-off can be disabled if desired.
Audio Inputs
Speaker level in: Stereo or Mono
Input Impedance: ~7 Ohms
Max withstand input power: 2 Watts RMS per channel
Max input amplitude: 3.9Vpk-pk
Line level in: Stereo of Mono
Impedance: 6.7k Ohms typical
Max input amplitude: 1.6Vpk-pk
Overload indication: LED flashes for at least 3 seconds
Audio Outputs
Phones out: Stereo or Mono
Impedance: > 4 Ohms (Can also be used as Line Level output).
Max power output: 0.2 Watts RMS per channel
Volume levels: 16 levels in 3dB steps.
DSP Noise Filtering
Modes: Enabled / Disabled (0dB suppression)
Levels: 8
Noise suppression: 8 to 40dB
Size & weight
Size 125 x 70 x 37mm
Unit weight 0.125Kg
