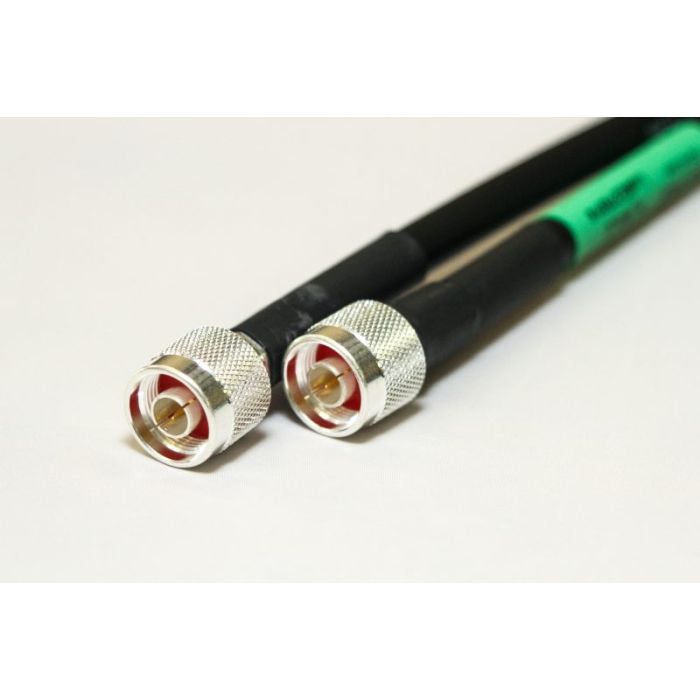

ABR400 Low Loss cable N Male on both ends, 25ft
Find all of your PolyPhaser lightning surge protectors here!
24400-FR Low Loss RF Cable
Low Smoke Zero Halogen
ABR#: 24400-FR (Low Smoke Zero Halogen) is a low loss high-performance cable in the RG8 category. As an alternative to CommScope® WBC-400, Andrew® CNT-400 coax cable, Belden® 9913, TerraWave TWS-400 and Times Microwave Systems® 400-Type.
•Solid BCCA Center Conductor.
•Low Loss
•95% TC Braid + 100% Foil Shield
•Same size as RG8 .400″
•The shield, a foil+braid combination is 50 dB greater than typical single shielded coax (40 dB). and is typically at > 90 dB (i.e. >180 dB between two adjacent cables).
•A wide array of connector choices are stocked.
•WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas.
Nominal Attenuation/per 100ft
•0.7dB @ 30MHz 3.33kW. 85.6% E.
•0.9dB @ 50MHz 2.57kW 81.7% E.
•1.5dB @ 150MHz 1.47kW 70.2% E.
•2.7dB @ 450MHz 0.83kW 53.6% E.
•3.9dB @ 900MHz 0.58kW 40.7% E.
•VP: 84%, RoHS Compliant.
