144MHz/430MHz FM Dualband
5W Handheld Transceiver
Amazing high performance,compact size, and full featured!

Engineered for success, this dual-bander is packed with features:
  • Large, dot-matrix, 3 color-selectable (orange,white,cherry-blossom) display and keypad
  • Semi-Duplex dualband, V/V-U/U and FM broadcast receiver
  • 200 memory channels, any mix of VHF/UHF
  • Internal VOX
  • Alphanumeric channel labels
  • Direct frequency input from keypad
  • Landmobile-grade signaling features
  • Variety of scanning modes
  • IP54 dust/splash proof, MILSPEC (STD810) vibration/shock compliant
  • Wide and narrow FM TX/RX
  • 12Vdc input using an optional cigar-socket adapter.

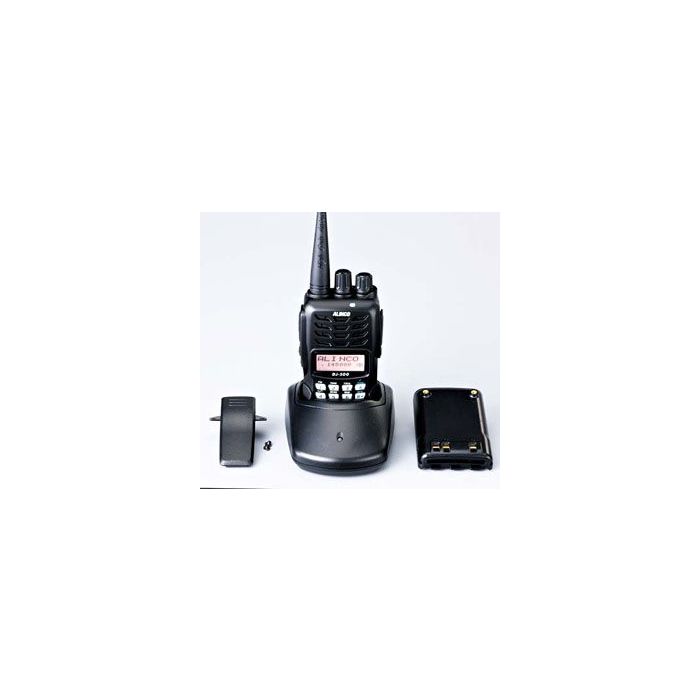

  • High power Li-Ion battery pack, stand charger and beltclip included
  • PC cloning capability (optional ERW-4/7 required, free utility software)
SPECIFICATIONS
General
Frequency range:
[T: TX] 144 - 148MHz, 420 - 450MHz
[T: RX] 136 - 174MHz, 400 - 480MHz

Modulation:
F3E (FM)
Frequency step:
2.5, 5, 6.25, 8.33, 10, 12.5, 20, 25, 30 and 50KHz
Memory channel:
200 memory channels in total
Antenna impedance:
50ohm unbalanced
Frequency stability:
+/- 2.5ppm
Supply voltage:
DC 7.4V (Battery)
Current consumption:
(Typical value)
1400mA TX / 300mA receive at Max audio output
70mA squelched
Battery-save ON: average 27mA
Temperature range:
Unit -20 ~ +55digC (-4 ~ 131digF) / Battery packs: -10digC to +45digC (+14 to +113digF)
Ground:
Negative
Dimensions:
59.0W~98.0H~35.0D mm or 2.32W~3.86H~1.38D inches w/o projection
Weight:
approx.227g or 8.01oz inclusive of battery pack and antenna
Transmitter
Power output:
(Approx.value)
Approx.5 / 2.5 / 1W
Modulation:
Variable reactance FM
Spurious emission:
-60dB or less
Max. deviation:
FM : +/- 5KHz NFM: +/- 2.5KHz
Receiver
System:
Direct-conversion
Sensitivity:
Wide -12dBu / Narrow -9dBu
Intermediate frequency:
1st IF 38.85MHz 2nd IF 450kHz
Selectivity:
-6dB : Wide 12kHz /Narrow 10kHz or more
-60dB :Wide 30kHz / Narrow 24kHz or less
AF output:
1W (10% distortion)
