Alinco DJ-MD5TGP Dual Band DMR Part 90 HT w/GPS

The DJ-MD5 series is Part 90 certified.

Alinco adds Dual Band DMR VHF/UHF DJ-MD5TGP HT Part 90 with GPS transceiver to its existing line-up of Digital Commercial/Business or Amateur Radio handhelds. The DJ-MD5TGP has a compact and durable IP54 Rated polycarbonate body. Designed to resist dust and splash, the DJ-MD5T has features specs such Color LCD Display, 5W Output Power, up to 4000 Memory Channels and Built-in GPS. Capable of operating in Digital and Analog with mixed mode in VFO or Memory mode.

The DJ-MD5TGP utilizes DVSI's AMBE+2 vocoder for Crystal clear DMR digital audio for use in noisy environments like contraction sites, parks, security applications or your favorite repeaters coverage area with no noise or fading even in low lying areas. The DJ-MD5T has powerful audio output power to insure loud crisp receive audio.

  • LCD Display: Vibrant 1.77in Color LCD Display, enhances user experience with detailed and clear Radio Activity in both Bands as the same time.
  • Higher Channel: Available 4000 Memory Channel capacity and 160000 contacts allows users to maximize their entire list of Favorite Talkgroups.
  • GPS Capability: GPS position reporting

For Manuals, Drivers and Basic Utilities, please direct yourself here and go to the "Downloads" tab.

  • DMR Tier I and Tier II
  • 1.77 inch TFT color LCD
  • GPS Built-in
  • VFO/MR Switch
  • Output power selectable (5W/2.5W/1W/0.2W)
  • 4000 channel memory
  • SMS (Digital mode)
  • Communication recording (Digital mode)
  • Individual/Group/All call (Digital mode)
  • CTCSS/DCS/DTMF/2Tone/5Tone encode and decode (Analog mode)
  • Selectable battery-save
  • 1700mAh Li-ion battery

Frequency Coverage      VHF 136-174MHz / UHF 400-480MHz

Modulation        Two-Slot TDMA (Tier 1/ Tier II)

Channel Capacity              4000

Zone Capacity    250 Zones (250CH/ Zone)

Channel Spacing               Digital 12.5KHz Analog 12.5KHz/25KHz

Operating Voltage           DC 7.4V normal

Operating Temperature Range   -4°F~122°F (-20°C~ +55°C)

Frequency Stability          +/-2.5ppm

Antenna Impedance       50 ohms

Battery 1700mAH Li-ion (EBP-88)

Dimensions (w/Batt.) 2.32 x 4.65 x 1.57 in. (W x H x D)

Weight (w/Batt.)              Approx. 256 g /9.03 oz (w/Batt. & Antenna)

Certifications     FCC Part 90/ IC RSS119 (Pending)


Output power

5W/ 2.5W/ 1W/ 0.2W


FM Hum and Noise

25KHz: 45dB 12.5KHz: 40dB


Spurious Emission

-36dBm@<1GHz, -30dBm@>1GHz


Adjacent Channel Power

60dB@12.5KHz, 70dB@25KHz


Modulation (Digital)



Modulation (Analog)



Digital Vocoder


Analog Sensitivity         25kHz: 0.2uV 12kHz: 0.25uV

Digital Sensitivity          5% : 0.3μV 1% : 0.7μV

Intermodulation           60dB

Spurious Response Rejection    70dB

Audio Output   1W/ 16ohms

Audio Distortion           Less than 5% (typical


EBP-88 7.4V 1700mAh Li-ion Battery Pack
EDC-189A Li-ion Desk Battery Charger

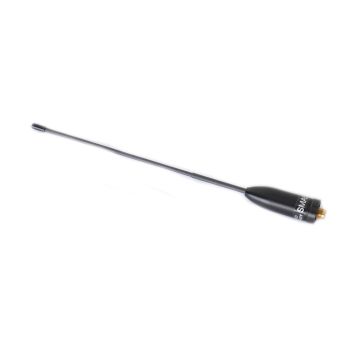

EA-228 J Type SMA Antenna
EDC-191T 120 Volt AC Adapter
EBC-34 Belt Clip
ERW-21 PC Interface Cable
