Alinco DR-06T 6m FM Mobile Radio
Huntsville:
Las Vegas:
Distribution Center:

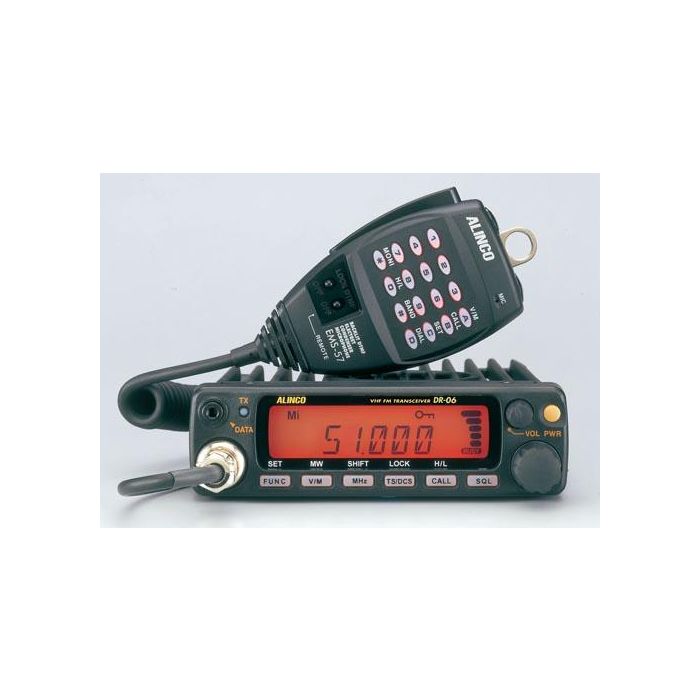

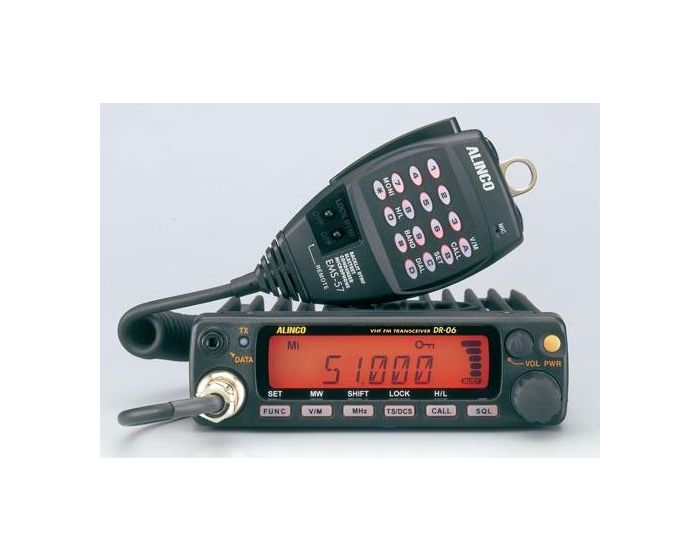

6m FM Mobile radio
Revised NEW circuit to be compliant to RoHS/Lead-free order in EU.
-
- Same key-operations as DR-135-435 series mobile radios.
- EJ-41U internal TNC board is available as an option for 1200/9600bps packet (DR-06T only), no need to remove mic for packet operation.
- DR-06T 50 watts, H(50W)/M(20W)/L(5W) power settings.
- 100 memory channels.
- Front panel data port (DR-06T only)
- Rear panel DSUB9 computer connection (DR-06T only)
- CTCSS, DCS encode+decode, DTMF encode and Tone-burst are all standards
- Clean, clear Alinco audio
- Super-wide 7 character alphanumeric display
- Wide and narrow FM modes (16K0 & 8K50F3E / DR-03T is fixed for NFM)
- Theft alarm feature
- A large, palm-fitting commercial-grade backlit microphone with a metal connector (not a modular plug) as well as direct frequency input and direct multi-function access such as monitor, call channel, power setting, memory to VFO plus more!
- Stays in mode you select (voice/packet) through power off cycles
- Ten autodial memories
General:
Frequency range:
TX(T):
DR-06T: 50~53.995MHz
RX(T):
DR-06T: 40~69.995MHz
Operating mode
DR-06T/16K0F3E (FM)/8K50F3E (NFM)
F1(9600bps)/F2(1200bps)/10F3 optional with EJ-41U/EJ-47U on DR-06T
Channel steps 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 KHz
Memory channel 100 channels + 1 quick recall (CALL)
Antenna impedance 50ohm unbalanced
Frequency stability +/- 7ppm
Power supply requirement 13.8V DC +/- 15% negative ground
Current drain DR-06T:Approx. 11.0A TX High
RX both models: Approx. 0.6A max
Usable temperature range -10digC to +60digC (+14digF to 140digF)
Dimensions (w/o projection) 140(W) x 40(H) x 174(D) mm
5.59"(W) x 1.57"(H) x 6.85"(D)
Weight Approx. 1.0Kg (35.3oz)
Transmitter
Power Output
DR-06T Approx. 50W / 10W(HI)
Approx. 20W / 5W(MID)
Approx. 5W /2W(LOW)
Modulation system Variable reactance frequency modulation
Spurious emission Less than -40dB
Maximum frequency deviation +/- 5 KHz (FM) / +/- 2.5 KHz (NFM)
Receiver
Receive system Double-conversion superheterodyne
Sensitivity (-12dB SINAD) Less than -12.0dBu
Intermediate frequency 1st IF 10.7MHz, 2nd IF 450 KHz
Selectivity -6dB: +/-12KHz or more (FM)
-60dB: +/-28KHz or less
-6dB: +/-6KHz or more (NFM)
-60dB: +/-16KHz or less
Audio output power More than 2.0W(8ohm 10%THD)
General:
Frequency range:
TX(T):
DR-06T: 50~53.995MHz
RX(T):
DR-06T: 40~69.995MHz
Operating mode
DR-06T/16K0F3E (FM)/8K50F3E (NFM)
F1(9600bps)/F2(1200bps)/10F3 optional with EJ-41U/EJ-47U on DR-06T
Channel steps 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 KHz
Memory channel 100 channels + 1 quick recall (CALL)
Antenna impedance 50ohm unbalanced
Frequency stability +/- 7ppm
Power supply requirement 13.8V DC +/- 15% negative ground
Current drain DR-06T:Approx. 11.0A TX High
RX both models: Approx. 0.6A max
Usable temperature range -10digC to +60digC (+14digF to 140digF)
Dimensions (w/o projection) 140(W) x 40(H) x 174(D) mm
5.59"(W) x 1.57"(H) x 6.85"(D)
Weight Approx. 1.0Kg (35.3oz)
Transmitter
Power Output
DR-06T Approx. 50W / 10W(HI)
Approx. 20W / 5W(MID)
Approx. 5W /2W(LOW)
Modulation system Variable reactance frequency modulation
Spurious emission Less than -40dB
Maximum frequency deviation +/- 5 KHz (FM) / +/- 2.5 KHz (NFM)
Receiver
Receive system Double-conversion superheterodyne
Sensitivity (-12dB SINAD) Less than -12.0dBu
Intermediate frequency 1st IF 10.7MHz, 2nd IF 450 KHz
Selectivity -6dB: +/-12KHz or more (FM)
-60dB: +/-28KHz or less
-6dB: +/-6KHz or more (NFM)
-60dB: +/-16KHz or less
Audio output power More than 2.0W(8ohm 10%THD)
