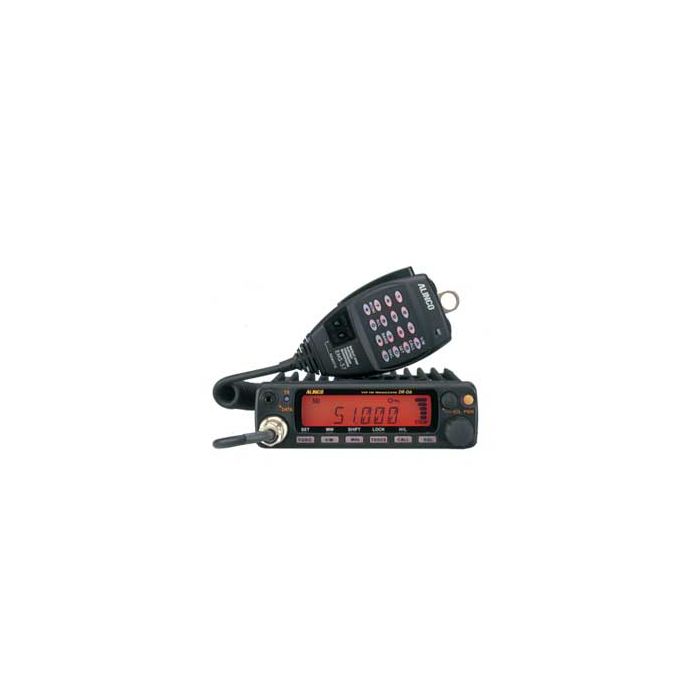

Alinco DR-06TA 6 meter, 50 watt FM Mobile Transceiver

Alinco DR-06TA is an updated compact 6 meter, 50 watt FM Mobile Transceiver. With DR-06TA you will find exciting worldwide FM communications! Working DX is possible over a thousand miles taking advantage of unique propagation such as Sporadic-E, F2 reflection and scatters just to name a few. Of course even without favorable propagation conditions, repeaters will keep you communicating with friends just like other HF bands as well.



DR-06TA Features



Revised NEW circuit to be compliant to RoHS/Lead-free order in EU.

Same key-operations as DR-135-435 series mobile radios.

50 watts, H(50W)/M(20W)/L(5W) power settings.

100 memory channels

Front panel data port

Rear panel DSUB9 computer connection

CTCSS, DCS encode+decode, DTMF encode and Tone-burst are all standards

Clean, clear Alinco audio

Super-wide 7 character alphanumeric display

Wide and narrow FM modes (16K0 & 8K50F3E)

Theft alarm feature

A large, palm-fitting commercial-grade backlit microphone with a metal connector (not a modular plug) as well as direct frequency input and direct multi-function access such as monitor, call channel, power setting, memory to VFO plus more!

Stays in mode you select (voice/packet) through
power off cycles

Ten auto-dial memories

SPECIFICATIONS
Frequency range TX(T): 50~53.995MHz
RX(T): 40~69.995MHz
Operating mode 16K0F3E (FM)/8K50F3E (NFM)
Channel steps 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 KHz
Memory channel 100 channels + 1 quick recall (CALL)
Antenna impedance 50ohm unbalanced
Frequency stability +/- 7ppm
Power supply requirement 13.8V DC +/- 15% negative ground
Current drain TX: Approx. 11.0A
RX: Approx. 0.6A max
Usable temperature range 14°F ~ 140°F (-10°C ~ +60°C)
Dimensions (w/o projection) 5.59"(W) x 1.57"(H) x 6.85"(D) in.
140(W) x 40(H) x 174(D) mm
Weight Approx. 1.0Kg (35.3oz)
CTCSS tone encoder/decoder 39 tones
Digital Coded Squelch encoder/decoder 104 codes
TRANSMITTER
Output power Approx. 50W (HI)
Approx. 20W (MID)
Approx. 5W (LOW)
Modulation system Variable reactance frequency modulation
Spurious emission Less than -40 dB
Maximum frequency deviation +/- 5 KHz (FM) / +/- 2.5 KHz (NFM)
RECEIVER
Receive system Double-conversion superheterodyne
Sensitivity (-12dB SINAD) Less than -12.0dBu
Intermediate frequency 1st IF 10.7 MHz, 2nd IF 450 KHz
Selectivity -6dB: +/-12KHz or more (FM)
-60dB: +/-28KHz or less
-6dB: +/-6KHz or more (NFM)
-60dB: +/-16KHz or less
Audio output power More than 2W(8ohm 10%THD)
STANDARD ACCESSORIES
  • Instruction Manual.
  • EMS-57 DTMF Microphone
  • Mounting Bracket w/Screws
  • DC Power Cable
  • Microphone holder
  • Alarm cable
OPTIONAL ACCESSORIES
  • EMS-53 Plain Non-DTMF Microphone
  • EMS-14 Desktop Microphone
  • ERW-7 or ERW-15 USB Programming cable
  • Alinco Power Supply DM-330/30T/430T
  • RT Systems (APK-DR06) Programming software pack
