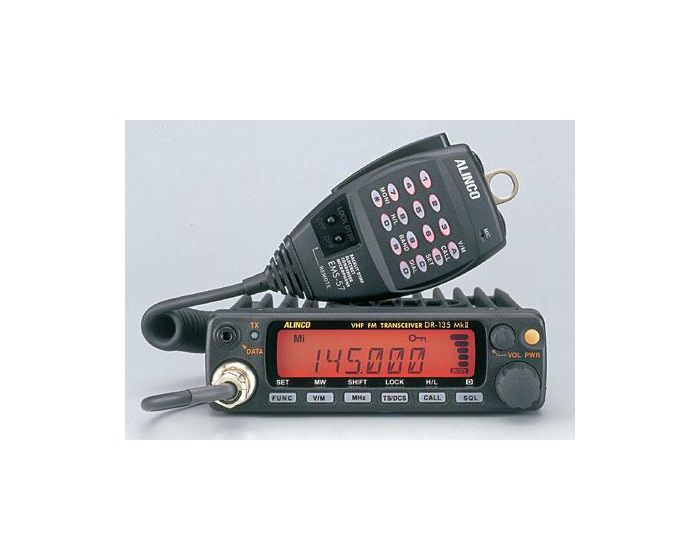

Alinco DR-135T 2m Mobile radio, black

SKU
ZAL-DR-135T
$169.95
Add to Wish List

This item is currently out of stock. We are not accepting backorders at this time.

Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

2m Mobile radio, black

Revised NEW circuit to be compliant to RoHS/Lead-free order in EU.
Voice-only FXE-version available (European model only, EJ-41U/47U not usable).
EJ-41U internal TNC board is available as an option for 1200/9600bps packet 50 watts, H/M/L power settings 100 memory channels.
Front panel data port Rear panel DSUB9 computer connection
No need to remove mic for packet operation
Ignition key on/off feature
CTCSS, DCS encode+decode, DTMF encode and Tone-burst are all standards Clean, clear Alinco audio
Super-wide 7 character alphanumeric display
Wide and narrow FM modes (16K0 & 8K50F3E)
Theft alarm feature
A large, palm-fitting commercial-grade backlit microphone with a metal connector (not a modular plug) as well as direct frequency input and direct multi-function access such as monitor, call channel, power setting, memory to VFO plus more!
Stays in mode you select (voice/packet) through power off cycles
Ten autodial memories

Frequency range:TX(T):
144-147.995MHz (FM)
RX(T):
118-135.995 MHz (AM)
136-173.995MHz (FM)
TX&RX(E): 144-145.995MHz
Operating mode:16K0F3E (FM)/8K50F3E (Narrow-FM)
F1(9600bps)/F2(1200bps)/10F3 * 1
/A3E (RX only DR135TMkII)
Channel steps:5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 KHz
Memory channel:100 channels + 1 quick recall (CALL)
Antenna impedance:50ohm unbalanced
Frequency stability:+/- 2.5ppm TCXO
Power supply requirement:13.8V DC +/- 15% negative ground
Current drain:Approx. 11.0A TX High
Approx. 0.4A squelched
Usable temperature range:-10digC to +60digC (+14digF to 140digF)
Dimensions (w/o projection):142(W) x 40(H) x 174(D) mm
5.59"(W) x 1.57"(H) x 6.85"(D)
Weight:Approx. 1.0Kg (35.3oz)
Transmitter
Power Output:Approx. 50W(HI)
Approx. 20W(MID)
Approx. 5W(LOW)
Modulation system:Variable reactance frequency modulation
Spurious emission:Less than -60dB
Maximum frequency deviation:+/- 5 KHz (FM) / +/- 2.5 KHz (NFM)
Receiver
Receive system:Double-conversion superheterodyne
Sensitivity (-12dB SINAD): *2Less than -16.0dBu
Intermediate frequency:1st IF 21.7MHz, 2nd IF 450 KHz
Selectivity: *2-6dB: 12KHz or more
-60dB: 28KHz or less (FM)
-6dB: 6KHz or more
-60dB: 16KHz or less (NFM)
Audio output power:More than 2.0W(8ohm 10%THD)
Note:* 1 Optional units required
* 2 Typical within the amateur radio band(s).
Optional Accessories
MicrophonesEMS-53 Plain microphone
EMS-57 DTMF/Remote microphone
Separation Cable
Digital voice unitEJ-47U
TNC unitEJ-41U
DC Power supplyDM330MVT (120VAC) 30A switching
DM330MVE (240VAC) 25A switching
