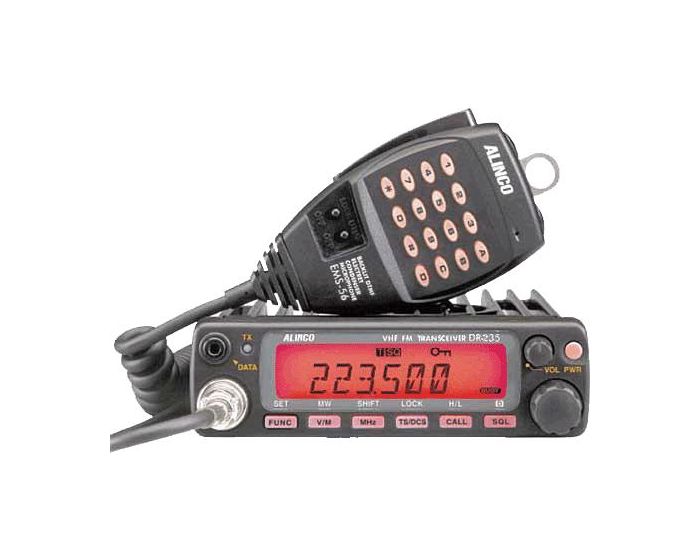

DR-235TMKIII 25W FM Mobile/Base unit
Features of DR-235TMkIII:
EJ-41U internal TNC board is available as an option for 1200/9600bps packet
EJ-47U digital voice F1E board available as an option
+/-2.5ppm Frequency stability with TCXO circuit
25 watts, H/M/L power settings
100 memory channels
Front panel data port
Rear panel DSUB9 computer connection
No need to remove mic for packet operation
Ignition key on/off feature
CTCSS, DCS encode+decode, DTMF encode and Tone-burst are all standards
Clean, clear Alinco audio
Super-wide 7 character alphanumeric display
Wide and narrow FM modes (16K0 & 8K50F3E)
Theft alarm feature
A large, palm-fitting commercial-grade back-lit microphone with a metal connector (not a modular plug)
Stays in mode you select (voice/packet) through power off cycles
Ten auto-dial memories and more....at Low Alinco price!
| General | |||||
| Frequency range |
| ||||
| Operating mode | 16K0F3E (FM)/8K50F3E (Narrow-FM) | ||||
| Frequency resolution | 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 KHz | ||||
| Memory channel | 100 channels + 1 call channel | ||||
| Ant. impedance | 50 ohm unbalanced | ||||
| Frequency stability | +/- 2.5 ppm | ||||
| Microphone impedance | 2K ohm | ||||
| Rated voltage | 13.8 VDC +/- 15% (11.7-15.8V) | ||||
| Current | Transmit: approx. 8.0A Receive: approx. 600mA (Max) 400mA (Squelched) | ||||
| Operating temperature | -10Dig.C to +60Dig.C (+14Dig.F to +140Dig.F) | ||||
| Ground | Negative ground | ||||
| Dimensions | 142(W) x 40(H) x 174(D) mm 5.58"(W) x 1.57"(H) x 6.83"(D) | ||||
| Weight | Approx. 1.0Kg (35.3oz) | ||||
| Transmitter | |||||
| Power output | 25W (HI) 10W (MID) Approx. 5W (LOW) | ||||
| Modulation | variable reactance | ||||
| Spurious emission | -60 dB or less | ||||
| Maximum frequency deviation | +/- 5 KHz / +/- 2.5 KHz (Narrow mode) | ||||
| Receiver | |||||
| Circuitry | Double-conversion superheterodyne | ||||
| Sensitivity | -12.0 dBu (0.25uV) or less (12dB SINAD) | ||||
| Intermediate frequency | 1st IF 30.85MHz, 2nd IF 455 KHz | ||||
| Squelch sensitivity | -16.0 dBu (0.1 uV) | ||||
| Selectivity (-6 dB) | 12 KHz or more 6 KHz or more (Narrow mode) | ||||
| Selectivity (-60 dB) | 28 KHz or less 14 KHz or less (Narrow mode) | ||||
| Audio output | 2.0 W (8 ohm, 10% distortion) | ||||
