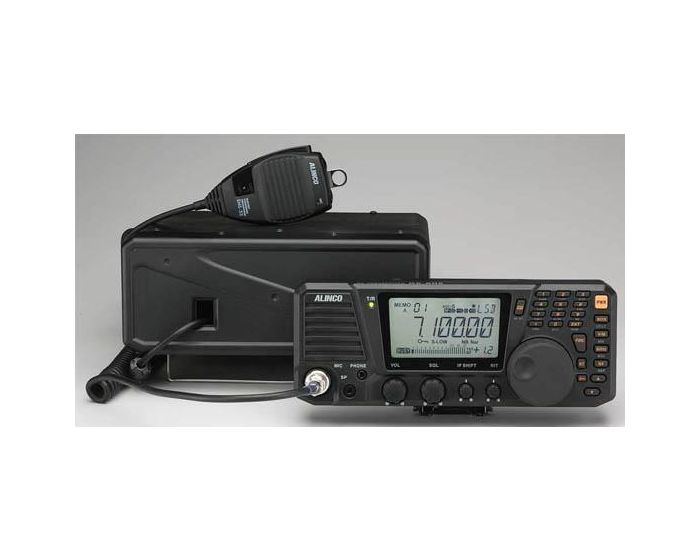

Alinco DX-SR8T HF Base radio, All-Mode, 100W
Check Store Stock
Features of DX-SR8T/E
- Coverage of All short-wave and HF amateur bands
(DX-SR8T North American /DX-SR8E European and other regions)
Covers the 160m to 10m amateur bands including 5.3MHz (T-model only) in SSB, CW, AM and FM modes. Output power is 100W SSB/CW and FM, 40W in AM with low and super-low power settings for QRP operation. In addition, the general coverage receiver covers 135KHz to 30MHz in all modes.
- Detachable front control panel
Completely detachable front control panel with large LCD display lets you install the radio with greater flexibility whether in your car, boat or your shack. (Optional EDS-17 cable required)
- Direct DATA entry via the key pads
While the main dial tunes at the default 10Hz/resolution (adjustable in set mode), the numerical key pads can be used for fast direct frequency input, band selection and more.
- Fight QRM with these STANDARD features
Reject unwanted signals with the IF shift. Choose a narrow filter, a noise-blanker or use RIT/TXIT to stay out of QRM.
- Emphasis on CW Operation
An electronic keyer unit is standard. You can receive CW using either upper or lower side of the carrier frequency. Choice of side tone pitch, FULL (QSK), Semi or Auto break-in, split, narrow filter, AGC and RF gain.
- World-class transmit audio quality
A dynamic microphone (T/E models) and a speech compressor come standard for sharp, clear and powerful transmitting audio.
- Enhanced scan modes
A variety of scan modes are available including Priority, Search, Busy, Timed, Memory and Programmed search. Timed scan setting does not require squelch-mute so you are able to monitor data-modes and broadcasts simultaneously with memory search scan.
- Additional convenient features include
RF Attenuator and Pre-amplifier selectable in 4 steps, / 3 TX power output levels with a Super-Low setting (QRP 0.1W~2W variable) / Dual VFO / 600ch memories in 3 banks / Connections for Auto-antenna tuner and Liner amplifier ALC output / Fully independent AF level, squelch, RIT and IF shift knobs / Dial lock and key lock / TX-RX lamp / Alphanumeric display / Auto-power-off / CTCSS encode for 10m FM repeater accesses / Microphone, Headphone and External speaker jacks on the front panel / Large, temperature-controlled internal cooling fan with anti-overheat output power limiter/ High-SWR protection and more!
- EMS-64 (SR8E/SR8T: Dynamic)
- DC cable
- Microphone hanger EBC-7
- EDX-2 automatic long-wire antenna tuner
- EDS-17 Front control remote kit (5m cable, front panel bracket, unit cover and hardware)
- EMS-14 Desktop microphone
- DM330/340MV series DC power supplies
