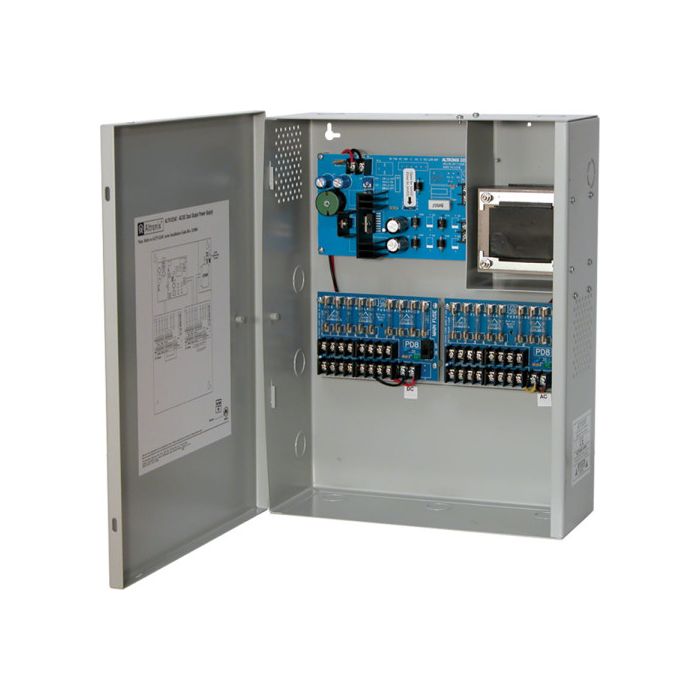

Altronix ALTV1224C 16 Output 12VDC/24VAC Power Supply - ALTV1224C

Altronix ALTV1224C 16 Output 12VDC/24VAC Power Supply - ALTV1224C

Input

• 115VAC 50/60 Hz, 1.52A.

Output

• Sixteen (16) individually fused outputs.
• Eight (8) fuse protected outputs @ 12VDC.
• Eight (8) fuse protected outputs @ 24VAC.
• 7A total output current.
• 3.5A supply current @ 12VDC.
• 3.5A supply current @ 24VAC.
• Output fuses are rated @ 3.5A/250VAC.
• Main fuses are rated at 5A/250VAC.
• Filtered and electronically regulated outputs (DC outputs).
• Surge suppression (AC outputs).

Features

• AC/DC power LED indicators.
• Power ON/OFF switch.
• Unit maintains camera synchronization.
• Ease of installation saves time & eliminates costly labor.

Temperature

• Operating 0° C to 49° C (32° F to 120° F).
• Storage - 20° C to 70°C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr (approx.): 64 BTU/Hr.
• System AC input VA requirement: 174.8VA.
