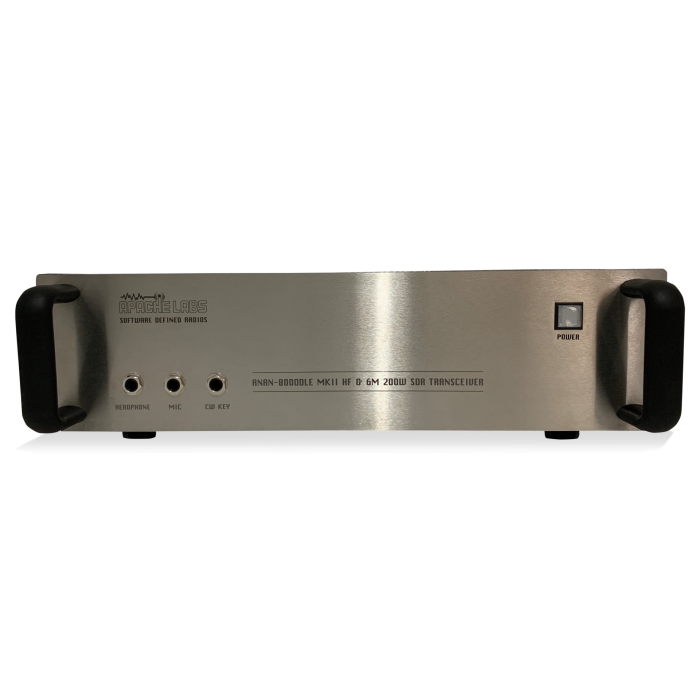

The ANAN-8000DLE MKII builds on the 8000DLE and provides the same performance in a smaller footprint and at a much lower price point!
Please note that output on HF bands may well exceed 200Ws, it is recommended that the User cap the output at 500W.
Keeping in mind the various requirements posed by new cutting edge technologies implemented in the radio it has been designed from scratch, the design successes of the previous generation hardware has been improved in the new implementation.
The ANAN-8000DLE MKII uses an entirely new redesigned transmit chain keeping in mind PureSignal (Predistortion), the result is astounding IMD performance, the typical transmit IMD distortion is about a 1000 times lower than that achieved by a typical modern transceiver available today. It is the world’s first Amateur Radio transceiver to use a 50v LDMOS device in the finals.
The ANAN-8000DLE MKII includes two phase synchronous front ends to enable Diversity reception.
General Specifications:
Architecture: Direct Sampling DDC/DUC Transceiver
Interface: Ethernet
Phase Noise (Clock): -149dB @ 10Khz
TCXO Stability (Typical): /- .1 PPM
Modes: CW, SSB, NFM, AM, Digital
Antenna Ports: Three SO-239 50 ohms Software Configurable Ports, One BNC for RX2
Frequency Resolution: 1 Hz
Electrical Specifications:
48v DC @ 12A, 1A Receive/12A Transmit
Mechanical Specifications:
12Kg (approx. Weight)
Dimensions: 443MM (L) x 114MM (H) x 304MM (D) (Not including extrusions)
Stainless Steel Chassis and Aluminum Heatsink
Receiver Specifications:
Receiver Architecture: Direct Down Conversion
Dual 16 bit Phase Synchronous ADCs
Independent filter banks for each ADC
10/6M LNAs
Frequency Coverage: 9Khz to 60Mhz
Attenuator: 1-30dB step attenuator
Reciprocal Mixing Dynamic Range (RMDR): 116dB @ 2Khz
Receiver Phase noise: -149dB @ 10Khz
Image rejection: 100dB
Hardware support for 7 independent receivers assignable to either ADC
Transmitter Specifications:
Transmitter Architecture: Direct Up Conversion
DAC Resolution: 16 bit
RF Output Power: Details available soon
IMD: IMD3Details available soon
Harmonics: Typically better than -50dBc on HF and -60dBc on 6M
Carrier and Opposite Sideband Suppression: Better than -80dBc
Transverter IF Output: 0db to 15dB
IOs:
RCA Line In, Digital In, PTT in, PTT Out
DB9 Seven Software configurable Open Collector Outputs
SMA XVTR TX Out, 10Mhz Reference Input
6.25mm Barrel Mic, CW Key, Headphones and Speaker Outputs
SMA PureSignal (Predistortion) Loop Input and Output
RJ45 Ethernet LAN Connector
