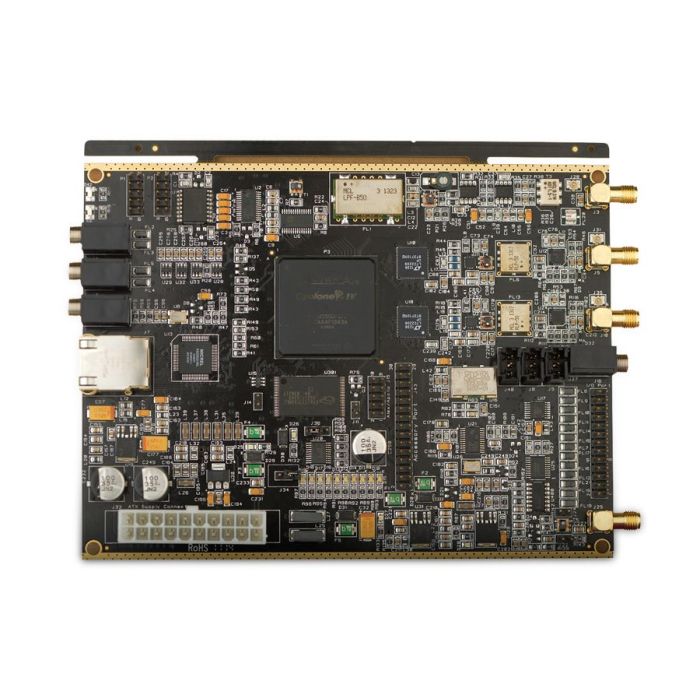

Apache Labs Angelia Card

Angelia Card (Assembled & Tested) 90 Days Warranty

ANGELIA is a state-of-the-art soft core uP 4th generation DDC/DUC, Hermes-like, transceiver
board that incorporates an Altera Cyclone IV FPGA and dual LTC2208 ADCs. The large FPGA and
dual ADCs permit exceptional versatility and performance. The FPGA is large enough to allow
on-board, soft-core processing, if desired, and the dual ADCs allow true coherent receiver
operations.

Highlights:

Dual Phase Synchronous LTC2208 16 Bit ADCs
1/2 W Ultra Linear Amplifier (250mW on 6M)
Large 115K (EP4CE115) Cyclone IV FPGA
Supports 7 High performance Independent Receivers on a single ADC
Supports 2 Coherent Receivers using independent ADCs/antennas for beam forming/diversity
FPGA has enough space to add on multiple soft core processors for standalone operation
Onboard 128MB Flash
Onboard 32Mbit Synchronous RAM
