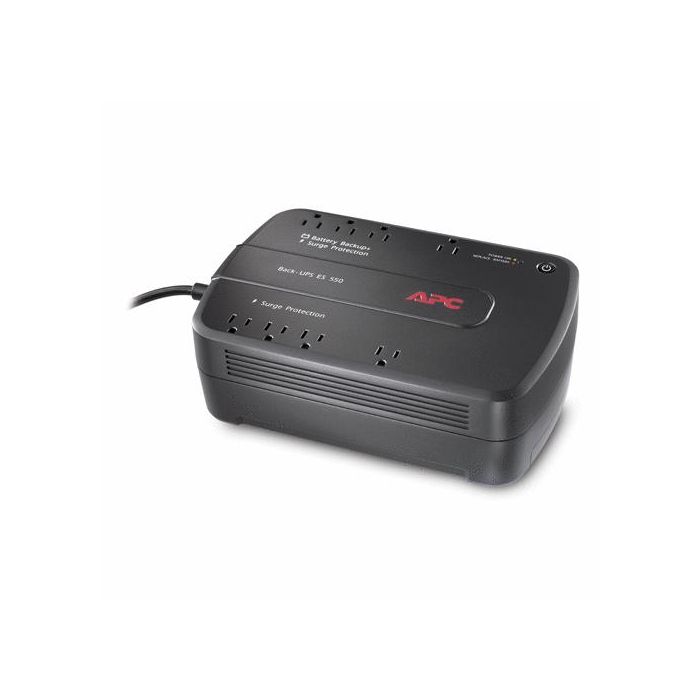

APC Back-UPS ES 550 - UPS ( external ) - AC 120 V - 330 Watt - 550 VA - USB - 8 output connector(s)
The Back-UPS ES offers affordable battery backup and surge protection for home computers. With enough power outlets to protect your entire system, built-in phone/fax/modem line (DSL compatible) protection and easy-to-install safe system shutdown software all make this power protection solution the best value for home and home office computers.
Specifications - Mfr Part Number: BE550G
- Output:
- Output Power Capacity: 330 Watts / 550 VA
- Max Configurable Power: 330 Watts / 550 VA
- Nominal Output Voltage: 120 V
- Output Frequency (sync to mains): 60 Hz
- Waveform Type: Stepped approximation to a sinewave
- Output Connections:
- 4x NEMA 5-15R (Battery Backup)
- 4x NEMA 5-15R (Surge Protection)
- Input:
- Nominal Input Voltage: 120 V
- Input Frequency: 60 Hz +/- 1 Hz
- Input Connections: NEMA 5-15P
- Cord Length: 6 feet / 1.83 meters
- Input voltage range for main operations: 88 ~ 139 V
- Batteries & Runtime:
- Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte - leakproof
- Typical recharge time: 24 hours
- Replacement battery cartridge: RBC35
- RBC Quantity: 1
- Typical Backup Time(at Half Load): 13.5 minutes (165 Watts)
- Typical Backup Time(at Full Load): 3.3 minutes (330 Watts)
- Runtime Chart: Back-UPS ES
- Communications & Management:
- Control panel: LED status display with On Line - On Battery - Replace Battery and Building Wiring Fault
- Audible Alarm: Alarm when on battery - distinctive low battery alarm - overload continuous tone alarm
- Surge Protection and Filtering:
- Surge energy rating: 365 Joules
- Filtering: Full time multi-pole noise filtering - 5% IEEE surge let-through - zero clamping response time - meets UL 1449
- Dataline protection: RJ-11 Modem/Fax/DSL protection (two wire single line)
- Online Thermal Dissipation: 16 BTU/hr
- Regulatory Approvals: cUL Listed, FCC Part 15 Class B, FCC Part 68, NOM, UL 1778, UL 497A, UL 498
- Color: Black
- Dimensions: 12 x 7.0 x 3.30 inch / 305 x 178 x 84 mm
- Weight: 13 lbs / 5.91 kg
