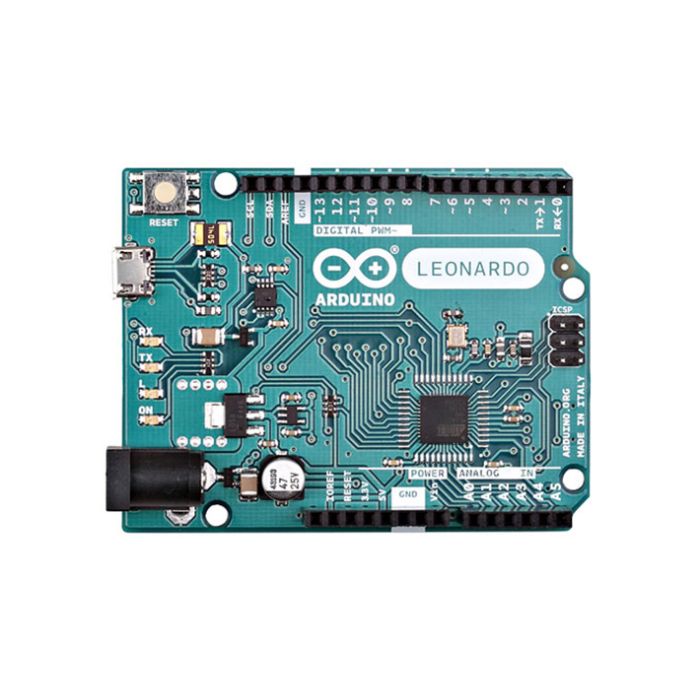

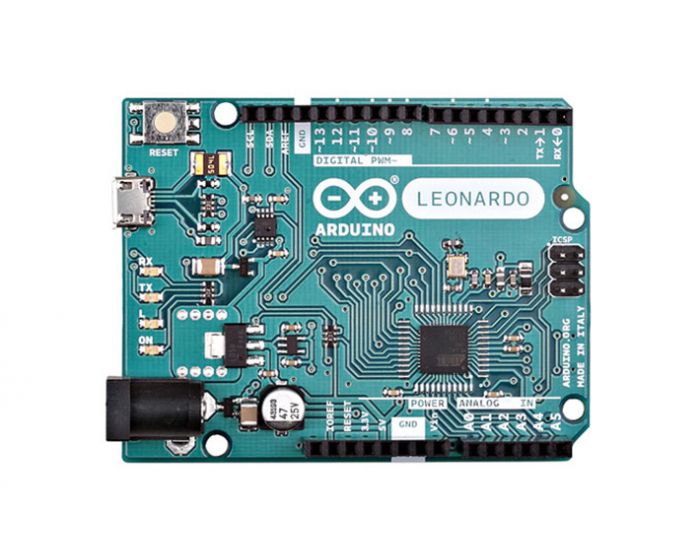

Arduino Leonardo with Headers

The Arduino Leonardo is a microcontroller board based on the ATmega32u4 (datasheet). It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The Leonardo differs from all preceding boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.

Features:

  • Microcontroller: ATmega32u4
  • Operating Voltage: 5V
  • Input Voltage (recommended): 7-12V
  • Input Voltage (limits): 6-20V
  • Digital I/O Pins: 20
  • PWM Channels: 7
  • Analog Input Channels: 12
  • DC Current per I/O Pin: 40 mA
  • DC Current for 3.3V Pin: 50 mA
  • Flash Memory: 32 KB (ATmega32u4) of which 4 KB used by bootloader
  • SRAM: 2.5 KB (ATmega32u4)
  • EEPROM: 1 KB (ATmega32u4)
  • Clock Speed: 16 MHz
  • Microcontroller:   ATmega32U4
  • Operating Voltage:   5V
  • Input Voltage (Recommended):   7-12V
  • Input Voltage (limits):   6-20V
  • Digital I/O Pins:   20
  • PWM Channels:   7
  • Analog Input Channels:   12
  • DC Current per I/O Pin:   40 mA
  • DC Current for 3.3V Pin:   50 mA
  • Flash Memory:   32 KB (ATmega32u4) of which 4 KB used by bootloader
  • SRAM:   2.5 KB (ATmega32u4)
  • EEPROM:   1 KB (ATmega32u4)
  • Clock Speed:   16 MHz
  • Lengh:   68.6 mm
  • Width:   53.3 mm
  • Weight:   20 g
