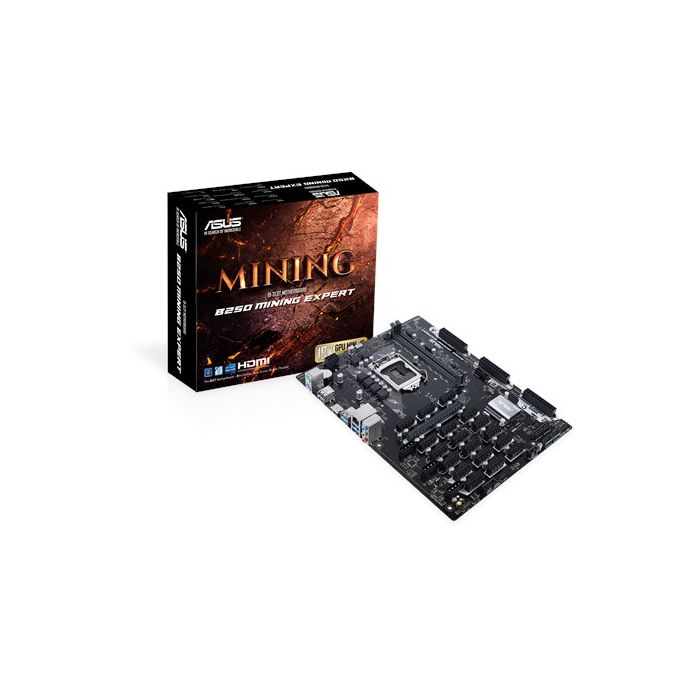

ASUS B250 MINING EXPERT ATX Motherboard

$99.29
ASUS B250 MINING EXPERT ATX Motherboard SKU: MB1231

$99.29

Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

ASUS B250 MINING EXPERT LGA1151 DDR4 HDMI B250 ATX Motherboard for Cryptocurrency Mining with 19 PCIe Slots and USB 3.1 Gen1

  • Maximize your mining connectivity and speed with 19x PCIe Slots, up to 32GB DDR4 2400 RAM, USB 3.1 Gen1 and Intel® Gigabit LAN
  • Triple-ATX12V Power Delivery separates 19x PCIe slots into 3 groups, each with a dedicated 24-pin for reliable power performance
  • 5X Protection III Hardware-level safeguards with SafeSlot Core, LANGuard and Overvoltage Protection provide component longevity and reliability
  • PCIe Slot State Detection provides a real time indication of the status of each GPU in your rig
  • Voltage-stabilization Capacitors provides steady voltage from your power supply units to your GPUs
  • Maximize your mining connectivity and speed with 19x PCIe Slots, up to 32GB DDR4 2400 RAM, USB 3.1 Gen1 and Intel® Gigabit LAN
  • Triple-ATX12V Power Delivery separates 19x PCIe slots into 3 groups, each with a dedicated 24-pin for reliable power performance
  • 5X Protection III Hardware-level safeguards with SafeSlot Core, LANGuard and Overvoltage Protection provide component longevity and reliability
  • PCIe Slot State Detection provides a real time indication of the status of each GPU in your rig
  • Voltage-stabilization Capacitors provides steady voltage from your power supply units to your GPUs
CPU Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset Intel® B250
Memory 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
Graphic Integrated Graphics Processor- Intel® HD Graphics support
VGA output support : HDMI port
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Maximum shared memory of 1024 MB
Expansion Slots 1 x PCIe x16 (x16 mode)
18 x PCIe x1
Storage 4 x SATA 6Gb/s port(s),
LAN Intel® I219V, 1 x Gigabit LAN Controller(s)
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
USB Ports Intel® B250 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 2 at mid-board)
Intel® B250 Chipset :
4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board)
Special Features ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
Back I/O Ports 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
3 x 4-pin AUXPWR Header
Accessories User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0, ACPI 6.0, ASUS EZ Flash 3, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE
Operating System Windows® 10 64-bit
Windows® 7 64-bit *1
Form Factor ATX Form Factor
ATX Form Factor  12 inch x 9.1 inch ( 30.5 cm x 23.1 cm )
Note 1.Windows® 7 64-bit is only supported when using 6th Generation Intel® Processors

2 x Serial ATA 6.0Gb/s cables
1 x I/O shield
1 x Support DVD
1 x User's manual
